    WF1560-19201080BD#0SP8-FC

    TFT 15.6" 1920x1080 LCD Panel, Interface eDP, High Brightness 800cd/m², Wide View Angle (IPS), Capacitive Touch Panel USB/option I2C interface (GG, IC ILI2511)
    Brand: Winstar
    Cod.: WF1560-19201080BD#0SP8-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €175,40
    €157,90
    €148,40

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €175,40 IVA esclusa
    i h

    RECOMMENDED ONLY AS SPARE PARTS

    For new projects please contact us at [email protected].



    DESCRIPTION

    WF1560-19201080BD#0SP8-FC is a 15.6-inch high resolution TFT LCD display module boasting a resolution of 1920x1080 pixels and PCAP touch functionality. This high resolution TFT LCD display module features a built-in TC2055G driver IC and supports eDP interface. With outline dimensions of 393.8 x 245.9 mm and an active area size of 344.16 x 193.59 mm, it utilizes IPS technology to deliver a wider viewing angle of 80 degrees in all directions (Left: 80 / Right: 80 / Up: 80 / Down: 80).

    With a high contrast ratio of 1,500:1 (typical value) and a brightness of 800 nits (typical value), this model ensures vivid and clear visuals, enhancing the user experience. Additionally, the module adopts a projected capacitive touch panel (PCAP) with ILI2511 IC, which supports USB and I2C interfaces and 10-point touch, further elevating its usability and functionality.

    Operating within a power voltage range of 3.0V to 3.6V (typical value: 3.3V), this module is designed to withstand various environmental conditions. Its operating temperature ranges from -20°C to +70°C, while the storage temperature extends from -30°C to +80°C, making it suitable for a wide range of applications. From industrial machinery and equipment to HMI (Human-Machine Interface) systems, POS (Point of Sale) terminals, and outdoor vending systems, this high resolution TFT LCD display module offers excellent performance and reliability.



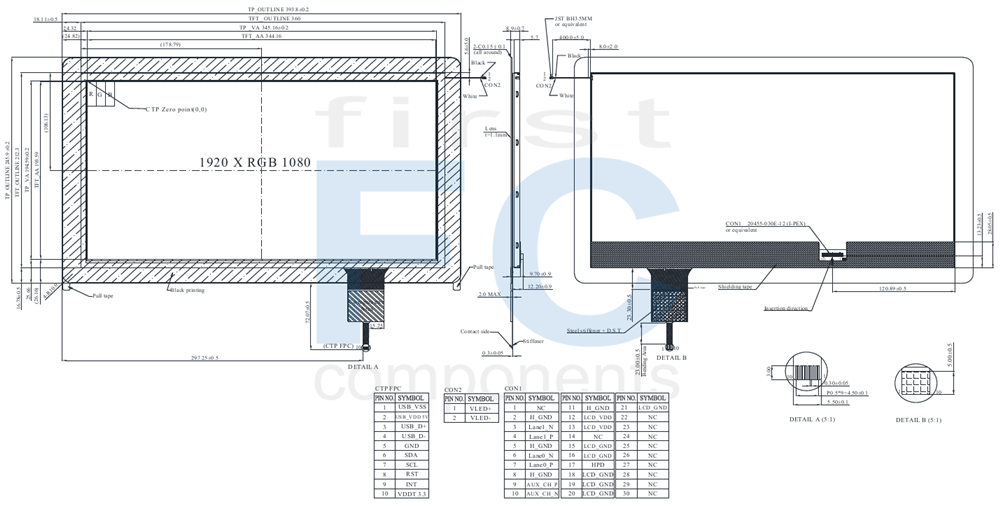

    DRAWING

    SPECIFICATIONS

    Interface

    LCM PIN Definition

    Pin No.Signal NameDescription
    1 NC Not Connect
    2 H_GND Ground
    3 Lane1_N Complement Signal Link Lane 1
    4 Lane1_P True Signal Line 1
    5 H_GND Ground
    6 Lane0_N Complement Signal Link Lane 0
    7 Lane0_P True Signal Line 0
    8 H_GND Ground
    9 AUX_CH_P True Signal Auxiliary Ch.
    10 AUX_CH_N Complement Signal Auxiliary Ch.
    11 H_GND Ground
    12-13 LCD_VDD LCD Logic and Driver Power
    14 NC Not Connect
    15-16 LCD_GND Ground
    17 HPD HPD Signal Pin
    18-21 LCD_GND Ground
    22-30 NC Not Connect


    Backlight PIN Definition

    Pin No.SymbolDescription
    1 VLED+ Black, LED_ Anode
    2 VLED- White, LED_ Cathode



    General Specifications

    ItemDimensionUnit
    Size 15.6 inch
    Dot Matrix 1920 x RGB x 1080 dots
    Module dimension 393.8(W) x 245.9(H) x 12.2(D) mm
    Active area 344.16 x 193.59 mm
    Pixel pitch 0.17925 (H) x 0.17925 (V) mm
    LCD type TFT, Normally Black, Transmissive
    Viewing Angle 80/80/80/80
    Backlight Type LED, Normally White
    TFT Driver IC TC2055G
    TFT Interface eDP
    PCAP IC ILI2511
    PCAP Interface USB (I2C available)
    PCAP FW Version 0x06.0x00.0x00.0x00.0xFF.0xFF.0xFF.0xFF
    PCAP Resolution 16384*16384
    Touch Panel Projected capacitive touch Panel (PCAP)
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    ParameterSymbolMin.Typ.Max.Units
    Logic/LCD Drive Voltage LCD_VDD 3.0 3.3 3.6 V
    LCD_VDD Current IDD - 200 300 mA
    LCD_VDD Current IDDMAX - - 400 mA
    LCD_VDD Power PDD - 0.66 1.32 W
    Inrush Current IRush - - 2 A
    Allowable Logic/LCD Drive Ripple Voltage LCD_VDDrp - - 100 mV
    Supply Voltage For Touch Logic USB_VDD 5V 4.75 5.0 5.25 V
    IUSB_VDD 5V - 95 150 mA
    VDDT 3.3 2.7 3.0 3.3 V
    IVDDT3.3 - 90 150 mA
    Specifiche di prodotto
    Size 15.6"
    Resolution 1920x1080
    Active Area (mm) 344.16x193.59
    Color Full Color
    Display Interface eDP
    Display IC No
    View Angle IPS
    Sunlight Readable High 601~1200cd/m²
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Data Connection eDP Connector
    Pin Nr. 30
    Pin Pitch 0.5mm
    Touch Panel IC Controller ILI2511
    Preferred - Not Preferred Not Preferred
    Date Notice Link/Description
    2025/11/06 EOL

    Discontinuation of Innolux Display for Winstar TFT WF1560-19201080B



    For more details, please contact us @ [email protected]

    *
    *
    *
    *
