    WF150-1024768AL#0P8-FC

    TFT 15" 1024x768 LCD Panel, Interface LVDS, Wide View Angle (IPS), 250cd/m², Capacitive touch panel USB/I2C interface (GG, ILI2511 IC, Black free board)
    Brand: Winstar
    Cod.: WF150-1024768AL#0P8-FC

    Kit accessori

    MOQ

    After sample PO, MP MOQ 1K

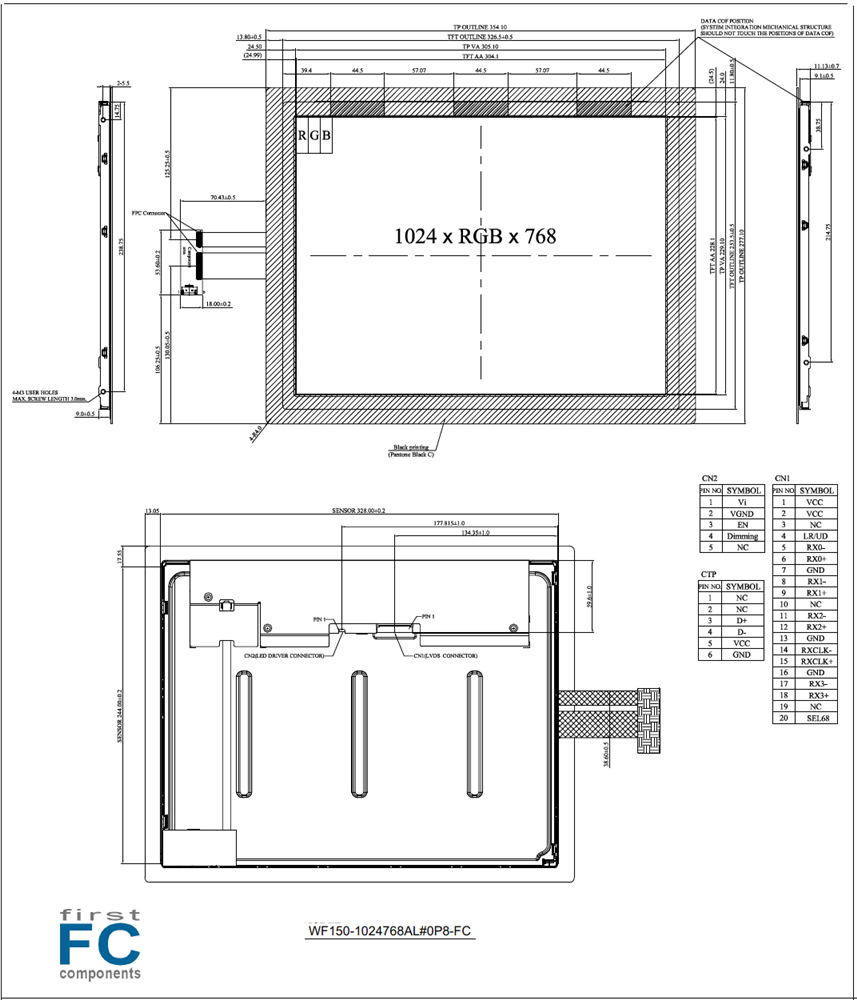

    DRAWING

    Specifiche di prodotto
    Size 15"
    Resolution 1024x768
    Active Area (mm) 304.10x253.50
    Color Full Color
    Display Interface LVDS
    Display IC No
    View Angle IPS
    Frame No
    Touch Panel Capacitive free board (USB/I2C)
    O. Temperature (°C) -20~70
    Data Connection LVDS Connector
    Pin Nr. 20
    Pin Pitch 1.25mm
    Touch Panel IC Controller ILI2511
    Preferred - Not Preferred Not Preferred
    *
    *
    *
    *
