    WF150-1024768AL#0P0-FC

    TFT 15" 1024x768 LCD Panel, Interface LVDS, 300cd/m², Wide View Angle (IPS), No touch
    Brand: Winstar
    Cod.: WF150-1024768AL#0P0-FC
    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €125,00
    €112,50
    €105,70

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €125,00 IVA esclusa
    i h



    DESCRIPTION

    WF150-1024768AL#0P0-FC is a 15"" IPS TFT LCD Display made of resolution 1024x768 (XGA) pixels. This TFT module adopted IPS technology which has the advantage of a wider viewing angle of Left:88 / Right:88 / Up:88 / Down:88 degrees. it supports LVDS interface, with brightness of 300 nits (typical value), contrast ratio of 2000:1 (typical value), anti-glare surface glass panel.

    The power supply voltage for LCM (VCC) of WF150-1024768AL#0P0-FC is from 3.0V to 3.6V (typical 3.3V). It can operate at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +70℃.

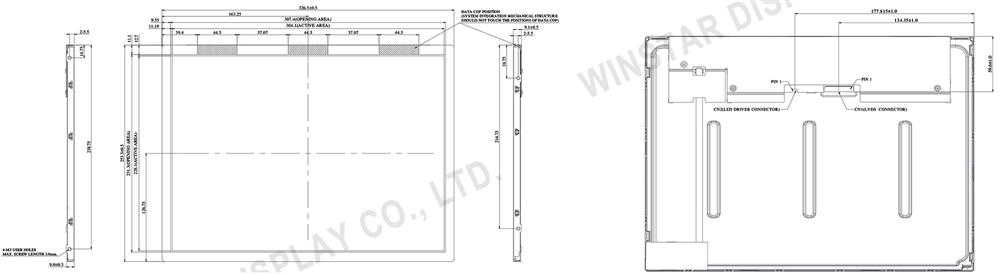

    DRAWING





    SPECIFICATIONS



    Interface

    LCM PIN Definition

    Pin No.SymbolFunctionPolarity
    1 VCC Power Supply +3.3V(typical)
    2 VCC Power Supply +3.3V(typical)
    3 NC No Conncetion (Reserve for INX test)
    4 LR/UD Reverse Scan Control
    H or NC = Normal Mode.
    L = Horizonta/ Vertical Reverse Scan.

    5 RX0- LVDS Differential Data Input Negative
    6 RX0+ LVDS Differential Data Input Positive
    7 GND Ground
    8 RX1- LVDS Differential Data Input Negative
    9 RX1+ LVDS Differential Data Input Positive
    10 NC No Conncetion (Reserve for INX test)
    11 RX2- LVDS Differential Data Input Negative
    12 RX2+ LVDS Differential Data Input Positive
    13 GND Ground
    14 RXCLK- LVDS Differential Data Input Negative
    15 RXCLK+ LVDS Differential Data Input Positive
    16 GND Ground
    17 RX3- LVDS Differential Data Input Negative
    18 RX3+ LVDS Differential Data Input Positive
    19 NC No Conncetion (Reserve for INX test)
    20 SEL68 LVDS 6/8 bit select function control,
    High → 6bit Input Mode
    Low or NC→ 8bit Input Mode




    General Specifications

    ItemDimensionUnit
    Size 15 inch
    Dot Matrix 1024 × RGB × 768 (TFT) dots
    Module dimension 326.5 × 253.5 × 9.1 mm
    Active Area 304.1 × 228.1 mm
    Dot pitch 0.297 × 0.297 mm
    LCD type TFT, Normally Black, Transmissive
    Viewing Angle 88/88/88/88
    Backlight Type LED, Normally White
    Interface LVDS
    Touch Panel Without Touch Panel
    Surface Anti-Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +70 ℃



    Electrical Characteristics

    ParameterSymbolValueUnit
    Min.Typ.Max.
    Power Supply Voltage VCC 3.0 3.3 3.6 V
    Ripple Voltage VRP - - 100 mVp-p
    Rush Current IRUSH - - (2.0) A
    Power Supply Current White lcc - (800) (960) mA
    Black - (670) (800) mA
    LVDS differential input voltage Vid 200 - 600 mV
    LVDS common input voltage Vic 1.0 1.2 1.4 V
    Differential Input Voltage for LVDS Receiver Threshold “H” Level VIH - - 100 mV
    “L” Level VIL -100 - - mV
    Terminating Resistor RT - 100 - Ohm





    Specifiche di prodotto
    Size 15"
    Resolution 1024x768
    Active Area (mm) 304.10x253.50
    Color Full Color
    Display Interface LVDS
    Display IC No
    View Angle IPS
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection LVDS Connector
    Pin Nr. 20
    Pin Pitch 1.25mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
