    WF101-1280800LM#0SP1-FC

    TFT 10.1" 1280x800 LCD Panel, Interface MIPI, High Brightness 750cd/m², Wide View Angle (IPS), Resistive touch panel
    Brand: Winstar
    Cod.: WF101-1280800LM#0SP1-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €104,10
    €93,70
    €88,10

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €104,10 IVA esclusa
    i h

    DESCRIPTION

    WF101-1280800LM#0SP1-FC is a 10.1” color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 10.1 inch diagonally measured active display area with HD (1280 horizontal by 800 vertical pixel) resolution.

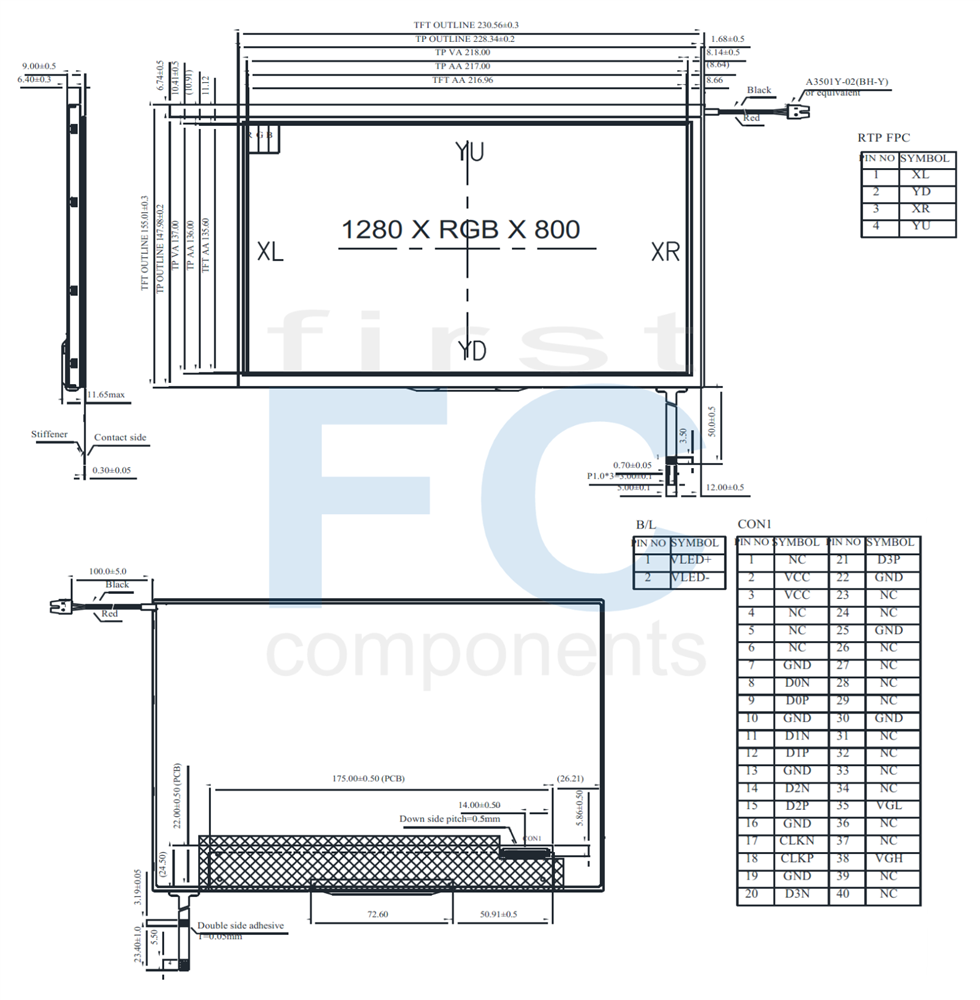

    DRAWING





    SPECIFICATIONS

    Interface

    LCM PIN Definition

    Pin No.SymbolI/OFunction
    1 NC - No connection
    2 VCC P Power Supply
    3 VCC P Power Supply
    4 NC - No connection
    5 NC - No connection
    6 NC - No connection
    7 GND P Ground
    8 D0N I MIPI data Input
    9 D0P I
    10 GND P Ground
    11 D1N I MIPI data Input
    12 D1P I
    13 GND P Ground
    14 D2N I MIPI data Input
    15 D2P I
    16 GND P Ground
    17 CLKN I MIPI clock Input
    18 CLKP I
    19 GND P Ground
    20 D3N I MIPI data Input
    21 D3P I
    22 GND P Ground
    23 NC -  No connection
    24 NC - No connection
    25 GND P Ground
    26 NC - No connection
    27 NC - No connection
    28 NC - No connection
    29 NC - No connection
    30 GND P Ground
    31 NC - No connection
    32 NC - No connection
    33 NC - No connection
    34 NC - No connection
    35 VGL P Connect to stabilizing capacitor between VSSA and VGL.
    36 NC - No connection
    37 NC - No connection
    38 VGH P Connect to stabilizing capacitor between VSSA and VGH.
    39 NC - No connection
    40 NC - No connection


    Backlight Driving Part

    Pin No.SymbolFunction
    1 VLED+ Red, LED_ Anode
    2 VLED- Black, LED_ Cathode



    General Specifications

    ItemDimensionUnit
    Screen Diagonal 10.1 inch
    Number of Pixels 1280 x 3(RGB) x 800 dots
    Module dimension 230.56 × 155.01 × 11.65 mm
    Active area 216.96 (H) × 135.6(V) mm
    Pixel pitch 0.1695 × 0.1695 mm
    Display Mode Normally Black , Transmissive
    Viewing Angle 80/80/80/80
    Pixel Arrangement R.G.B. Vertical Stripe
    TFT Drive IC EK79202D or Equivalent
    Backlight Type LED,Normally White
    Aspect Ratio 16:10
    TFT Interface 4-Lanes MIPI
    With/Without TP With RTP
    Surface Anti-Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    Typical Operation Conditions

    ItemSymbolValuesUnit
    MinTypMax
    Power Voltage VCC 3.0 3.3 3.5 V
    VGH 17.5 18.0 18.5 V
    VGL -11.5 -10.5 -10.0 V
    VSP - 5.5 - V
    VSN - -5.5 - V


    Current Consumption

    ParameterSymbolValuesUnitRemark
    MinTypMax
    Current for Driver IGH - 7.7 - mA VGH= 18V
    IGL - 7.7 - mA VGL = -10.5V
    IVCC - 79 120 mA -
    Specifiche di prodotto
    Size 10.1"
    Resolution 1280x800
    Active Area (mm) 216.96x135.60
    Color Full Color
    Display Interface MIPI
    Display IC EK79202D
    View Angle IPS
    Sunlight Readable High 601~1200cd/m²
    Frame No
    Touch Panel Resistive
    O. Temperature (°C) -20~70
    Data Connection ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
