WF101-1280800LH#VSP3D-FC

TFT 10.1" 1280x800, HDMI / Raspberry Interface, High Brightness 900cd/m², Wide View Angle (IPS), Incl. 2 connectors, Capacitive touch panel Mouse mode (Updated Firmware) with USB interface (GG, GT928 IC), Suitable for Raspberry Pi 1~3 & Pi3B+ versions, (Optimized PCB - EMI Class B)

DESCRIPTION

WF101-1280800LH#VSP3D-FC is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 10.1 inch diagonally measured active display area with HD (1280 horizontal by 800 vertical pixel) resolution.


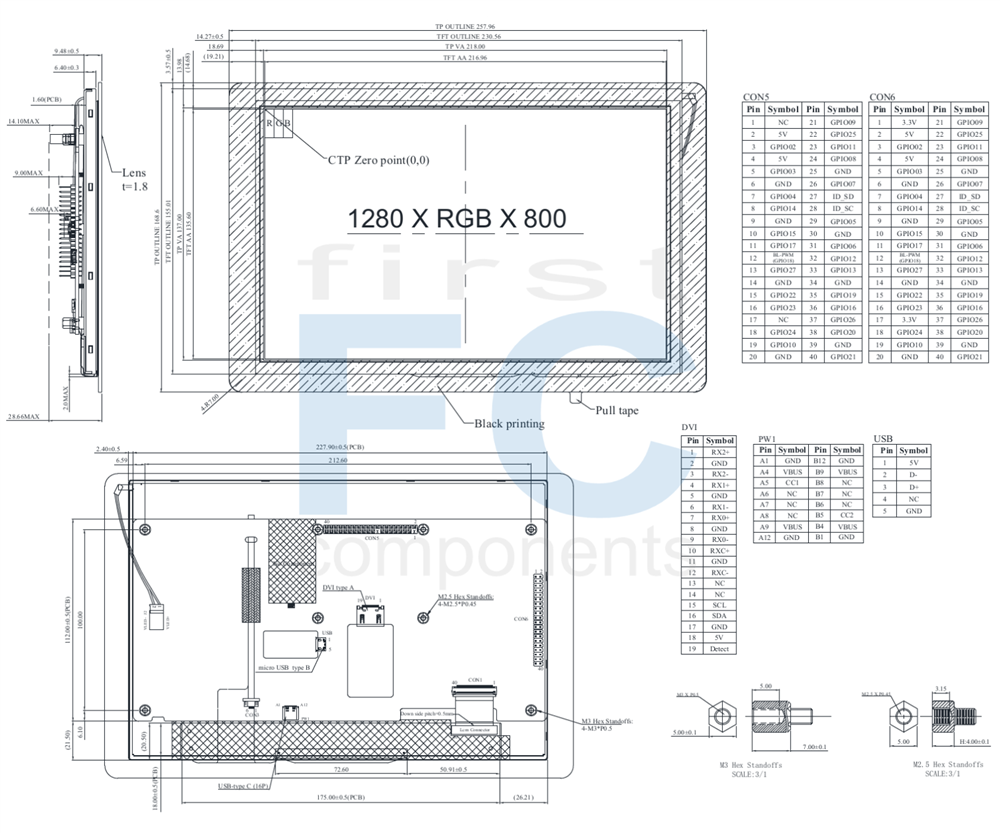

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Screen Diagonal 10.1 inch
Number of Pixels 1280 × 3(RGB) × 800 dots
Module dimension 257.96 × 168.6 × 28.66 mm
Active area 216.96 (H) × 135.6(V) mm
Pixel pitch 0.1695 × 0.1695 mm
Display Mode Normally Black, Transmissive
Viewing Angle 80/80/80/80
Pixel Arrangement R.G.B. Vertical Stripe
Backlight Type LED, Normally White
Aspect Ratio 16:10
Electrical Interface (Logic) HDMI (only for DVI)
CTPIC GT928 or Equivalent
CTP FW Version 80
CTP FW 10_1_Inch_Mouse_One_Finger_v4_00_20240216
CTP Interface USB
Touch Panel With CTP
Surface Glare
EMI level Class B limit 40dBuv/47dBuy



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD － 4.9 5 5.1 V
Supply Current For LCM IDD － － 1.7 2.6 A
LED life time － － 50000 － － Hr



Interface

CON6

Pin No.SymbolFunction
1 3.3V TFT Module Power limit can only output 3.3V,100mA
2 5V Raspberry Pi:Power 5V
3 GPIO02 Raspberry Pi:GPIO02
4 5V Raspberry Pi:Power 5V
5 GPIO03 Raspberry Pi:GPIO03
6 GND Raspberry Pi:GND
7 GPIO04 Raspberry Pi:GPIO04
8 GPIO14 Raspberry Pi:GPIO14
9 GND Raspberry Pi:GND
10 GPIO15 Raspberry Pi:GPIO15
11 GPIO17 Raspberry Pi:GPIO17
12 BL-PWM (GPIO18) Backlight Enable ,Active_L (Raspberry Pi:GPIO18)
13 GPIO27 Raspberry Pi:GPIO27
14 GND Raspberry Pi:GND
15 GPIO22 Raspberry Pi:GPIO22
16 GPIO23 Raspberry Pi:GPIO23
17 3.3V TFT Module Power limit can only output 3.3V,100mA
18 GPIO24 Raspberry Pi:GPIO24
19 GPIO10 Raspberry Pi:GPIO10
20 GND Raspberry Pi:GND
21 GPIO09 Raspberry Pi:GPIO09
22 GPIO25 Raspberry Pi:GPIO25
23 GPIO11 Raspberry Pi:GPIO11
24 GPIO08 Raspberry Pi:GPIO08
25 GND Raspberry Pi:GND
26 GPIO07 Raspberry Pi:GPIO07
27 ID_SD Raspberry Pi:ID_SD
28 ID_SC Raspberry Pi:ID_SC
29 GPIO05 Raspberry Pi:GPIO05
30 GND Raspberry Pi:GND
31 GPIO06 Raspberry Pi:GPIO06
32 GPIO12 Raspberry Pi:GPIO12
33 GPIO13 Raspberry Pi:GPIO13
34 GND Raspberry Pi:GND
35 GPIO19 Raspberry Pi:GPIO19
36 GPIO16 Raspberry Pi:GPIO16
37 GPIO26 Raspberry Pi:GPIO26
38 GPIO20 Raspberry Pi:GPIO20
39 GND Raspberry Pi:GND
40 GPIO21 Raspberry Pi:GPIO21


CON5

Pin No.SymbolFunction
1 NC No connection
2 5V Raspberry Pi:Power 5V
3 GPIO02 Raspberry Pi:GPIO02
4 5V Raspberry Pi:Power 5V
5 GPIO03 Raspberry Pi:GPIO03
6 GND Raspberry Pi:GND
7 GPIO04 Raspberry Pi:GPIO04
8 GPIO14 Raspberry Pi:GPIO14
9 GND Raspberry Pi:GND
10 GPIO15 Raspberry Pi:GPIO15
11 GPIO17 Raspberry Pi:GPIO17
12 BL-PWM (GPIO18) Backlight Enable ,Active_L (Raspberry Pi:GPIO18)
13 GPIO27 Raspberry Pi:GPIO27
14 GND Raspberry Pi:GND
15 GPIO22 Raspberry Pi:GPIO22
16 GPIO23 Raspberry Pi:GPIO23
17 NC No connection
18 GPIO24 Raspberry Pi:GPIO24
19 GPIO10 Raspberry Pi:GPIO10
20 GND Raspberry Pi:GND
21 GPIO09 Raspberry Pi:GPIO09
22 GPIO25 Raspberry Pi:GPIO25
23 GPIO11 Raspberry Pi:GPIO11
24 GPIO08 Raspberry Pi:GPIO08
25 GND Raspberry Pi:GND
26 GPIO07 Raspberry Pi:GPIO07
27 ID_SD Raspberry Pi:ID_SD
28 ID_SC Raspberry Pi:ID_SC
29 GPIO05 Raspberry Pi:GPIO05
30 GND Raspberry Pi:GND
31 GPIO06 Raspberry Pi:GPIO06
32 GPIO12 Raspberry Pi:GPIO12
33 GPIO13 Raspberry Pi:GPIO13
34 GND Raspberry Pi:GND
35 GPIO19 Raspberry Pi:GPIO19
36 GPIO16 Raspberry Pi:GPIO16
37 GPIO26 Raspberry Pi:GPIO26
38 GPIO20 Raspberry Pi:GPIO20
39 GND Raspberry Pi:GND
40 GPIO21 Raspberry Pi:GPIO21


USB

PinSymbolFunction
1 5V Power Supply (5V)
2 D- Data line -
3 D+ Data line +
4 NC No connection
5 GND Power Ground


PW1

PinSymbolFunction
A1 GND Power Ground
A4 VBUS Power 5V
A5 CC1 Configuration channel
A6 NC No connection
A7 NC No connection
A8 NC No connection
A9 VBUS Power 5V
A12 GND Power Ground
B12 GND Power Ground
B9 VBUS Power 5V
B8 NC No connection
B7 NC No connection
B6 NC No connection
B5 CC2 Configuration channel
B4 VBUS Power 5V
B1 GND Power Ground


DVI

PinSymbolI/OFunction
1 Rx2+ I Channel-2 positive receiver input; low-voltage signal differential- input pair.
2 GND P Ground
3 Rx2- I Channel-2 negative receiver input; low-voltage signal differential- input pair.
4 Rx1+ I Channel-1 positive receiver input; low-voltage signal differential- input pair.
5 GND P Ground
6 Rx1- I Channel-1 negative receiver input; low-voltage signal differential- input pair.
7 Rx0+ I Channel-0 positive receiver input; low-voltage signal differential- input pair.
8 GND P Ground
9 Rx0- I Channel-0 negative receiver input; low-voltage signal differential- input pair.
10 RxC+ I Clock positive receiver input; low-voltage signal differential- input pair.
11 GND P Ground
12 RxC- I Clock negative receiver input; low-voltage signal differential- input pair.
13-14 NC - No connection
15 SCL I/O DDC(Data Display Channel) Clock
16 SDA I/O DDC(Data Display Channel) Data
17 GND P Ground
18 5V P Power Supply
19 Detect I/O Hot plug detect
SKU: WF101-1280800LH#VSP3D-FC
Brand: Winstar
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€199,60
€179,70
€168,90

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€199,60 IVA esclusa

DESCRIPTION

WF101-1280800LH#VSP3D-FC is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 10.1 inch diagonally measured active display area with HD (1280 horizontal by 800 vertical pixel) resolution.


DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Screen Diagonal 10.1 inch
Number of Pixels 1280 × 3(RGB) × 800 dots
Module dimension 257.96 × 168.6 × 28.66 mm
Active area 216.96 (H) × 135.6(V) mm
Pixel pitch 0.1695 × 0.1695 mm
Display Mode Normally Black, Transmissive
Viewing Angle 80/80/80/80
Pixel Arrangement R.G.B. Vertical Stripe
Backlight Type LED, Normally White
Aspect Ratio 16:10
Electrical Interface (Logic) HDMI (only for DVI)
CTPIC GT928 or Equivalent
CTP FW Version 80
CTP FW 10_1_Inch_Mouse_One_Finger_v4_00_20240216
CTP Interface USB
Touch Panel With CTP
Surface Glare
EMI level Class B limit 40dBuv/47dBuy



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD － 4.9 5 5.1 V
Supply Current For LCM IDD － － 1.7 2.6 A
LED life time － － 50000 － － Hr



Interface

CON6

Pin No.SymbolFunction
1 3.3V TFT Module Power limit can only output 3.3V,100mA
2 5V Raspberry Pi:Power 5V
3 GPIO02 Raspberry Pi:GPIO02
4 5V Raspberry Pi:Power 5V
5 GPIO03 Raspberry Pi:GPIO03
6 GND Raspberry Pi:GND
7 GPIO04 Raspberry Pi:GPIO04
8 GPIO14 Raspberry Pi:GPIO14
9 GND Raspberry Pi:GND
10 GPIO15 Raspberry Pi:GPIO15
11 GPIO17 Raspberry Pi:GPIO17
12 BL-PWM (GPIO18) Backlight Enable ,Active_L (Raspberry Pi:GPIO18)
13 GPIO27 Raspberry Pi:GPIO27
14 GND Raspberry Pi:GND
15 GPIO22 Raspberry Pi:GPIO22
16 GPIO23 Raspberry Pi:GPIO23
17 3.3V TFT Module Power limit can only output 3.3V,100mA
18 GPIO24 Raspberry Pi:GPIO24
19 GPIO10 Raspberry Pi:GPIO10
20 GND Raspberry Pi:GND
21 GPIO09 Raspberry Pi:GPIO09
22 GPIO25 Raspberry Pi:GPIO25
23 GPIO11 Raspberry Pi:GPIO11
24 GPIO08 Raspberry Pi:GPIO08
25 GND Raspberry Pi:GND
26 GPIO07 Raspberry Pi:GPIO07
27 ID_SD Raspberry Pi:ID_SD
28 ID_SC Raspberry Pi:ID_SC
29 GPIO05 Raspberry Pi:GPIO05
30 GND Raspberry Pi:GND
31 GPIO06 Raspberry Pi:GPIO06
32 GPIO12 Raspberry Pi:GPIO12
33 GPIO13 Raspberry Pi:GPIO13
34 GND Raspberry Pi:GND
35 GPIO19 Raspberry Pi:GPIO19
36 GPIO16 Raspberry Pi:GPIO16
37 GPIO26 Raspberry Pi:GPIO26
38 GPIO20 Raspberry Pi:GPIO20
39 GND Raspberry Pi:GND
40 GPIO21 Raspberry Pi:GPIO21


CON5

Pin No.SymbolFunction
1 NC No connection
2 5V Raspberry Pi:Power 5V
3 GPIO02 Raspberry Pi:GPIO02
4 5V Raspberry Pi:Power 5V
5 GPIO03 Raspberry Pi:GPIO03
6 GND Raspberry Pi:GND
7 GPIO04 Raspberry Pi:GPIO04
8 GPIO14 Raspberry Pi:GPIO14
9 GND Raspberry Pi:GND
10 GPIO15 Raspberry Pi:GPIO15
11 GPIO17 Raspberry Pi:GPIO17
12 BL-PWM (GPIO18) Backlight Enable ,Active_L (Raspberry Pi:GPIO18)
13 GPIO27 Raspberry Pi:GPIO27
14 GND Raspberry Pi:GND
15 GPIO22 Raspberry Pi:GPIO22
16 GPIO23 Raspberry Pi:GPIO23
17 NC No connection
18 GPIO24 Raspberry Pi:GPIO24
19 GPIO10 Raspberry Pi:GPIO10
20 GND Raspberry Pi:GND
21 GPIO09 Raspberry Pi:GPIO09
22 GPIO25 Raspberry Pi:GPIO25
23 GPIO11 Raspberry Pi:GPIO11
24 GPIO08 Raspberry Pi:GPIO08
25 GND Raspberry Pi:GND
26 GPIO07 Raspberry Pi:GPIO07
27 ID_SD Raspberry Pi:ID_SD
28 ID_SC Raspberry Pi:ID_SC
29 GPIO05 Raspberry Pi:GPIO05
30 GND Raspberry Pi:GND
31 GPIO06 Raspberry Pi:GPIO06
32 GPIO12 Raspberry Pi:GPIO12
33 GPIO13 Raspberry Pi:GPIO13
34 GND Raspberry Pi:GND
35 GPIO19 Raspberry Pi:GPIO19
36 GPIO16 Raspberry Pi:GPIO16
37 GPIO26 Raspberry Pi:GPIO26
38 GPIO20 Raspberry Pi:GPIO20
39 GND Raspberry Pi:GND
40 GPIO21 Raspberry Pi:GPIO21


USB

PinSymbolFunction
1 5V Power Supply (5V)
2 D- Data line -
3 D+ Data line +
4 NC No connection
5 GND Power Ground


PW1

PinSymbolFunction
A1 GND Power Ground
A4 VBUS Power 5V
A5 CC1 Configuration channel
A6 NC No connection
A7 NC No connection
A8 NC No connection
A9 VBUS Power 5V
A12 GND Power Ground
B12 GND Power Ground
B9 VBUS Power 5V
B8 NC No connection
B7 NC No connection
B6 NC No connection
B5 CC2 Configuration channel
B4 VBUS Power 5V
B1 GND Power Ground


DVI

PinSymbolI/OFunction
1 Rx2+ I Channel-2 positive receiver input; low-voltage signal differential- input pair.
2 GND P Ground
3 Rx2- I Channel-2 negative receiver input; low-voltage signal differential- input pair.
4 Rx1+ I Channel-1 positive receiver input; low-voltage signal differential- input pair.
5 GND P Ground
6 Rx1- I Channel-1 negative receiver input; low-voltage signal differential- input pair.
7 Rx0+ I Channel-0 positive receiver input; low-voltage signal differential- input pair.
8 GND P Ground
9 Rx0- I Channel-0 negative receiver input; low-voltage signal differential- input pair.
10 RxC+ I Clock positive receiver input; low-voltage signal differential- input pair.
11 GND P Ground
12 RxC- I Clock negative receiver input; low-voltage signal differential- input pair.
13-14 NC - No connection
15 SCL I/O DDC(Data Display Channel) Clock
16 SDA I/O DDC(Data Display Channel) Data
17 GND P Ground
18 5V P Power Supply
19 Detect I/O Hot plug detect
Specifiche di prodotto
Brand Winstar
Size 10.1"
Risoluzione 1280x800
Area Attiva (mm) 216.96x135.60
Colore Full Color
Interfaccia Display HDMI
Angolo Visione IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display HDMI Connector / Raspberry Connector
IC Controller Touch Panel GT928
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 10.1"
Risoluzione 1280x800
Area Attiva (mm) 216.96x135.60
Colore Full Color
Interfaccia Display HDMI
Angolo Visione IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display HDMI Connector / Raspberry Connector
IC Controller Touch Panel GT928
Preferred - Not Preferred Preferred
Prodotti correlati
Immagine di CABLE_USB-MICROUSB

CABLE_USB-MICROUSB

USB Male - MicroUSB Male Cable, Length 180cm
€19,60 IVA esclusa
Immagine di CABLE_USB90-MICROUSB_79

CABLE_USB90-MICROUSB_79

USB Male (RA) - MicroUSB Male Cable, Length 7.9cm
Da €3,40 IVA esclusa
Immagine di WWHDMI-00#

WWHDMI-00#

HDMI Connector for TFT module and Raspberry Pi 3B+ Version or below Version
Da €5,20 IVA esclusa
Immagine di CABLE_HDMI

CABLE_HDMI

HDMI Cable V1.4 High speed, with Ethernet, Male-male connectors, 1.5 meters
€21,20 IVA esclusa

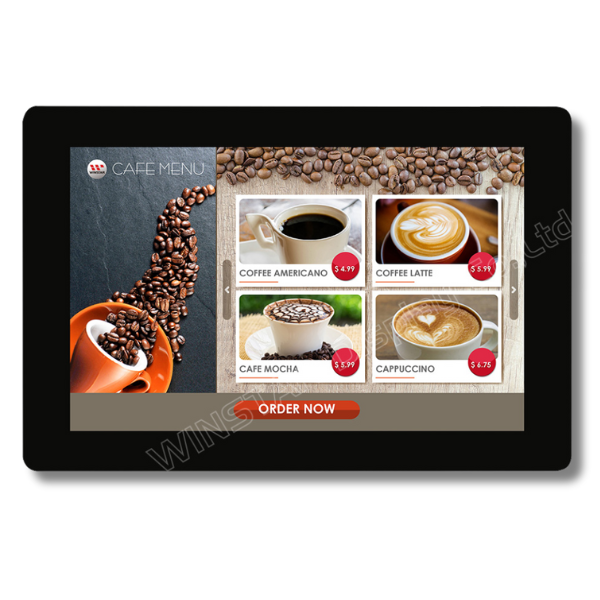

Immagine di WF101-1280800LH#VSP3B-FC

WF101-1280800LH#VSP3B-FC

TFT 10.1" 1280x800, HDMI / Raspberry Interface, High Brightness 900cd/m², Wide View Angle (IPS), Incl. 2 connectors, Capacitive touch panel Mouse mode (Updated Firmware) with USB interface (GG, GT928 IC), Suitable for Raspberry Pi 1~3 & Pi3B+ versions
Da €139,20 IVA esclusa
Categorie
Ultimi prodotti visti
Contatti
  • +39 0332 1888005
  • +39 0332 320856
  • Via 2 Giugno, 20 – 21022 Azzate (VA) Italy
  • Partita IVA IT02764420127
    REA di Varese 285686
    Cap.sociale interamente versato 100.000€
Informazioni
Prodotti in Vetrina
Copyright © 2026 FIRST Components. Tutti i diritti riservati
Powered by nopCommerce
Developed by Weblink
FIRST Components s.r.l.
Via 2 Giugno, 20 – 21022 Azzate (VA) Italy
