WF101-1280800KM#0P8-FC

TFT 10.1" 1280x800 LCD Panel, Interface MIPI, 350cd/m², Wide View Angle (IPS), Capacitive touch panel USB/I2C interface (GG, ILI2511 IC)

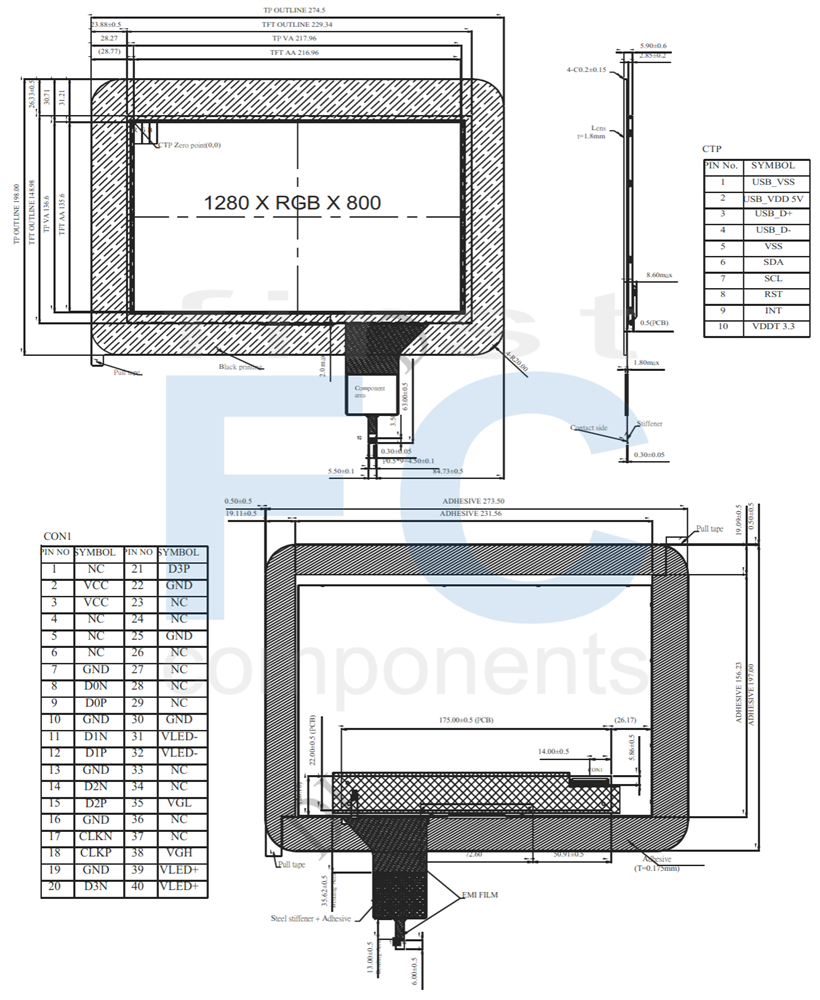

DRAWING

SPECIFICATIONS

Interface

Pin No.	Symbol	I/O	Function
1	NC	-	No connection
2	VCC	P	Power Supply
3	VCC	P	Power Supply
4	NC	-	No connection
5	NC	-	No connection
6	NC	-	No connection
7	GND	P	Ground
8	D0N	I	MIPI data Input
9	D0P	I	MIPI data Input
10	GND	P	Ground
11	D1N	I	MIPI data Input
12	D1P	I	MIPI data Input
13	GND	P	Ground
14	D2N	I	MIPI data Input
15	D2P	I	MIPI data Input
16	GND	P	Ground
17	CLKN	I	Mipi data Input
18	CLKP	I	Mipi data Input
19	GND	P	Ground
20	D3N	I	MIPI data Input
21	D3P	I	MIPI data Input
22	GND	P	Ground
23	NC	-	No connection
24	NC	-	No connection
25	GND	P	Ground
26	NC	-	No connection
27	NC	-	No connection
28	NC	-	No connection
29	NC	-	No connection
30	GND	P	Ground
31	VLED-	P	LED Cathode
32	VLED-	P	LED Cathode
33	NC	-	No connection
34	NC	-	No connection
35	VGL	P	Connect to stabilizing capacitor between VSSA and VGL.
36	NC	-	No connection
37	NC	-	No connection
38	VGH	P	Connect to stabilizing capacitor between VSSA and VGH.
39	VLED+	P	LED Anode
40	VLED+	P	LED Anode

General Specifications

Item	Dimension	Unit
Screen Diagonal	10.1	inch
Number of Pixels	1280 × 3(RGB) × 800	dots
Module dimension	274.5 × 198.0 × 5.90	mm
Active area	216.96 (H) × 135.6(V)	mm
Pixel pitch	0.1695 × 0.1695	mm
Display Mode	Normally Black, Transmissive
Viewing Angle	80/80/80/80
Pixel Arrangement	R.G.B. Vertical Stripe
TFT Drive IC	EK79202D or Equivalent
Backlight Type	LED, Normally White
Aspect Ratio	16:10
TFT Interface	4-Lanes MIPI
CTP FW Version	V 6.0.0.0.10. 1.60. 1
CTP IC	ILI2511 or equivalent
CTP Interface	USB (12C available)
CTP Resolution	16384*9600
With/Without TP	With CTP
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Typical Operation Condition

Item	Symbol	Values			Unit
Item	Symbol	Min.	Typ.	MAX.	Unit
Power voltage	VCC	3.0	3.3	3.5	V
	VGH	17.5	18	18.5	V
	VGL	-11.5	-10.5	-10.0	V
	VSP	-	5.5	-	V
	VSN	-	-5.5	-	V
Supply Voltage For Touch Logic	USB_VDD 5V	4.4	5.0	5.5	V

SKU: WF101-1280800KM#0P8-FC

Brand: Winstar

Disponibile: No

Si tratta dela prima recensione per questo prodotto

Kit Accessori

FFC Cable
Display Connector
Touch-Panel Connector

Prezzi per quantità

Quantità

10+

Prezzo

€125,90

€119,70

€101,20

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€125,90 IVA esclusa

Overview
Specifiche
Download
Contattaci

DRAWING

SPECIFICATIONS

Interface

Pin No.	Symbol	I/O	Function
1	NC	-	No connection
2	VCC	P	Power Supply
3	VCC	P	Power Supply
4	NC	-	No connection
5	NC	-	No connection
6	NC	-	No connection
7	GND	P	Ground
8	D0N	I	MIPI data Input
9	D0P	I	MIPI data Input
10	GND	P	Ground
11	D1N	I	MIPI data Input
12	D1P	I	MIPI data Input
13	GND	P	Ground
14	D2N	I	MIPI data Input
15	D2P	I	MIPI data Input
16	GND	P	Ground
17	CLKN	I	Mipi data Input
18	CLKP	I	Mipi data Input
19	GND	P	Ground
20	D3N	I	MIPI data Input
21	D3P	I	MIPI data Input
22	GND	P	Ground
23	NC	-	No connection
24	NC	-	No connection
25	GND	P	Ground
26	NC	-	No connection
27	NC	-	No connection
28	NC	-	No connection
29	NC	-	No connection
30	GND	P	Ground
31	VLED-	P	LED Cathode
32	VLED-	P	LED Cathode
33	NC	-	No connection
34	NC	-	No connection
35	VGL	P	Connect to stabilizing capacitor between VSSA and VGL.
36	NC	-	No connection
37	NC	-	No connection
38	VGH	P	Connect to stabilizing capacitor between VSSA and VGH.
39	VLED+	P	LED Anode
40	VLED+	P	LED Anode

General Specifications

Item	Dimension	Unit
Screen Diagonal	10.1	inch
Number of Pixels	1280 × 3(RGB) × 800	dots
Module dimension	274.5 × 198.0 × 5.90	mm
Active area	216.96 (H) × 135.6(V)	mm
Pixel pitch	0.1695 × 0.1695	mm
Display Mode	Normally Black, Transmissive
Viewing Angle	80/80/80/80
Pixel Arrangement	R.G.B. Vertical Stripe
TFT Drive IC	EK79202D or Equivalent
Backlight Type	LED, Normally White
Aspect Ratio	16:10
TFT Interface	4-Lanes MIPI
CTP FW Version	V 6.0.0.0.10. 1.60. 1
CTP IC	ILI2511 or equivalent
CTP Interface	USB (12C available)
CTP Resolution	16384*9600
With/Without TP	With CTP
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Typical Operation Condition

Item	Symbol	Values			Unit
Item	Symbol	Min.	Typ.	MAX.	Unit
Power voltage	VCC	3.0	3.3	3.5	V
	VGH	17.5	18	18.5	V
	VGL	-11.5	-10.5	-10.0	V
	VSP	-	5.5	-	V
	VSN	-	-5.5	-	V
Supply Voltage For Touch Logic	USB_VDD 5V	4.4	5.0	5.5	V

Specifiche di prodotto

Brand	Winstar
Size	10.1"
Risoluzione	1280x800
Area Attiva (mm)	216.96x135.60
Colore	Full Color
Interfaccia Display	MIPI
Display IC	EK79202D
Angolo Visione	IPS
Frame	No
Touch Panel	Capacitive
Temperatura O. (°C)	-20~70
Connessione Display	ZIF Connector
Nr. Pin	40
Passo Pin	0.5mm
IC Controller Touch Panel	ILI2511
Preferred - Not Preferred	Preferred
