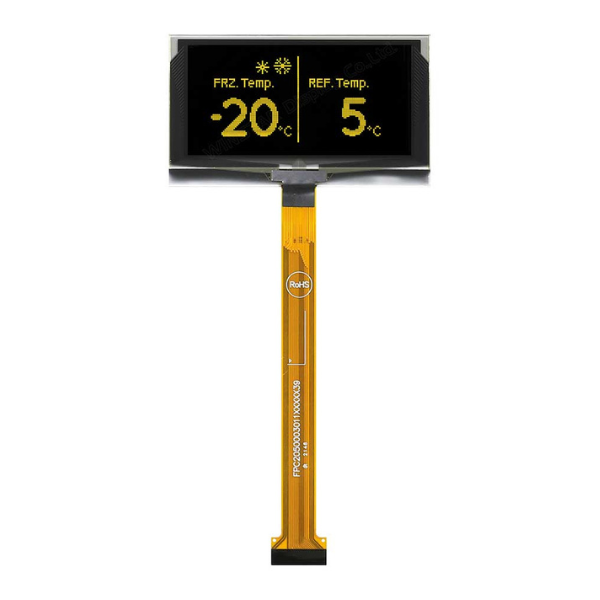

WEO12864L#AMP3N00G00-FC

PMOLED 2.7" Graphic 128x64, Yellow color, COG, 3V, Interface 6800,8080,SPI,I2C, SH1116 IC, Glare (30pins)

DESCRIPTION

WEO12864x#AMxxxxxxxx-FC is a 2.7-inch COG 128x64 graphic OLED display. This module is built-in with SH1106 IC; it can be communicated via I2C, 4-wire SPI serial or 6800, 8080 parallel interface and, its 10,000:1 high contrast ratio makes the display image more clear. The supply voltage of logic is 1.65 V~ 3.3 V (typical value 3V), supply voltage for display is 6.4V~ 13.5V (typical value 13V), 1/64 driving duty.

This module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.  2.7-inch OLED is very suitable for smart home applications, hi-tech equipment, meter equipment, industrial control systems, medical instruments, IoT systems...etc. WEO12864x#AMxxxxxxxx-FC series has different ZIF FPC; currently, we provide 22 pins, 24 pins, 30 pins, and 31 pins for options; if customs require custom FPC, welcome to contact us.

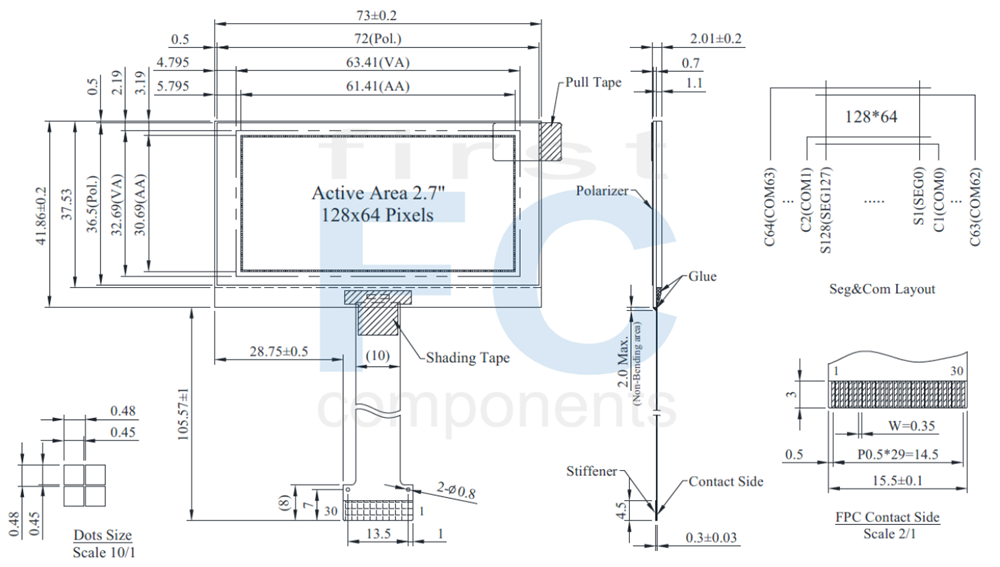

DRAWING

128x64 Graphic 2.7-inch COG OLED Display Module - WEO012864AM
SKU: WEO12864L#AMP3N00G00-FC
Brand: Winstar
Disponibile: No
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€23,80
€19,10
€18,30

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€23,80 IVA esclusa

DESCRIPTION

WEO12864x#AMxxxxxxxx-FC is a 2.7-inch COG 128x64 graphic OLED display. This module is built-in with SH1106 IC; it can be communicated via I2C, 4-wire SPI serial or 6800, 8080 parallel interface and, its 10,000:1 high contrast ratio makes the display image more clear. The supply voltage of logic is 1.65 V~ 3.3 V (typical value 3V), supply voltage for display is 6.4V~ 13.5V (typical value 13V), 1/64 driving duty.

This module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.  2.7-inch OLED is very suitable for smart home applications, hi-tech equipment, meter equipment, industrial control systems, medical instruments, IoT systems...etc. WEO12864x#AMxxxxxxxx-FC series has different ZIF FPC; currently, we provide 22 pins, 24 pins, 30 pins, and 31 pins for options; if customs require custom FPC, welcome to contact us.



DRAWING

128x64 Graphic 2.7-inch COG OLED Display Module - WEO012864AM
Specifiche di prodotto
Brand Winstar
Size 2.7"
Risoluzione 128x64
Area Attiva (mm) 61.41x30.69
Dot Size 0.45x0.45
Polarizzatore Glare
Colore Yellow
Alimentazione 3V
Interfaccia Display 6800/8080/SPI/I2C
Display IC SH1116
Struttura Costruttiva COG
Frame No
Touch Panel No touch
Temperatura O. (°C) -40~80
Connessione Display FPC for ZIF Connector
Nr. Pin 30
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
