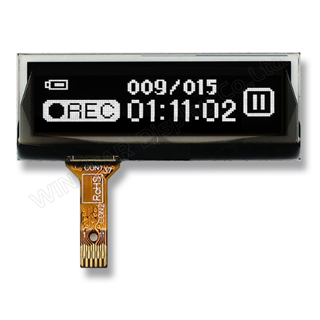

    WEO12840W#AA3N00000-FC

    PMOLED 1.3" Graphic 128x40, White color, COG, 3.3V, Interface SPI,I2C, Anti-glare (Alternative for FUTABA ELW1301AA)
    Brand: Winstar
    Cod.: WEO12840W#AA3N00000-FC
    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €7,30
    €6,60
    €6,20
    €6,10

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €7,30 IVA esclusa
    i h

    DESCRIPTION

    The WEO12840W#AA3N00000-FC 1.3" OLED display is a high-performance graphical module, ideal for applications such as gaming keyboards and networking equipment. Featuring a 128x40 resolution, this compact display offers exceptional clarity and vibrant visuals, making it the perfect choice for devices that require small, high-quality screens. With a contrast ratio of up to 10,000:1, it ensures sharp text and images.

    This 1.3" OLED display utilizes a COG (Chip-on-Glass) structure, offering a compact and efficient form factor ideal for space-constrained applications. The flexible FPC (Flexible Printed Circuit) is offset slightly to the left, while the IC is positioned centrally on the module. This design ensures the module's compactness and facilitates flexible integration into various hardware configurations. Powered by the SH1106G-0E controller IC, the module offers both SPI and I2C interface options and is available with polarizer and non-polarizer options, allowing you to select the most suitable one for your specific needs.

    With an impressive operating temperature range of -40°C to +80°C, the WEO12840W#AA3N00000-FC OLED display is designed for reliable performance in harsh environments. Its small size, lightweight design, and exceptional clarity make it an ideal solution for gaming peripherals, networking equipment, and other devices requiring high-quality, compact displays.

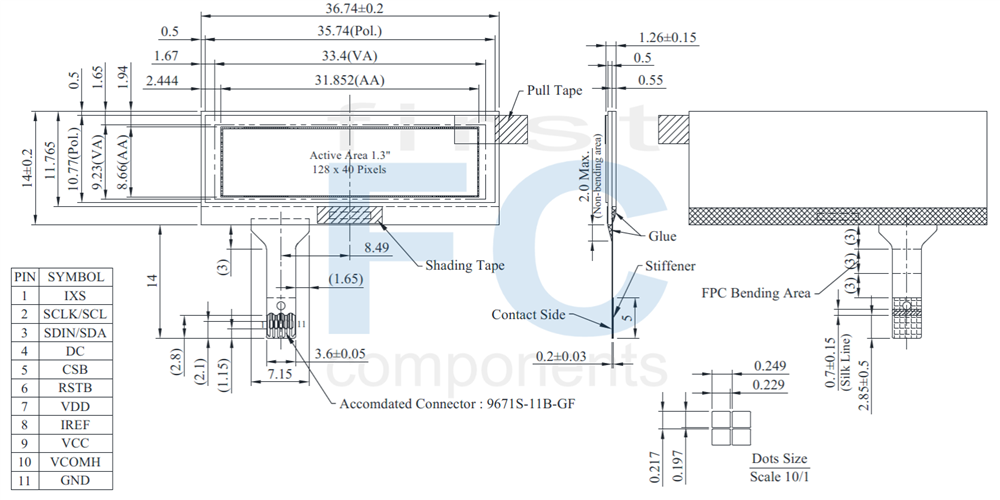

    DRAWING



    SPECIFICATIONS

    General Specification

    ItemDimensionUnit
    Dot Matrix 128 x 40 -
    Module dimension 36.74 × 14.00 × 1.26 mm
    Active Area 31.852 × 8.66 mm
    Pixel Size 0.229 × 0.197 mm
    Pixel Pitch 0.249 × 0.217 mm
    Display Mode Passive Matrix
    Display Color Monochrome
    Drive Duty 1/40 Duty
    Gray Scale 2 (White/Black)
    Dimmer Steps 256 step
    Controller IC SH1106G-0E
    Interface SPI/I2C
    Size 1.3 inch



    Absolute Maximum Ratings

    ParameterSymbolMinMaxUnit
    OLED Drive Power Supply Voltage VCC -0.3 14.5 V
    Logic Power Supply Voltage VDD -0.3 3.6 V
    Signal Input Voltage Vi -0.3 VDD+0.3 V
    Operating Temperature TOP -40 +80 °C
    Storage Temperature TSTG -40 +85 °C



    Electronical Characteristics

    DC Characteristics

    ItemSymbolConditionMinTypMaxUnit
    OLED Drive Power Supply Voltage VCC - 6.4 12.0 12.5 V
    Logic Power Supply Voltage VDD - 1.65 3.3 3.5 V
    Input High Volt. VIH - 0.8xVDD - VDD V
    Input Low Volt. VIL - 0 - 0.2xVDD V
    Output High Volt. VOH - 0.8xVDD - VDD V
    Output Low Volt. VOL - 0 - 0.2xVDD V
    Display 100% Pixel on ICC VCC=12V - 6.5 9.0 mA



    Interface Pin Function

    No.SymbolI/OFunction
    1 IXS I SPI/I2C Selection.
    2 SCLK/ SCL I Clock.
    3 SDIN/ SDA I Data.
    4 DC I Data/Command Selection.
    5 CSB I Chip Selection.
    6 RSTB I Reset.
    7 VDD P Logic Power Supply.
    8 IREF - Segment Current Reference.
    9 VCC P OLED Drive Power Supply.
    10 VCOMH O This is a pad for the voltage output high level for common signals. A capacitor should be connected between this pad and VSS.
    11 GND P GND.
    Specifiche di prodotto
    Size 1.3"
    Resolution 128x40
    Active Area (mm) 31.85x8.66
    Dot Size 0.22x0.19
    Polarizer Anti-glare
    Color White
    Power supply 3.3V
    Display Interface SPI/I2C
    Display IC SH1106G-0E
    Constructive Structure COG
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -40~80
    Data Connection FPC for ZIF Connector
    Pin Nr. 11
    Pin Pitch 0.3mm
    Preferred - Not Preferred Preferred
