    PMOLED 0.91" Graphic 128x32, Sky Blue color, COG, 3V, Interface SPI (FPC per Soldering), Thinner version, Glare
    Brand: Winstar
    Cod.: WEO12832S#D08-FC
    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €6,40
    €5,70
    €5,40
    €5,30

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €6,40 IVA esclusa
    i h

    DESCRIPTION

    The 0.91 inch is one of the most popular sizes of COG OLED for wearable displays which received 2017 Taiwan Excellence Award. Winstar Graphic COG 128x32 OLED is also built-in SSD1306 driver IC; it communicates via 4-wire serial SPI interface only. This controller's built-in voltage generation only need a single 3V power supply is needed. Operating temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃. These COG 0.91 inch OLED modules are ultra thin, lightweight and low power consumption which is great for handheld instruments, meters, smart grid, wearable device, E-cigarette, MP3, IoT, etc. One of the significant advantages of COG structure is the FPC usually is bendable comparing to TAB OLED since the FPC is flexible and there is no chip on the FPC. Therefore, the customers have less limitation to design the displays on their applications.

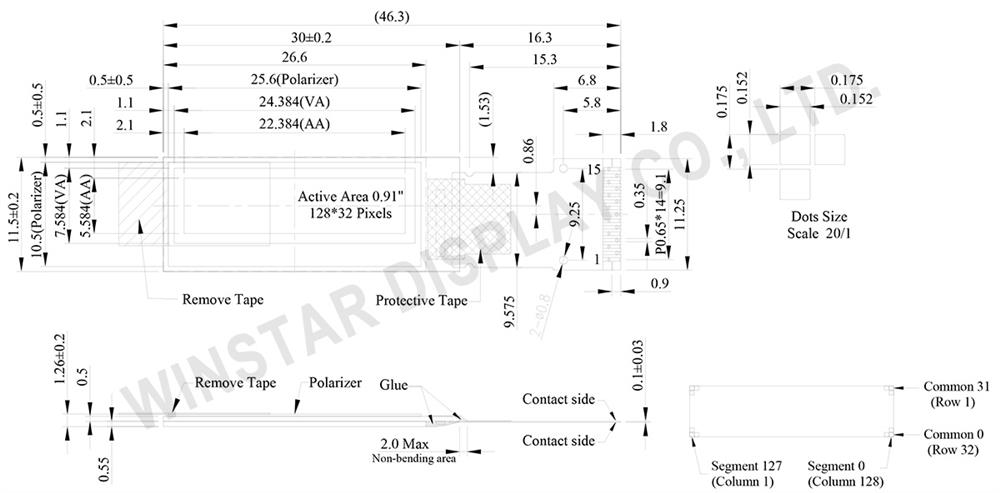

    DRAWING

    OLED 128x32, 128x32 OLED Display, 0.91 inch OLED - WEO012832D





    SPECIFICATIONS



    Interface Pin Function

    No.SymbolFunction
    1 C2P Positive Terminal of the Flying Inverting CapacitorNegative Terminal of the Flying Boost CapacitorThe charge-pump capacitors are required between the terminals. They must be floated when the converter is not used.
    2 C2N
    3 C1P
    4 C1N
    5 VBAT Power Supply for DC/DC Converter Circuit
    This is the power supply pin for the internal buffer of the DC/DC voltage converter. It must be connected to external source when the converter is used. It should be connected to VDD when the converter is not used.
    6 VSS Ground of Logic Circuit
    This is a ground pin. It acts as a reference for the logic pins. It must be connected to external ground.
    7 VDD Power Supply for Logic
    This is a voltage supply pin. It must be connected to external source.
    8 CS# Chip Select
    This pin is the chip select input. The chip is enabled for MCU communication only when CS# is pulled low.
    9 RES# Power Reset for Controller and Driver
    This pin is reset signal input. When the pin is low, initialization of the chip is executed.
    10 D/C# Data/Command Control
    This pin is Data/Command control pin..
    When the pin is pulled high and serial interface mode is selected, the data at SDIN is treated as data. When it is pulled low, the data at SDIN will be transferred to the command register. In I2C mode, this pin acts as SA0 for slave address selection.
    11 SCLK When serial mode is selected, D1 will be the serial data input SDIN and D0 will be the serial clock input SCLK.
    12 SDIN
    13 IREF Current Reference for Brightness Adjustment
    This pin is segment current reference pin. A resistor should be connected between this pin and VSS. Set the current lower than 12.5μA.
    14 VCOMH Voltage Output High Level for COM Signal
    This pin is the input pin for the voltage output high level for COM signals. A capacitor should be connected between this pin and VSS.
    15 VCC Power Supply for OEL Panel
    This is the most positive voltage supply pin of the chip. A stabilization capacitor should be connected between this pin and VSS when the converter is used. It must be connected to external source when the converter is not used.



    General Specification

    ItemDimensionUnit
    Dot Matrix 128 × 32 Dots
    Module dimension 30.0 × 11.5 × 1.26 mm
    Active Area 22.384 × 5.584 mm
    Pixel Size 0.152 × 0.152 mm
    Pixel Pitch 0.175 × 0.175 mm
    Display Mode Passive Matrix
    Display Color Monochrome
    Drive Duty 1/32 Duty
    IC SSD1306
    Interface 4-wire SPI
    Size 0.91 inch



    Absolute Maximum Ratings

    ParameterSymbolMinMaxUnit
    Supply Voltage for Logic VDD 0 4.0 V
    Supply Voltage for Display VCC 0 16.0 V
    Operating Temperature TOP -40 +80 °C
    Storage Temperature TSTG -40 +85 °C



    Electronical Characteristics

    DC Electrical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage for Logic VDD - 2.8 3.0 3.3 V
    Supply Voltage for Display VCC - 7 7.25 8 V
    Input High Volt. VIH - 0.8×VDD - VDDIO V
    Input Low Volt. VIL - 0 - 0.2×VDD V
    Output High Volt. VOH - 0.9×VDD - VDDIO V
    Output Low Volt. VOL - 0 - 0.1×VDD V
    Operating Current for VCC (VCC Supplied Externally) ICC Vcc =7.25V - 7 11 mA



    FPC options

    DrawingFPC LengthPINpitchZIF FPC or HOTBAR FPCInterfaceFPC No.Create Date
    FPC2065001501XXXXX00_WEO012832DLPP3N00000 17.06 15 0.65 HOTBAR FPC SPI FPC2065001501XXXXX00 20140827
    FPC2050001511XXXXX02_WEO012832DWPP3N00001 40.76 15 0.5 ZIF FPC SPI FPC2050001511XXXXX02 20150421
    FPC2062001401XXXXX02_WEO012832FLPP3N00000 11.26 14 0.62 HOTBAR FPC I2C FPC2062001401XXXXX02 20160106


    Specifiche di prodotto
    Size 0.91"
    Resolution 128x32
    Active Area (mm) 22.38x5.58
    Dot Size 0.15x0.15
    Polarizer Glare
    Color Sky Blue
    Power supply 3V
    Display Interface SPI
    Display IC SSD1306BZ
    Constructive Structure COG
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -40~80
    Data Connection FPC for Soldering
    Pin Nr. 15
    Pin Pitch 0.65mm
    Preferred - Not Preferred Not Preferred
    *
    *
    *
    *
