    WEH4002S#AP5N00100-FC

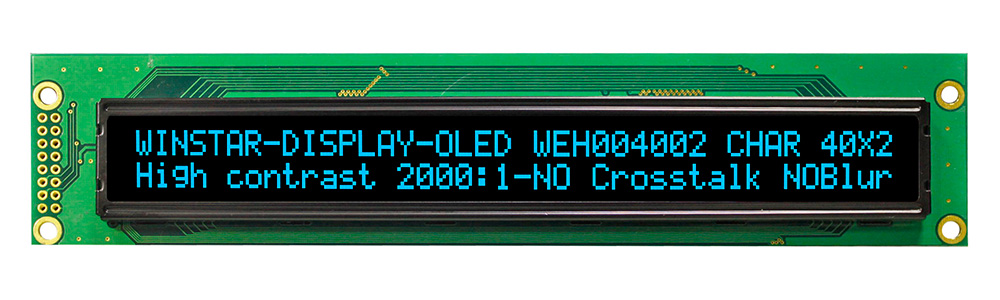

    PMOLED 5.85" 40x2, Sky Blue color, COB, 5V, Interface 6800, WS0010-TX IC, Frame, Glare
    Brand: Winstar
    Cod.: WEH4002S#AP5N00100-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €39,40
    €35,50
    €33,30

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €39,40 IVA esclusa
    i h

    DESCRIPTION

    Winstar 5.85 inch OLED which has the same outline size, VA size and pin out as Winstar STN LCD standard item of WH4002A. This OLED 40x2 display is built-in WS0010 IC which has different interfaces optional; it is default 6800, available options 8080 and SPI. The key features of OLED display are brighter display, much higher contrast display, wider viewing angles, that have faster response times, self-illuminating and lower current consumption. There is also a Grapgic equivalent type available with resolution 200x16pixels.



    DRAWING

    SPECIFICATIONS

    Interface Pin Function

    Pin No.SymbolDescription
    1 VSS Ground Pin
    2 VDD Voltage for logic
    3 NC No Connection
    4 RS Register Select
    5 R/W Read/Write Control
    6 E Chip Enable Signal
    7~14 DB0~DB7 Data Bus
    15~16 NC No Connection

    Mechanical Data

    ItemDimensionUnit
    Module dimension 182.0 × 38.5 mm
    View area 154.4 × 16.5 mm
    Active area 148.13 × 11.85 mm
    Dot pitch 0.62 × 0.70 mm
    Dot size 0.57 × 0.65 mm

    Electronical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage VDD --- 4.8 5.0 5.3 V



    Specifiche di prodotto
    Size 5.85"
    Resolution 40x2
    Active Area (mm) 148.13x11.85
    Dot Size 0.57x0.65
    Polarizer Glare
    Color Sky Blue
    Power supply 5V
    Display Interface 6800 (option 8080/SPI)
    Display IC WS0010-TX
    Constructive Structure COB
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -40~80
    Data Connection Soldering PAD
    Pin Nr. 16
    Pin Pitch 2.54mm
    Preferred - Not Preferred Not Preferred
    *
    *
    *
    *
