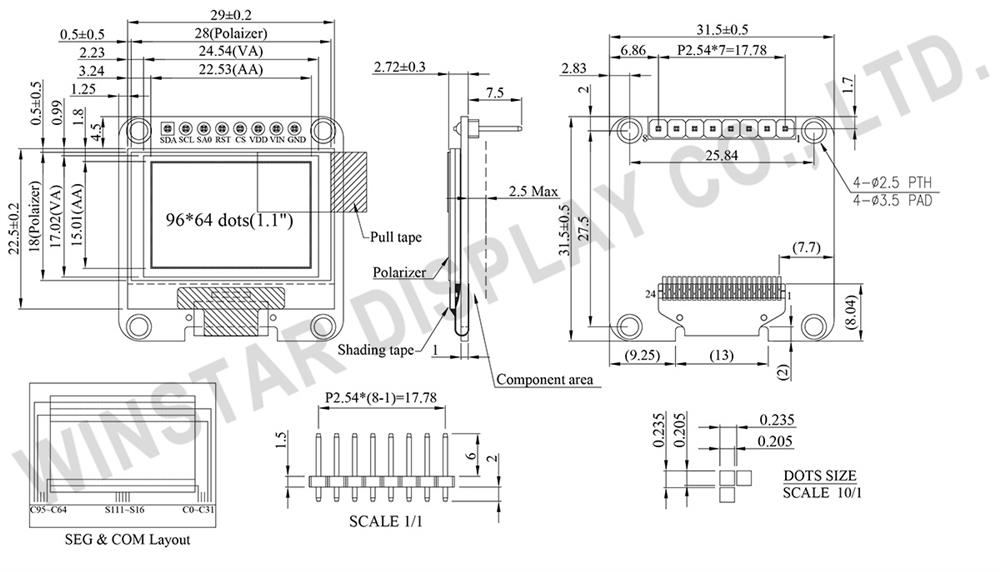

DRAWING

SPECIFICATIONS
Interface Pin Function
| No. | Symbol | Function |
| 1 |
SDA |
When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN. When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL. |
| 2 |
SCL |
| 3 |
SA0 |
In I2C mode, this pin acts as SA0 for slave address selection. When 3-wire serial interface is selected, this pin must be connected to VSS. |
| 4 |
RST |
This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin HIGH (i.e. connect to VDD) during normal operation. |
| 5 |
CS |
This pin is the chip select input. (active LOW). |
| 6 |
VDD |
3.0V Power supply pin for core logic operation. |
| 7 |
VIN |
5.0V Power supply pin for core logic operation. |
| 8 |
GND |
This is a ground pin. |
Mechanical Data
| Item | Dimension | Unit |
| Dot Matrix |
96 × 64 |
Dots |
| Module dimension |
31.5 × 31.5 × 2.72 |
mm |
| Active Area |
22.53 × 15.01 |
mm |
| Pixel Size |
0.205 × 0.205 |
mm |
| Pixel Pitch |
0.235 × 0.235 |
mm |
| Display Mode |
Passive Matrix |
| Display Color |
Monochrome |
| Gray scale |
4 bits |
| Drive Duty |
1/64 Duty |
| IC |
SSD1327 |
| Interface |
SPI ,Optional I2C |
| Size |
1.1 inch |
Electronical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
| Supply Voltage for Logic |
VDD |
- |
2.8 |
3.0 |
3.2 |
V |
| Supply Voltage for Logic |
VIN |
- |
4.8 |
5.0 |
5.2 |
V |
| Supply Voltage for Display |
VCC |
- |
7.5 |
8.0 |
8.5 |
V |
| Input High Volt. |
VIH |
- |
0.8×VDD |
- |
VDDIO |
V |
| Input Low Volt. |
VIL |
- |
0 |
- |
0.2×VDD |
V |
| Output High Volt. |
VOH |
- |
0.9×VDD |
- |
VDDIO |
V |
| Output Low Volt. |
VOL |
- |
0 |
- |
0.1×VDD |
V |
| 50% Check Board operating Current |
IDD |
VDD=3.0V |
- |
55 |
100 |
mA |
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Supply Voltage for Logic |
VDD |
1.65 |
3.30 |
V |
| Supply Voltage for Logic |
VIN |
4.0 |
6.0 |
V |
| Supply Voltage for Display |
VCC |
0 |
16.0 |
V |
| Operating Temperature |
TOP |
-40 |
80 |
°C |
| Storage Temperature |
TSTG |
-40 |
85 |
°C |
Specifiche di prodotto
|
Size
|
1.1" |
|
Resolution
|
96x64 |
|
Active Area (mm)
|
22.53x15.01 |
|
Dot Size
|
0.20x0.20 |
|
Polarizer
|
Anti-glare |
|
Color
|
White |
|
Power supply
|
3V |
|
Display Interface
|
SPI |
|
Display IC
|
SSD1327 |
|
Constructive Structure
|
COG + PCB |
|
Frame
|
Yes |
|
Touch Panel
|
No touch |
|
O. Temperature (°C)
|
-40~80 |
|
Data Connection
|
Pin Strip |
|
Pin Nr.
|
8 |
|
Pin Pitch
|
2.54mm |
|
Preferred - Not Preferred
|
Not Preferred |
