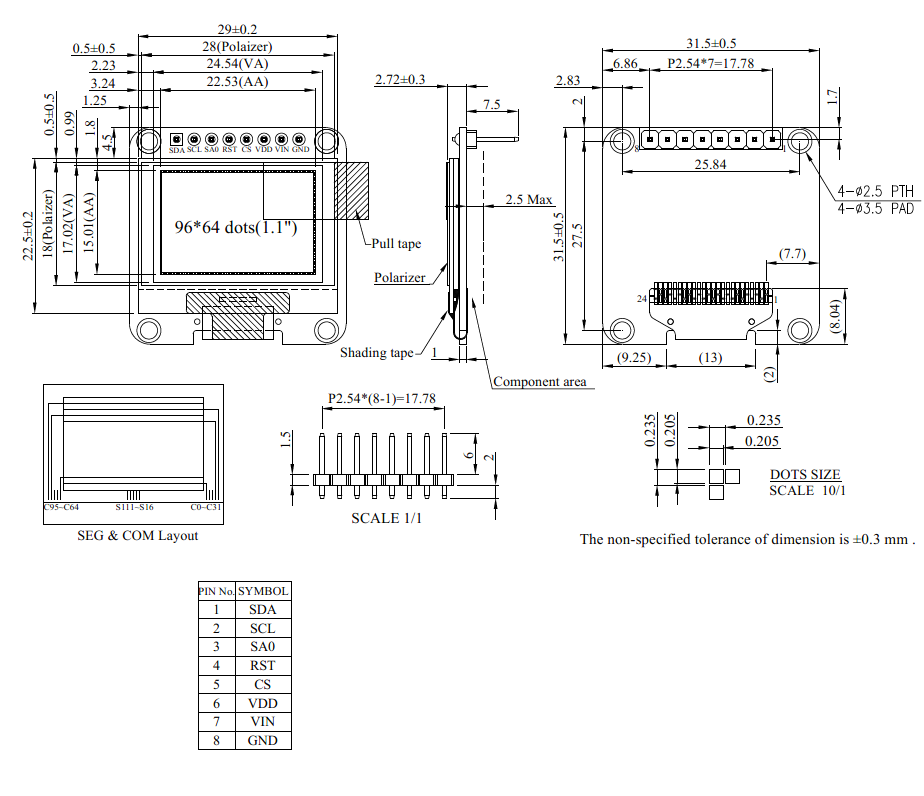

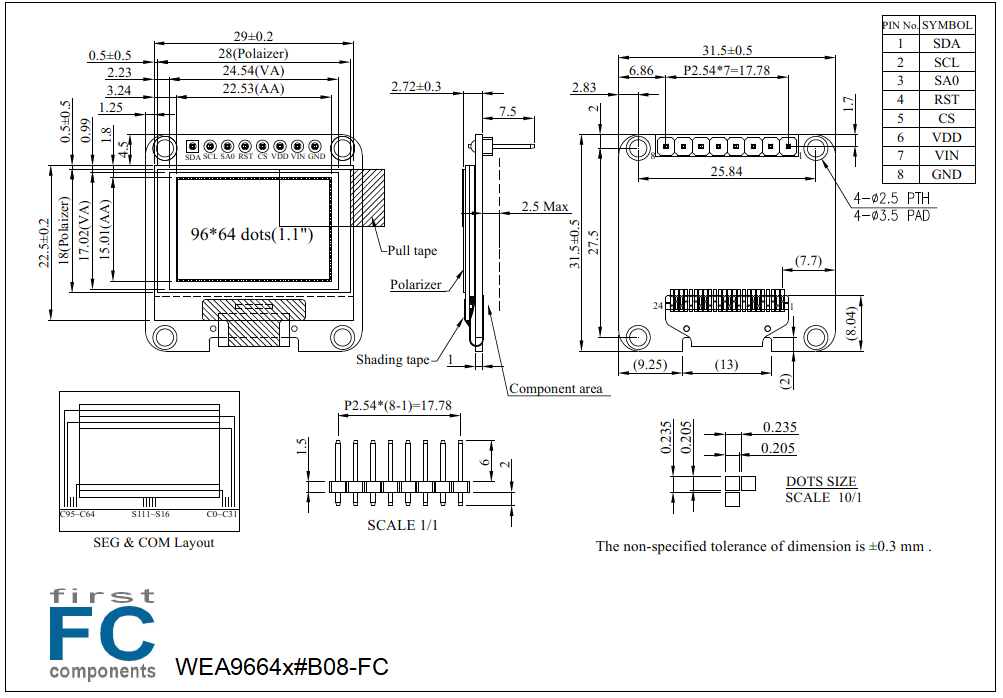

DRAWING

SPECIFICATIONS
Mechanical Data
| Item | Dimension | Unit |
| Dot Matrix |
96 × 64 |
Dots |
| Module dimension |
31.5 × 31.5 × 2.72 |
mm |
| Active Area |
22.53 × 15.01 |
mm |
| Pixel Size |
0.205 × 0.205 |
mm |
| Pixel Pitch |
0.235 × 0.235 |
mm |
| Display Mode |
Passive Matrix |
| Display Color |
Monochrome |
| Gray scale |
4 bits |
| Drive Duty |
1/64 Duty |
| IC |
SSD1327 |
| Interface |
I2C ,Optional SPI |
| Size |
1.1 inch |
Specifiche di prodotto
|
Size
|
1.1" |
|
Resolution
|
96x64 |
|
Active Area (mm)
|
22.53x15.01 |
|
Dot Size
|
0.20x0.20 |
|
Polarizer
|
Anti-glare |
|
Color
|
Yellow |
|
Power supply
|
3V |
|
Display Interface
|
I2C |
|
Display IC
|
SSD1327 |
|
Constructive Structure
|
COG + PCB |
|
Frame
|
Yes |
|
Touch Panel
|
No touch |
|
O. Temperature (°C)
|
-40~80 |
|
Data Connection
|
Pin Strip |
|
Pin Nr.
|
8 |
|
Pin Pitch
|
2.54mm |
|
Preferred - Not Preferred
|
Not Preferred |
