DESCRIPTION
Graphic COG with PCB OLED display model, which is made of 256x64 pixels, diagonal size 2.08 inch. It is built in with SSD1362 driver IC; it supports 4-Wire SPI interface, 4 bits grayscale image, 1/64 duty cycle. It has PCB outline size 70.0 x 22.0 mm with mounting holes on board and 7x1 metal pins on module.
It is supported by 3V ~5V, within DC-DC conversion circuit, display with 50% check board current is 90mA@3Vdd (typical value), 1/64 duty cycle. Operating temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.

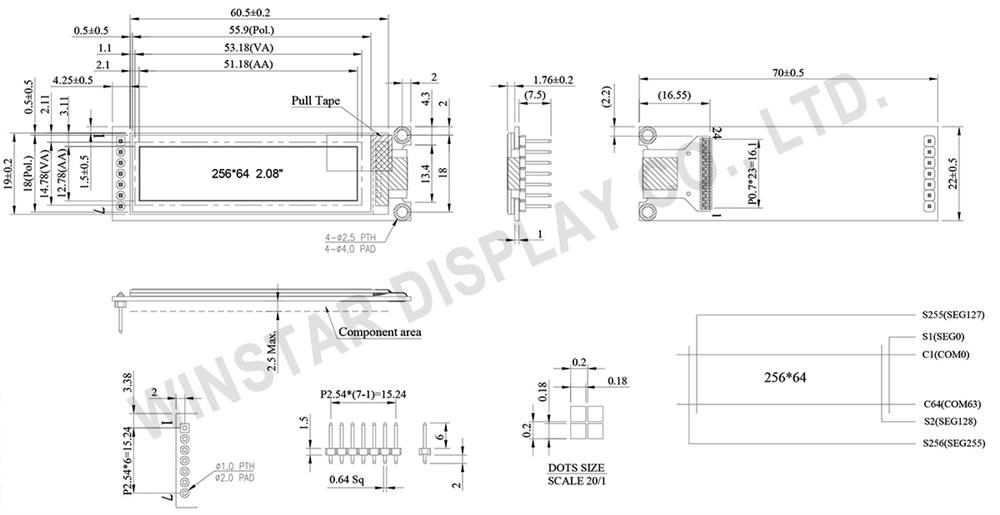

DRAWING

SPECIFICATIONS
Interface Pin Function
| No. | Symbol | Function |
| 1 |
GND |
Reserved pin. It should be connected to ground. |
| 2 |
VCC |
Power supply for panel driving voltage. This is also the most positive power voltage supply pin. It is supplied by external high voltage source. |
| 3 |
D0 |
These pins are bi-directional data bus connecting to the MCU data bus. Unused pins are recommended to tie LOW. When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SID. |
| 4 |
D1 |
| 5 |
RES# |
This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin pull HIGH during normal operation. |
| 6 |
D/C# |
This pin is Data/Command control pin connecting to the MCU. When the pin is pulled HIGH, the data at D[1:0] will be interpreted as data. When the pin is pulled LOW, the data at D[1:0] will be transferred to a command register. |
| 7 |
CS# |
This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW). |
Mechanical Data
| Item | Dimension | Unit |
| Dot Matrix |
256 x 64 Dots |
- |
| Module dimension |
70.0 x 22.0 x 1.71 |
mm |
| Active Area |
51.18 x 12.78 |
mm |
| Pixel Size |
0.18 x 0.18 |
mm |
| Pixel Pitch |
0.2 x 0.2 |
mm |
| Display Mode |
Passive Matrix |
| Display Color |
Monochrome |
| Drive Duty |
1/64 Duty |
| Gray Scale |
4 Bits |
| IC |
SSD1362 |
| Interface |
SPI |
| Size |
2.08 inch |
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Supply Voltage |
VCC |
1.65 |
5.5 |
V |
| Operating Temperature |
TOP |
-40 |
+80 |
°C |
| Storage Temperature |
TSTG |
-40 |
+85 |
°C |
Electronical Characteristics
DC Electrical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
| Supply Voltage |
VCC |
- |
2.8 |
3.3 |
5.2 |
V |
| Input High Volt. |
VIH |
- |
0.8×VCC |
- |
VCC |
V |
| Input Low Volt. |
VIL |
- |
0 |
- |
0.2×VCC |
V |
| Output High Volt. |
VOH |
- |
0.9×VCC |
- |
VCC |
V |
| Output Low Volt. |
VOL |
- |
0 |
- |
0.1×VCC |
V |
| 50% Check Board operating Current |
ICC |
VCC=3.3V |
- |
90 |
135 |
mA |
Specifiche di prodotto
|
Size
|
2.08" |
|
Resolution
|
256x64 |
|
Active Area (mm)
|
51.18x12.78 |
|
Dot Size
|
0.18x0.18 |
|
Polarizer
|
Anti-glare |
|
Color
|
Yellow |
|
Power supply
|
3~5V |
|
Display Interface
|
SPI |
|
Display IC
|
SSD1362 |
|
Constructive Structure
|
COG + PCB |
|
Frame
|
Yes |
|
Touch Panel
|
No touch |
|
O. Temperature (°C)
|
-40~80 |
|
Data Connection
|
Pin Strip |
|
Pin Nr.
|
7 |
|
Pin Pitch
|
2.54mm |
|
Preferred - Not Preferred
|
Preferred |
