    PMOLED 0.96" Graphic 128x64, Yellow, COG + PCB, 3V, Interface I2C (8 Pin), Glare
    Brand: Winstar
    Cod.: WEA12864L#D00-FC
    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €10,20
    €9,20
    €8,60
    €8,40

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €10,20 IVA esclusa
    i h

    DESCRIPTION

    Winstar OLED 12864, SSD1306 OLED Display

    OLED display module made of 128x64 pixels, diagonal size 0.96 inch. This module is built in with SSD1306 IC, it supports I2C (default), SPI interface optional, VCC 3V /5V, I/O level 5V to 3V, with conversion circuit, 1/64 duty cycle. PCB outline size 38.0x28.5x2.37 mm with mounting holes on board and 8 metal pins on module.

    This 128x64 SSD1306 OLED display module is suitable for smart control, industrial control for heater, smart home application, medical device, etc. Operating temperatures from -40℃ to +80℃; torage temperatures range from -40℃ to +85℃.

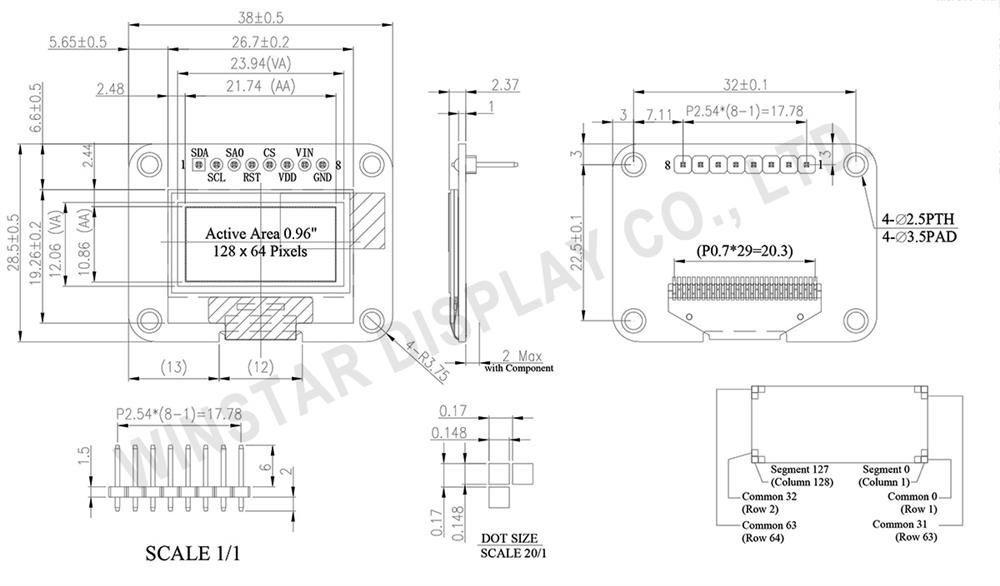

    DRAWING

    OLED 12864, 12864 OLED, OLED Display Module 12864, SSD1306 OLED, SSD1306 OLED Display, OLED 128x64 SSD1306



    SPECIFICATIONS

    Interface Pin Function

    No.SymbolFunction
    1 SDA When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN.
    When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
    2 SCL
    3 SA0 In I2C mode, this pin acts as SA0 for slave address selection.
    When 3-wire serial interface is selected, this pin must be connected to VSS.
    4 RST This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed.
    Keep this pin HIGH (i.e. connect to VDD) during normal operation.
    5 CS This pin is the chip select input. (active LOW).
    6 VDD 3.0V Power supply pin for core logic operation.
    7 VIN 5.0V Power supply pin for core logic operation.
    8 GND This is a ground pin.



    Mechanical Data

    ItemDimensionUnit
    Dot Matrix 128 × 64 Dots
    Module dimension 38.00 × 28.50 × 2.37 mm
    Active Area 21.74 × 10.86 mm
    Pixel Size 0.148 × 0.148 mm
    Pixel Pitch 0.17 × 0.17 mm
    Display Mode Passive Matrix
    Display Color Monochrome
    Drive Duty 1/64 Duty
    IC SSD1306
    Interface I2C, SPI
    Size 0.96 inch



    Absolute Maximum Ratings

    ParameterSymbolMinMaxUnit
    Supply Voltage for Logic VDD 1.65 3.3 V
    Supply Voltage for Logic VIN 4.0 6.0 V
    Operating Temperature TOP -40 +80 °C
    Storage Temperature TSTG -40 +85 °C



    Electronical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage for Logic(3V) VDD - 2.8 3.0 3.2 V
    Supply Voltage for Logic(5V) VIN - 4.8 5.0 5.2 V
    Input High Volt. VIH - 0.8×VDD - VDDIO V
    Input Low Volt. VIL - 0 - 0.2×VDD V
    Output High Volt. VOH - 0.9×VDD - VDDIO V
    Output Low Volt. VOL - 0 - 0.1×VDD V
    50% Check Board operating Current ICC Vcc=7.5V - 12.0 22.0 mA
    Specifiche di prodotto
    Size 0.96"
    Resolution 128x64
    Active Area (mm) 21.74x10.86
    Dot Size 0.14x0.14
    Polarizer Glare
    Color Yellow
    Power supply 3V
    Display Interface I2C (option SPI)
    Display IC SSD1306BZ
    Constructive Structure COG + PCB
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -40~80
    Data Connection Pin Strip
    Pin Nr. 8
    Pin Pitch 2.54mm
    Preferred - Not Preferred Not Preferred
