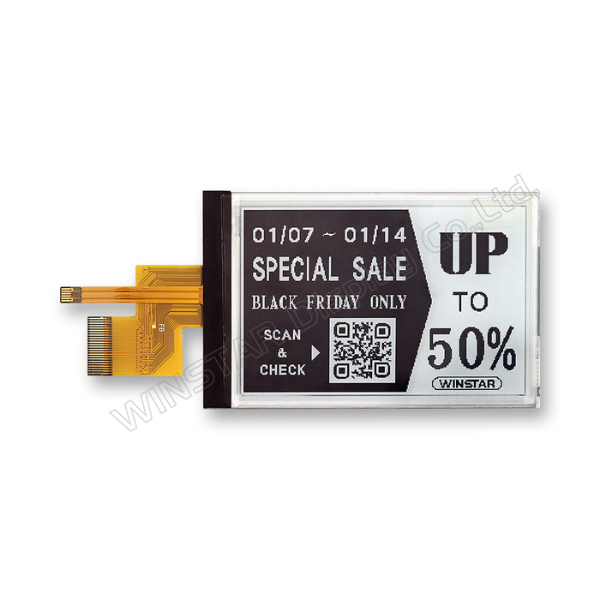

    WAA0270BA7#A2N1AA-FC

    E-paper 2.7" 264x176, Color Black on White, Interface SPI with Front Light 2.7"
    Brand: Winstar
    Cod.: WAA0270BA7#A2N1AA-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    Prezzo
    €27,50
    €24,80

    Per quantità maggiori di 9pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €27,50 IVA esclusa
    i h

    DESCRIPTION

    The WAA0270BA7#A2N1AA-FC is a 2.7-inch E-paper Display (EPD) equipped with an integrated front light panel, delivering a high-contrast black-and-white reflective display with exceptional readability and ultra-low power consumption. Featuring a resolution of 264x176 pixels, this module is an optimal solution for battery-powered devices that require reliable performance and clear visibility across various lighting conditions, including low-light environments.

    This 2.7" E-paper display integrates essential components such as a timing controller, SRAM, oscillator, DC-DC converter, LUT, and VCOM generator, facilitating seamless system integration via MCU or SPI interface. Additionally, it offers on-chip display RAM and an ultra-low current deep sleep mode, allowing for efficient power management in always-on applications.

    Features:

    • 2.7" active display area with 264x176 pixel resolution
    • Integrated front light panel with 4 LEDs for enhanced low-light readability
    • Ultra-low power consumption ideal for battery-operated devices
    • High contrast, high reflectance, and wide viewing angles
    • Bi-stable, pure reflective technology – retains image without power
    • Supports both landscape and portrait orientations
    • On-chip waveform storage or MCU-programmable waveform
    • Built-in and external temperature sensor support via I2C
    • Operating voltage: 12V
    • Hard-coated, anti-glare surface treatment for enhanced durability


    Recommended Applications:

    With its compact footprint, integrated front light, and robust feature set, the WAA0270BA7#A2N1AA-FC is ideally suited for applications requiring superior legibility and energy efficiency.

    • Electronic Shelf Labels (ESL)
    • Smart Tags
    • Portable Signage Systems
    • Warehouse & Logistics Displays
    • Industrial Control Labels
    • Battery-powered IoT Devices

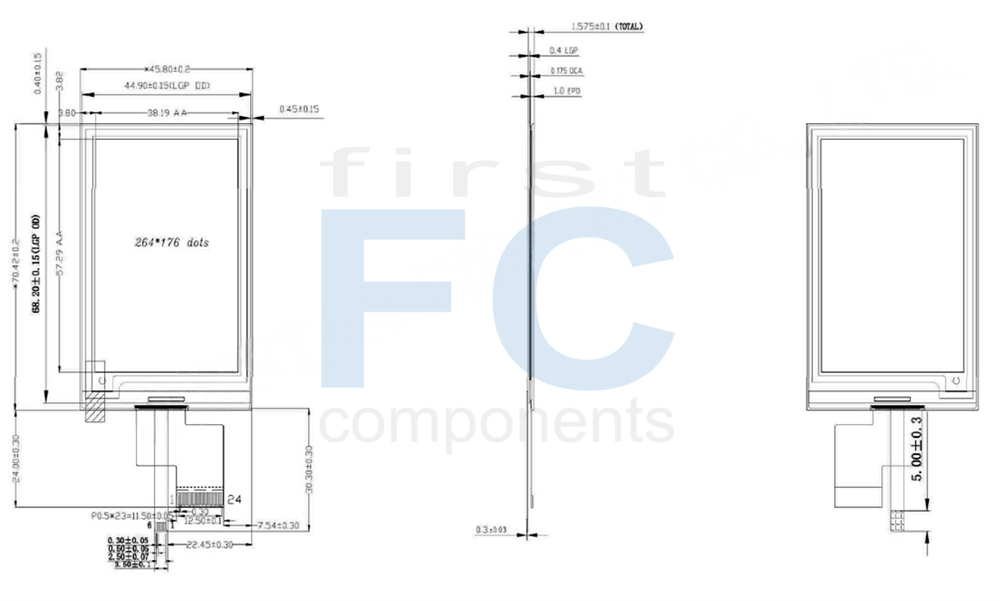

    DRAWING

    SPECIFICATIONS

    General Specifications

    ParameterSpecificationsUnit
    Screen Size 2.7 Inch
    Display Resolution 264(H)×176(V) Pixel
    Active Area 38.19×57.29 mm
    Pixel Pitch 0.217×0.217 mm
    Pixel Configuration Rectangle
    Outline Dimension 45.8(H)×70.42 (V) ×1.58(D) mm
    Module Weight 8.84±0.5 g



    Electrical Characteristics

    Absolute Maximum Ratings

    ParameterSymbolRatingUnit
    Logic supply voltage VCI -0.5 to +6.0 V
    Logic Input voltage VIN -0.5 to VCI +0.5 V
    Logic Output voltage VOUT -0.5 to VCI +0.5 V
    Operating Temp range TOPR 0 to +50 ºC
    Storage Temp range TSTG -25 to+70 ºC
    Optimal Storage Humidity HSTGo 55±10 %RH



    Interface

    Input /Output Pin Assignment

    No.NameI/ODescription
    1 NC   Do not connect with other NC pins
    2 GDR O N-Channel MOSFET Gate Drive Control
    3 RESE I Current Sense Input for the Control Loop
    4 NC NC Do not connect with other NC pins
    5 VSH2 C Positive Source driving voltage(Red)
    6 TSCL O I2C Interface to digital temperature sensor Clock pin
    7 TSDA I/O I2C Interface to digital temperature sensor Data pin
    8 BS1 I Bus Interface selection pin
    9 BUSY O Busy state output pin
    10 RES# I Reset signal input. Active Low.
    11 D/C# I Data /Command control pin
    12 CS# I Chip select input pin
    13 SCL I Serial Clock pin (SPI)
    14 SDA I Serial Data pin (SPI)
    15 VDDIO P Power Supply for interface logic pins It should be
    connected with VCI
    16 VCI P Power Supply for the chip
    17 VSS P Ground
    18 VDD C Core logic power pin VDD can be regulated internally from VCI. A capacitor should be connected between VDD and VSS
    19 VPP P FOR TEST
    20 VSH1 C Positive Source driving voltage
    21 VGH C Power Supply pin for Positive Gate driving voltage and VSH1
    22 VSL C Negative Source driving voltage
    23 VGL C Power Supply pin for Negative Gate driving voltage
    VCOM and VSL
    24 VCOM C VCOM driving voltage
    Specifiche di prodotto
    Size 2.7"
    Resolution 264x176
    Active Area (mm) 57.28x38.19
    Dot Size 0.21x0.21
    Color Black on White
    Display Interface SPI
    O. Temperature (°C) 0~50
    Data Connection FPC for ZIF Connector
    Pin Nr. 24
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
