TST0005R7D1241XXXX10

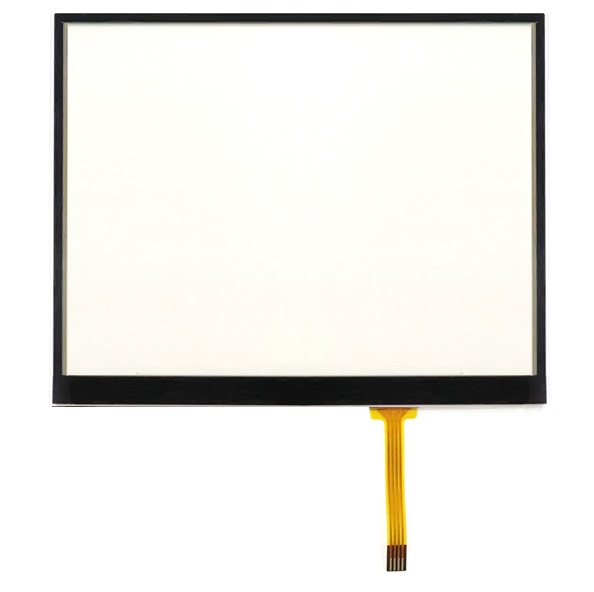

Resistive Touch panel 5.7", O.D. 122.45x97.95mm, 4w, Film-Glass structure, FPC per ZIF Connector, With stiffener (suitable for WST WF B/C/D/E/F/M/P/Q/W families)

DESCRIPTION

Type:  4-wire resistive touch panel
Input mode: Stylus or finger

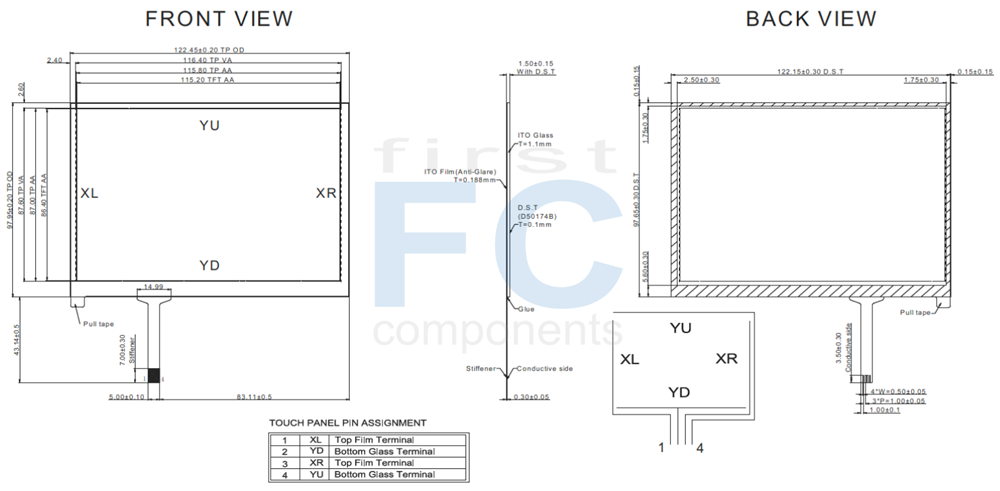

DRAWING



SPECIFICATIONS

Structure and material

StructureMaterialThicknessRemark
Upper circuits ITO Film 0.188mm Anti-Glare
Bottom circuits ITO Glass 1.1mm -
Back tape Adhesive 0.10mm Black D.S.T: D50174B


Dimension

ItemDescriptionUnit
Outline Dimension 122.45x97.95 mm
View Area 116.4x87.6 mm
Active Area 115.8x87 mm
Total thickness 1.5 (With D.S.T) mm
Length of FPC 43.14 mm



Electrical Characteristics

ItemSymbol
Loop resistance X: 200～900Ω
Y: 200～900Ω
Linearity ≤ 1.5%
Insulation resistance ≥20MΩ (DC 25V)
Chattering time ≤15ms
Supply voltage DC 5V Max



Environmental characteristics

ItemSpecification
Operating Temp. -30℃～80℃ -30℃≤T≤60℃  Humidity ＜90%RH   No dew fall
60℃<T≤80℃  Humidity ＜60%RH  No dew fall
Storage Temp. -30℃～80℃ -30℃≤T≤60℃  Humidity ＜90%RH   No dew fall
60℃<T≤80℃   Humidity ＜60%RH  No dew fall



SKU: TST0005R7D1241XXXX10
Brand: Winstar
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
25+
Prezzo
€20,30
€18,30
€17,20
€16,80

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€20,30 IVA esclusa

DESCRIPTION

Type:  4-wire resistive touch panel
Input mode: Stylus or finger



DRAWING



SPECIFICATIONS

Structure and material

StructureMaterialThicknessRemark
Upper circuits ITO Film 0.188mm Anti-Glare
Bottom circuits ITO Glass 1.1mm -
Back tape Adhesive 0.10mm Black D.S.T: D50174B


Dimension

ItemDescriptionUnit
Outline Dimension 122.45x97.95 mm
View Area 116.4x87.6 mm
Active Area 115.8x87 mm
Total thickness 1.5 (With D.S.T) mm
Length of FPC 43.14 mm



Electrical Characteristics

ItemSymbol
Loop resistance X: 200～900Ω
Y: 200～900Ω
Linearity ≤ 1.5%
Insulation resistance ≥20MΩ (DC 25V)
Chattering time ≤15ms
Supply voltage DC 5V Max



Environmental characteristics

ItemSpecification
Operating Temp. -30℃～80℃ -30℃≤T≤60℃  Humidity ＜90%RH   No dew fall
60℃<T≤80℃  Humidity ＜60%RH  No dew fall
Storage Temp. -30℃～80℃ -30℃≤T≤60℃  Humidity ＜90%RH   No dew fall
60℃<T≤80℃   Humidity ＜60%RH  No dew fall



Specifiche di prodotto
Brand Winstar
Size 5.7"
Area Attiva (mm) 115.80x87.00
Struttura Costruttiva GF, 4W
Connessione Display FPC for ZIF Connector
Nr. Pin 4
Passo Pin 1mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 5.7"
Area Attiva (mm) 115.80x87.00
Struttura Costruttiva GF, 4W
Connessione Display FPC for ZIF Connector
Nr. Pin 4
Passo Pin 1mm
Preferred - Not Preferred Preferred
