- ISO/IEC 14443-A and B, Mifare DESFire, Classic, Plus card support
- ISO/IEC 14443-type A card emulation
- NFC protocols-tag reader/writer, P2P (Optional)
- SO/IEC 15693, ICODE, ISO /IEC 18000-3 mode 3
- JIS X 6319-4 (Comparable with FeliCa scheme)
- ISO/IEC 7816 compliant (Optional)
- NXP NFC /RFID Engine
- Operation Temperature range: -40 to +85°C

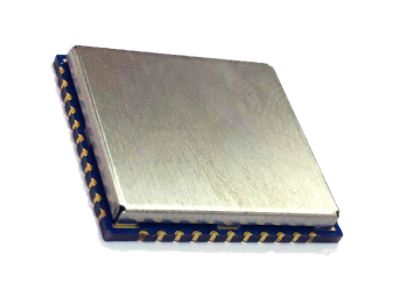

The RYRR50S module is a 13.56MHz RFID and Near Field Communication (NFC) system. Built-in programming options make the device suitable for a wide range of applications for proximity and vicinity identification systems.
| Item |
Min. |
Typical |
Max. |
Unit |
Condition |
| Operation Voltage |
4.5 |
5 |
5.5 |
V |
VUP_TX, VBUS, VBUSP |
| VOH |
2.5 |
3 |
3.3 |
V |
TXD High-level output voltage |
| VOL |
0 |
0.3 |
0.7 |
V |
TXD Low-level output voltage |
| VIH |
2.5 |
3.3 |
3.3 |
V |
RXD High-level input voltage |
| VIL |
0 |
0 |
0.7 |
V |
RXD Low-level input voltage |
| RF Output Power |
|
20 |
23 |
dBm |
|
| RF Transmit Peak current |
|
90 |
250 |
mA |
|
| Communication Range |
|
5 |
|
cm |
Standard card |
| Reset Time |
50 |
60 |
70 |
ms |
|
| Baud Rate |
|
115200 |
|
bps |
8,N,1 |
| RF Frequency Range |
13.553 |
13.56 |
13.567 |
MHz |
|
| Operating Temperature |
-40 |
25 |
+85 |
˚C |
|
| Antenna |
|
|
|
|
External |
| Dimensions |
|
|
|
|
21mm*19mm*2.4mm |
| Weight |
|
5 |
|
g
|
