PH800480T032-ZHC

Immagine di PH800480T032-ZHC Immagine di PH800480T032-ZHC
TFT 7" 800x480 LCD Panel, Interface RGB, High Brightness 800cd/m², Wide View Angle (IPS), Capacitive touch panel I2C interface (IC FT5426), V-Com, B/L Power on FPC

DESCRIPTION

PH800480T032-ZHC is a 7-inch display, featuring IPS /with V com, BL power, high brightness.

Perfect for outdoor application, such as EV charger, measurement device, drone controller and solar energy controller.



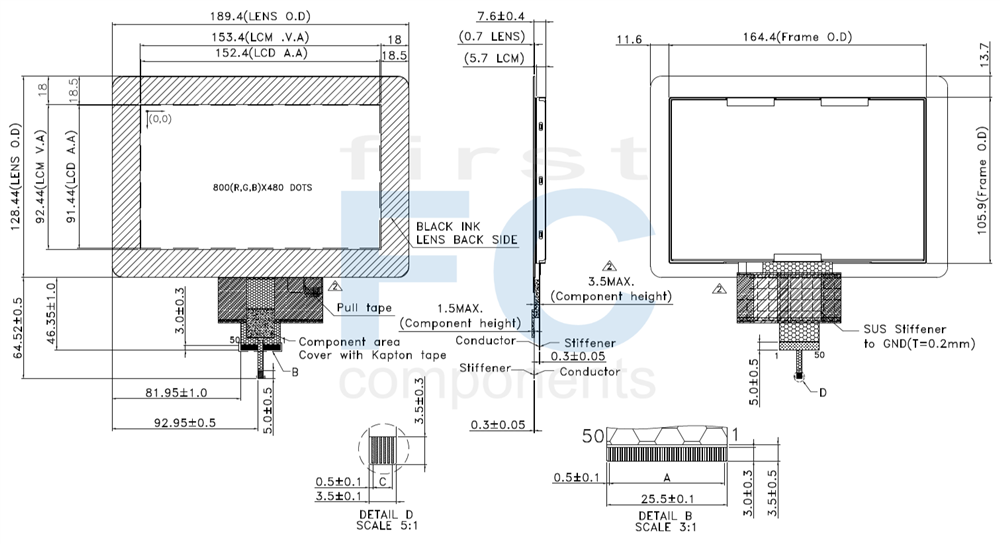

DRAWING



SPECIFICATIONS

Interface Pin Function

Pin
Number		SymbolFunction
1 GND Power ground
2 VDD Power for Digital Circuit
3 VDD Power for Digital Circuit
4 VCC Power for LED backlight
5 VCC Power for LED backlight
6 PWM Shutdown & Dimming control input for backlight- Do not allow this pin to float. "Hi"=100%, "Low"=0%.
7 GND Power ground
8 R0 Red Data
9 R1

Red Data
10 R2 Red Data
11 R3 Red Data
12 GND Power ground
13 R4

Red Data
14 R5 Red Data
15 R6 Red Data
16 R7 Red Data
17 GND Power ground
18 G0 Green Data
19 G1 Green Data
20 G2 Green Data
21 G3 Green Data
22 GND Power ground
23 G4 Green Data
24 G5 Green Data
25 G6 Green Data
26 G7 Green Data
27 GND Power ground
28 B0 Blue Data
29 B1 Blue Data
30 B2

Blue Data
31 B3 Blue Data
32 GND Power ground
33 B4 Blue Data
34 B5 Blue Data
35 B6 Blue Data
36 B7 Blue Data
37 GND Power ground
38 HS Line synchronization signal. Horizontal Sync Input.
39 VS Frame synchronization signal. Vertical Sync Input.
40 GND Power ground
41 DE Data Enable
42  GND Power ground
43  DCLK Sample clock- Data will be latched at the falling edge of DCLK.
44  GND Power ground
45  CS/ID1  Serial communication data/ID(4:1)These pins select select LCM type. See NOTE1
46  SDIN/ID2  Serial communication data/ID(4:1)These pins select select LCM type. See NOTE1
47  SCK/ID3  Serial communication clock/ ID(4:1)These pins select select LCM type. See NOTE1
48  DISPLAY CONTROL/ID4  Display Enable(Hi Active) / ID [4:1]. These pins select LCM type.
49  /RESET  Global Reset (Low Active)
50  GND   Power ground



Note1:

ID Pins Definition:

  PIN 45 ID1 PIN 46 ID2 PIN 47 ID3 PIN 48 ID3
3.5'' Module X 0 0 X
4.3'' Module X 1 0 X
5.0'' Module X 0 1 X
7.0'' Module X 1 1 X

1. Resistor = 10k ohm

2. "X" = No use

Capacitive Touch Panel (CTP) Interface

Pin
Number		SymbolFunction
1 GND Ground
2 TPVDD Power Supply Voltage (3.3V)
3 SCL I2C Clock
4 SDA I2C Data
5 INT Active Low
6 RESET Active low global reset signal input



General Specification

ItemDimension
Display Resolutions 800 × 3(RGB) x 480 Dots
LCD Type IPS,  Normally black, Transmissive type
Screen size (inch)

7.0 inch
Color configuration RGB Vertical Strip
Driver IC

Himax --- HX8249-A02

Himax --- HX8678-C
Weight 252.6g
Interface Parallel RGB (Data), Spi (Configuration)
ROHS This product conforms the RoHS of PTC



Absolute Maximum Ratings

ParameterSymbolConditionMinMaxUnit
Power Supply for TFT Panel VDD GND=0 -0.3 3.96 V
Power Supply for Backlight Unit VCC GND=0 -0.3 +20.0 V
Operating Temperature TOP Note 1 -20 +70 °C
Storage Temperature TST Note 2 -30 +80 °C

Note 1. Ts is the tempeature of panel's surface

Note 2: Ta is the ambient temperature of samples

Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Power Supply for TFT Panel VDD GND=0V 3.0 3.3 3.6 V
Power Supply for Backlight Unit VCC GND=0V 5 12 15 V
Input Voltage for TFT Panel VIH GND=0V 0.7VDD - VDD V
VIL GND=0V 0 － 0.3VDD
Supply Current for TFT Panel (RMS) IDD IDD@VDD=3.3V - 30 45 mA
Peak Supply Current for TFT Panel IDD Full screen white - - 450 mA
Supply Current for Backlight Unit ICC ICC@VCC=5V - 0.8 1.2 A
Supply Current for Backlight Unit ICC ICC@VCC=12V - 0.3 0.45
Input Voltage for PWM Signal VPH GND=0V 1.2 - - V
VPL GND=0V - - 0.4 V
Dimming Clock Rate fP GND=0V 5 - 8 KHz



SKU: PH800480T032-ZHC
Brand: Powertip
Disponibile: Si
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€82,50
€75,70
€72,60

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€82,50 IVA esclusa

DESCRIPTION

PH800480T032-ZHC is a 7-inch display, featuring IPS /with V com, BL power, high brightness.

Perfect for outdoor application, such as EV charger, measurement device, drone controller and solar energy controller.



DRAWING



SPECIFICATIONS

Interface Pin Function

Pin
Number		SymbolFunction
1 GND Power ground
2 VDD Power for Digital Circuit
3 VDD Power for Digital Circuit
4 VCC Power for LED backlight
5 VCC Power for LED backlight
6 PWM Shutdown & Dimming control input for backlight- Do not allow this pin to float. "Hi"=100%, "Low"=0%.
7 GND Power ground
8 R0 Red Data
9 R1

Red Data
10 R2 Red Data
11 R3 Red Data
12 GND Power ground
13 R4

Red Data
14 R5 Red Data
15 R6 Red Data
16 R7 Red Data
17 GND Power ground
18 G0 Green Data
19 G1 Green Data
20 G2 Green Data
21 G3 Green Data
22 GND Power ground
23 G4 Green Data
24 G5 Green Data
25 G6 Green Data
26 G7 Green Data
27 GND Power ground
28 B0 Blue Data
29 B1 Blue Data
30 B2

Blue Data
31 B3 Blue Data
32 GND Power ground
33 B4 Blue Data
34 B5 Blue Data
35 B6 Blue Data
36 B7 Blue Data
37 GND Power ground
38 HS Line synchronization signal. Horizontal Sync Input.
39 VS Frame synchronization signal. Vertical Sync Input.
40 GND Power ground
41 DE Data Enable
42  GND Power ground
43  DCLK Sample clock- Data will be latched at the falling edge of DCLK.
44  GND Power ground
45  CS/ID1  Serial communication data/ID(4:1)These pins select select LCM type. See NOTE1
46  SDIN/ID2  Serial communication data/ID(4:1)These pins select select LCM type. See NOTE1
47  SCK/ID3  Serial communication clock/ ID(4:1)These pins select select LCM type. See NOTE1
48  DISPLAY CONTROL/ID4  Display Enable(Hi Active) / ID [4:1]. These pins select LCM type.
49  /RESET  Global Reset (Low Active)
50  GND   Power ground



Note1:

ID Pins Definition:

  PIN 45 ID1 PIN 46 ID2 PIN 47 ID3 PIN 48 ID3
3.5'' Module X 0 0 X
4.3'' Module X 1 0 X
5.0'' Module X 0 1 X
7.0'' Module X 1 1 X

1. Resistor = 10k ohm

2. "X" = No use

Capacitive Touch Panel (CTP) Interface

Pin
Number		SymbolFunction
1 GND Ground
2 TPVDD Power Supply Voltage (3.3V)
3 SCL I2C Clock
4 SDA I2C Data
5 INT Active Low
6 RESET Active low global reset signal input



General Specification

ItemDimension
Display Resolutions 800 × 3(RGB) x 480 Dots
LCD Type IPS,  Normally black, Transmissive type
Screen size (inch)

7.0 inch
Color configuration RGB Vertical Strip
Driver IC

Himax --- HX8249-A02

Himax --- HX8678-C
Weight 252.6g
Interface Parallel RGB (Data), Spi (Configuration)
ROHS This product conforms the RoHS of PTC



Absolute Maximum Ratings

ParameterSymbolConditionMinMaxUnit
Power Supply for TFT Panel VDD GND=0 -0.3 3.96 V
Power Supply for Backlight Unit VCC GND=0 -0.3 +20.0 V
Operating Temperature TOP Note 1 -20 +70 °C
Storage Temperature TST Note 2 -30 +80 °C

Note 1. Ts is the tempeature of panel's surface

Note 2: Ta is the ambient temperature of samples

Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Power Supply for TFT Panel VDD GND=0V 3.0 3.3 3.6 V
Power Supply for Backlight Unit VCC GND=0V 5 12 15 V
Input Voltage for TFT Panel VIH GND=0V 0.7VDD - VDD V
VIL GND=0V 0 － 0.3VDD
Supply Current for TFT Panel (RMS) IDD IDD@VDD=3.3V - 30 45 mA
Peak Supply Current for TFT Panel IDD Full screen white - - 450 mA
Supply Current for Backlight Unit ICC ICC@VCC=5V - 0.8 1.2 A
Supply Current for Backlight Unit ICC ICC@VCC=12V - 0.3 0.45
Input Voltage for PWM Signal VPH GND=0V 1.2 - - V
VPL GND=0V - - 0.4 V
Dimming Clock Rate fP GND=0V 5 - 8 KHz



Specifiche di prodotto
Brand Powertip
Size 7"
Risoluzione 800x480
Area Attiva (mm) 152.40x91.44
Colore Full Color
Interfaccia Display RGB
Display IC No
Angolo Visione IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display FPC for ZIF Connector
Nr. Pin 50
Passo Pin 0.5mm
IC Controller Touch Panel FT5426
