    PH800480T030-ZHA01

    TFT 5" 800x480 LCD Panel, Interface RGB, High Brightness 1000cd/m², Wide View Angle (IPS), No touch
    Brand: Powertip
    Cod.: PH800480T030-ZHA01

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €33,70
    €30,40
    €28,50
    €27,90

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €33,70 IVA esclusa
    i h

    DESCRIPTION

    PH800480T030-ZHA01 is 5-inch display, featuring IPS.



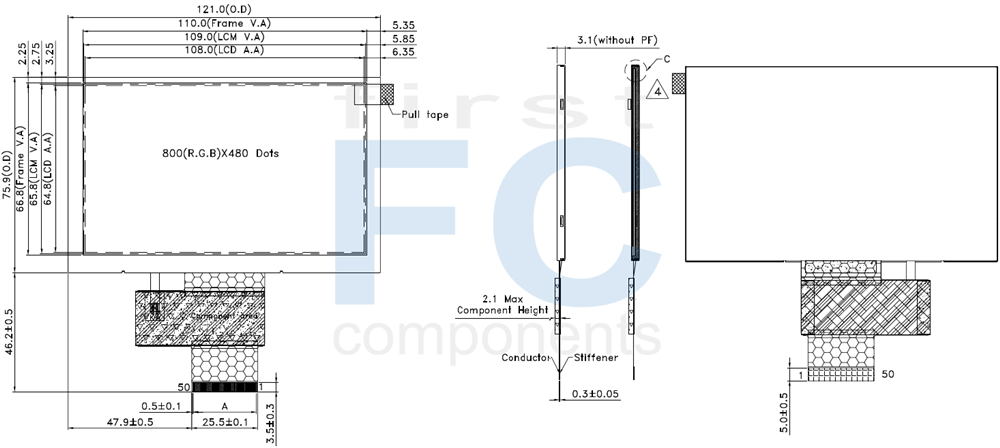

    DRAWING



    SPECIFICATIONS

    Interface Pin Function

    Pin
    Number
    SymbolFunction
    1 GND Power ground
    2 VDD Power for Digital Circuit
    3 VDD Power for Digital Circuit
    4 VCC Power for LED backlight
    5 VCC Power for LED backlight
    6 PWM Shutdown & Dimming control input for backlight- Do not allow this pin to float. "Hi"=100%, "Low"=0%.
    7 GND Power ground
    8 R0 Red Data
    9 R1

    Red Data

    10 R2 Red Data
    11 R3 Red Data
    12 GND Power ground
    13 R4

    Red Data

    14 R5 Red Data
    15 R6 Red Data
    16 R7 Red Data
    17 GND Power ground
    18 G0 Green Data
    19 G1 Green Data
    20 G2 Green Data
    21 G3 Green Data
    22 GND Power ground
    23 G4 Green Data
    24 G5 Green Data
    25 G6 Green Data
    26 G7 Green Data
    27 GND Power ground
    28 B0 Blue Data
    29 B1 Blue Data
    30 B2

    Blue Data

    31 B3 Blue Data
    32 GND Power ground
    33 B4 Blue Data
    34 B5 Blue Data
    35 B6 Blue Data
    36 B7 Blue Data
    37 GND Power ground
    38 HS Line synchronization signal. Horizontal Sync Input.
    39 VS Frame synchronization signal. Vertical Sync Input.
    40 GND Power ground
    41 DE Data Enable
    42  GND Power ground
    43  DCLK Sample clock- Data will be latched at the falling edge of DCLK.
    44  GND Power ground
    45  CS/ID1  Serial communication chip selection/ID[4:1]. These pins select LCM type. See NOTE 1
    46  SDIN/ID2  Serial communication data/ID[4:1]. These pins select LCM type. See NOTE 1
    47  SCK/ID3  Serial communication clock/ID[4:1]. These pins select LCM type. See NOTE 1
    48  DISPLAY CONTROL/ID4  Display Enable(Hi Active) / ID [4:1]. These pins select LCM type. See NOTE 1
    49  /RESET  Global Reset (Low Active)
    50  GND   Power ground

     Note1:

    ID Pins Definition:

      PIN 45 ID1 PIN 46 ID2 PIN 47 ID3 PIN 48 ID4
    3.5" Module X 0 0 X
    4.3" Module X 1 0 X
    5.0" Module X 0 1 X
    7.0" Module X 1 1 X



    General Specification

    ItemDimension
    Display Resolution 800 × 3(RGB) x 480 Dots
    LCD Type Full Viewing Angle, Normally Black, Transmissive type
    Screen size 5.0 inch
    Surface treatment Anti-Glare
    Color configuration RGB Vertical Strip
    Backlight Type White LED B/L
    Weight 60 g
    Interface Parallel RGB (Data), SPI (Configuration)
    ROHS This product conforms the RoHS of PTC. Detail information please refere website: https://www.powertip.com.tw/news_detail.php?Key=1&cID=1



    Absolute Maximum Ratings

    ItemSymbolConditionMinMaxUnit
    Power Supply for TFT Panel VDD GND=0 -0.3 4.5 V
    Power Supply for Backlight Unit VCC GND=0 -0.3 +20.0 V
    Operating Temperature TOP (Ts) Note 1 -20 70 °C
    Storage Temperature TST (Ta) Note 2 -30 80 °C

    Note 1: Ts is the temperature of panel's surface.

    Note 2: Ta is the ambient temperature of samples.



    Electronical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Power Supply for TFT Panel VDD GND=0V 3.0 3.3 3.6 V
    Power Supply for Backlight Unit VCC GND=0V 5 12 15 V
    Input Voltage for TFT Panel VIH GND=0V 0.7VDD - VDD V
    VIL GND=0V 0 - 0.3VDD
    Supply Current for TFT Panel IDD IDD@VDD=3.3V - (75) (110) mA
    Supply Current for Backlight Unit ICC ICC@VCC=5V - (250) (380)
    Supply Current for Backlight Unit ICC ICC@VCC=12V - (110) (160)
    Input Voltage for PWM Signal VPH GND=0V 1.2 - - V
    VPL GND=0V - - 0.4 V
    Dimming Clock Rate fP GND=0V 5 - 100 KHz



    Specifiche di prodotto
    Size 5"
    Resolution 800x480
    Active Area (mm) 108.00x64.80
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle IPS
    Sunlight Readable High 601~1200cd/m²
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 50
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
