    TFT 15.6" 1920x1080, HDMI Interface, 300cd/m², Wide View Angle (IPS), Capacitive Touch Panel
    Cod.: NT156-C001ML

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €211,30
    €190,20
    €178,80

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €211,30 IVA esclusa
    i h

    DESCRIPTION

    The NT156-C001ML model is a Color TFT LCD supplied by Next Vision.
    This main Module has a 15.6 inch diagonally measured active display area with 1920(RGB)X1080 resolution. Each pixel is divided into Red, Green and Blue sub-pixels and dots, which are arranged in vertical stripes.
    The NT156-C001ML has been designed to apply the HDMI interface method that enables low power, high speed, and high contrast.



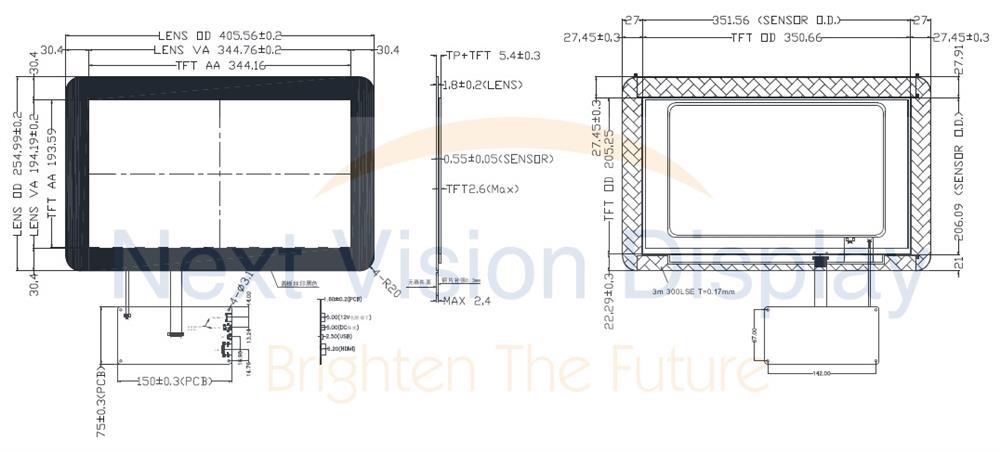

    DRAWING



    SPECIFICATIONS

    Interface Pin Connections

    HDMI interface

    No.SymbolDescription
    1 TMDS Data2+ Positive side of channel 2. TMDS low-voltage signal differential input pair
    2 TMDS Data2 Shield Ground
    3 TMDS Data2- Negative side of channel 2. TMDS low-voltage signal differential input pair
    4 TMDS Dara1+ Positive side of channel 1. TMDS low-voltage signal differential input pair
    5 TMDS Data1 Shield Ground
    6 TMDS Data1- Negative side of channel 1. TMDS low-voltage signal differential input pair
    7 TMDS Data0+ Positive side of channel 0. TMDS low-voltage signal differential input pair
    8 TMDS Data0 Shield Ground
    9 TMDS Data0- Negative side of channel 0. TMDS low-voltage signal differential input pair
    10 TMDS Clock+ Positive side of refrence clock. TMDS low-voltage signal differential input pair
    11 TMDS Clock Shiled Ground
    12 TMDS Clock- Negative side of reference clock. TMDS low-voltage signal differential input pair
    13 CEC No Connection
    14 Reserved (N.C.) No Connection
    15 SCL DDC SCL
    16 SDA DDC SDA
    17 DDC/CEC Ground Ground
    18 +5V Power +5V Power
    19 Hot Plug Detect Hot Plug Detect



    USB TOUCH interface

    No.SymbolDescription
    1 VUSB USB Power(5V)
    2 D- USB Data-
    3 D+ USB Data+
    4 NC No connection
    5 GND Power Ground



    Mechanical Data

    ItemStandard ValueUnit
    Display Mode Normally White, Transmissive LCD -
    Module Dimension 405.56x254.99x5.40 mm
    Resolution 1920(RGB)x1080 Pixels
    Active Display Area 344.16x193.59 mm
    Viewing Angle Free -
    Gray inversion direction Free
    LED Backlight Color White -
    Interface LCD:HDMI, CTP:USB -
    Power Supply External (12V)  -



    Absolute Maximum Ratings

    ItemMinTypMaxUnitRemark
    Power supply voltage -0.3 - 21 V
    Operating Temperature -10 - 50 °C
    Storage Temperature -20 - 60 °C
    Humidity - - 90% RH @60°C



    Electrical Characteristics

    ItemSymbolMinTypMaxUnit
    Power Supply Voltage DC12V - 12.0 - V
    Specifiche di prodotto
    Size 15.6"
    Resolution 1920x1080
    Active Area (mm) 344.16x193.59
    Color Full Color
    Display Interface HDMI
    View Angle IPS
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Data Connection HDMI Connector
