NT070-C002ME

TFT 7" 1024x600 LCD Panel, Interface RGB, 300cd/m², Wide View Angle (IPS), Capacitive touch panel I2C interface (GG, GT911 IC)

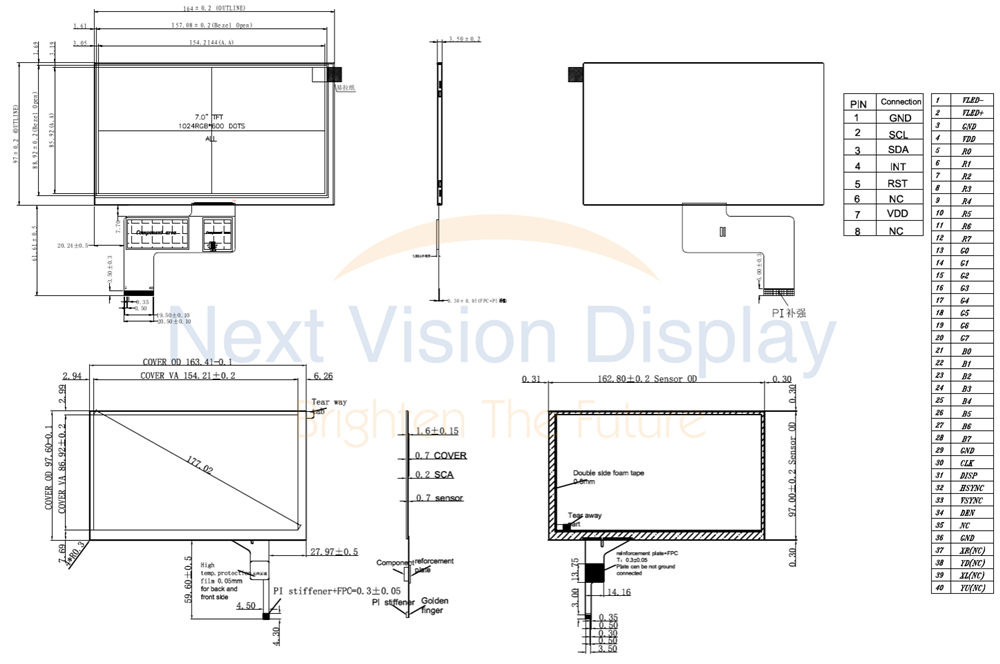

DRAWING

SPECIFICATIONS

General Specifications

Item	Contents	Unit
LCD Type	Normally Black, Transmissive	-
Display color	16.7M	-
Viewing direction	ALL	O'Clock
Operating temperature	-20~+70	°C
Storage temperature	-30~+80	°C
Module size	164.00(W)x97.00(H)x3.50(T)	mm
Active area (WxH)	154.2144(W)x85.92(H)	mm
Number of dots	1024xRGBx600	dots
Backlight	21-LEDs (white)	pcs
Interface	RGB interface	-
Driver IC	HX8282+HX8696	-

Absolute Maximum Ratings

Electrical Absolute Maximum Ratings

Item	Symbol	Min	Max	Unit
Digital Supply Voltage	VDD	-0.3	3.6	V
Analog Supply Voltage	AVDD	-0.5	13.5	V
TFT Gate ON Voltage	VGH	0.3	20	V
TFT Gate OFF Voltage	VGL	-20	0.3	V
TFT Common Electrode Voltage	VCOM	0	6	V
Operating Temperature	T_OP	-20	70	°C
Storage Temperature	T_ST	-30	80	°C

Electrical Specifications and Timing Characteristics

Electrical characteristics

Item	Symbol	Min.	Typ.	Max.	Unit
Digital Supply Voltage	VDD	3.0	3.3	3.6	V
Analog Supply Voltage	AVDD	9.4	9.6	9.8	V
TFT Gate ON Voltage	VGH	17.0	18.0	19.0	V
TFT Gate OFF Voltage	VGL	-6.6	-6.0	-5.4	V
TFT Common Electrode Voltage	VCOM	-	-	-	V

Interface Signals

Pin	Symbol	I/O	Function
1	VLED-	I	LED back light (Cathode)
2	VLED+	I	LED back light (Anode)
3	GND		GND
4	VDD	I	Power supply
5-12	R0-R7	I	Red data bus
13-20	G0-G7	I	Green data bus
21-28	B0-B7	I	Blue data bus
29	GND		GND
30	PCLK	I	Data clock
31	DISP	I	Standby mode select pin
32	HSYNC	I	Line SYNC signal
33	VSYNC	I	Frame SYNC signal
34	DE	I	Data enable pin
35	NCD0N		NC
36	GND		GND
37	XR	O	Touch Panel Control pin
38	YD	O
39	XL	O
40	YU	O

SKU: NT070-C002ME

Brand: Next Vision Display

Disponibile: Si

Si tratta dela prima recensione per questo prodotto

Kit Accessori

Display Connector

Prezzi per quantità

Quantità

10+

Prezzo

€48,80

€42,10

€35,00

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€48,80 IVA esclusa

Overview
Specifiche
Download
Contattaci

DRAWING

SPECIFICATIONS

General Specifications

Item	Contents	Unit
LCD Type	Normally Black, Transmissive	-
Display color	16.7M	-
Viewing direction	ALL	O'Clock
Operating temperature	-20~+70	°C
Storage temperature	-30~+80	°C
Module size	164.00(W)x97.00(H)x3.50(T)	mm
Active area (WxH)	154.2144(W)x85.92(H)	mm
Number of dots	1024xRGBx600	dots
Backlight	21-LEDs (white)	pcs
Interface	RGB interface	-
Driver IC	HX8282+HX8696	-

Absolute Maximum Ratings

Electrical Absolute Maximum Ratings

Item	Symbol	Min	Max	Unit
Digital Supply Voltage	VDD	-0.3	3.6	V
Analog Supply Voltage	AVDD	-0.5	13.5	V
TFT Gate ON Voltage	VGH	0.3	20	V
TFT Gate OFF Voltage	VGL	-20	0.3	V
TFT Common Electrode Voltage	VCOM	0	6	V
Operating Temperature	T_OP	-20	70	°C
Storage Temperature	T_ST	-30	80	°C

Electrical Specifications and Timing Characteristics

Electrical characteristics

Item	Symbol	Min.	Typ.	Max.	Unit
Digital Supply Voltage	VDD	3.0	3.3	3.6	V
Analog Supply Voltage	AVDD	9.4	9.6	9.8	V
TFT Gate ON Voltage	VGH	17.0	18.0	19.0	V
TFT Gate OFF Voltage	VGL	-6.6	-6.0	-5.4	V
TFT Common Electrode Voltage	VCOM	-	-	-	V

Interface Signals

Pin	Symbol	I/O	Function
1	VLED-	I	LED back light (Cathode)
2	VLED+	I	LED back light (Anode)
3	GND		GND
4	VDD	I	Power supply
5-12	R0-R7	I	Red data bus
13-20	G0-G7	I	Green data bus
21-28	B0-B7	I	Blue data bus
29	GND		GND
30	PCLK	I	Data clock
31	DISP	I	Standby mode select pin
32	HSYNC	I	Line SYNC signal
33	VSYNC	I	Frame SYNC signal
34	DE	I	Data enable pin
35	NCD0N		NC
36	GND		GND
37	XR	O	Touch Panel Control pin
38	YD	O
39	XL	O
40	YU	O

Specifiche di prodotto

Brand	Next Vision Display
Size	7"
Risoluzione	1024x600
Area Attiva (mm)	154.21x85.92
Colore	Full Color
Interfaccia Display	RGB
Display IC	No
Angolo Visione	IPS
Frame	No
Touch Panel	Capacitive
Temperatura O. (°C)	-20~70
Connessione Display	FPC for ZIF Connector
Nr. Pin	40
Passo Pin	0.5mm
IC Controller Touch Panel	GT911
Preferred - Not Preferred	Preferred
