NT050-R001DW

Immagine di NT050-R001DW

Immagine di NT050-R001DW

Immagine di NT050-R001DW

TFT 5" 800x480 LCD Panel, Interface RGB, High Brightness 600cd/m², Wide view angle (IPS), Resistive touch panel

General Specifications

Color	16.7M
LCD Type	IPS-TFT-LCD
Viewing Angle	Wide viewing angle, 80/80/80/80(L/R/U/D)
Display Area(A.A)	108.0(W)*64.8(H)
Driver IC	ST7262-G4-1-H
Luminance	600cd/m²
LED Numbers	20 LEDS
Interface	RGB_24bit 40PIN_0.5mm

Electrical Characteristics

Digital Power Voltage	3.3V(Typ.)
Forward Voltage	12V(Typ.)
Forward Current	100mA
LED Life-Time	30000 Hr
Uniformity(with L/G)	80%

Optical Characteristics

Contrast Ratio	1000:1
Response Time	35ms
Color Gamut	55%

Touch Parameters

Feature	Description
Type	RTP (Resistive touch panel)
Structure	ITO Film + ITO Glass + FPC
Outline Sieze (mm)	120.20(L)74.80(W)1.55(T)
Active Area (mm)	110.20(L)*63.80(W)
Surface Hardness	3H
Light Transmittance	78%±3%
Operating Temperature	-20~70°C
Storage Temperature	-30~80°C

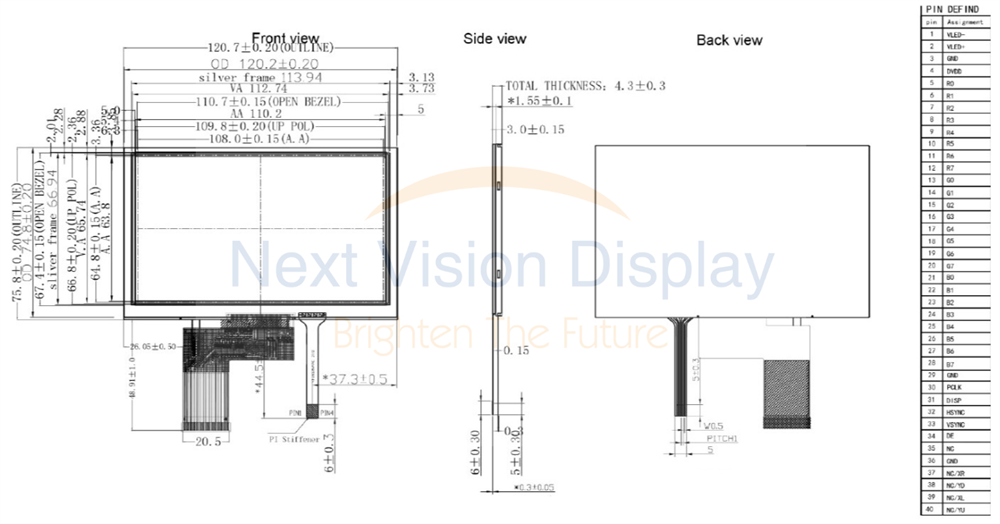

DRAWING

SKU: NT050-R001DW

Brand: Next Vision Display

Disponibile: Si

Si tratta dela prima recensione per questo prodotto

Kit Accessori

Display Connector
Touch-Panel Connector

Prezzi per quantità

Quantità

1+

5+

10+

Prezzo

€35,40

€30,60

€27,40

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€35,40 IVA esclusa

Overview
Specifiche
Download
Contattaci

General Specifications

Color	16.7M
LCD Type	IPS-TFT-LCD
Viewing Angle	Wide viewing angle, 80/80/80/80(L/R/U/D)
Display Area(A.A)	108.0(W)*64.8(H)
Driver IC	ST7262-G4-1-H
Luminance	600cd/m²
LED Numbers	20 LEDS
Interface	RGB_24bit 40PIN_0.5mm

Electrical Characteristics

Digital Power Voltage	3.3V(Typ.)
Forward Voltage	12V(Typ.)
Forward Current	100mA
LED Life-Time	30000 Hr
Uniformity(with L/G)	80%

Optical Characteristics

Contrast Ratio	1000:1
Response Time	35ms
Color Gamut	55%

Touch Parameters

Feature	Description
Type	RTP (Resistive touch panel)
Structure	ITO Film + ITO Glass + FPC
Outline Sieze (mm)	120.20(L)74.80(W)1.55(T)
Active Area (mm)	110.20(L)*63.80(W)
Surface Hardness	3H
Light Transmittance	78%±3%
Operating Temperature	-20~70°C
Storage Temperature	-30~80°C

DRAWING

Specifiche di prodotto

Brand	Next Vision Display
Size	5"
Risoluzione	800x480
Area Attiva (mm)	108.00x64.80
Colore	Full Color
Interfaccia Display	RGB
Display IC	No
Angolo Visione	IPS
Sunlight Readable	High 601~1200cd/m²
Frame	No
Touch Panel	Resistive
Temperatura O. (°C)	-10~60
Connessione Display	FPC for ZIF Connector
Nr. Pin	40
Passo Pin	0.5mm
Preferred - Not Preferred	Preferred

Download

Esegui il Login o Registrati per poter visualizzare PDF.

Nome completo

La tua email

Richiesta

Specifiche di prodotto

Brand	Next Vision Display
Size	5"
Risoluzione	800x480
Area Attiva (mm)	108.00x64.80
Colore	Full Color
Interfaccia Display	RGB
Display IC	No
Angolo Visione	IPS
Sunlight Readable	High 601~1200cd/m²
Frame	No
Touch Panel	Resistive
Temperatura O. (°C)	-10~60
Connessione Display	FPC for ZIF Connector
Nr. Pin	40
Passo Pin	0.5mm
Preferred - Not Preferred	Preferred
