NT043-R003ME

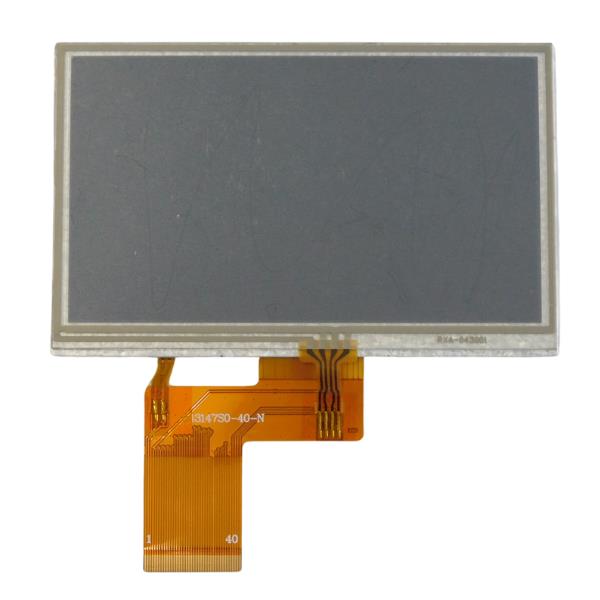

Immagine di NT043-R003ME Immagine di NT043-R003ME
TFT 4.3" 480x272 LCD Panel, Interface RGB, 300cd/m², Wide view angle (IPS), Resistive touch panel

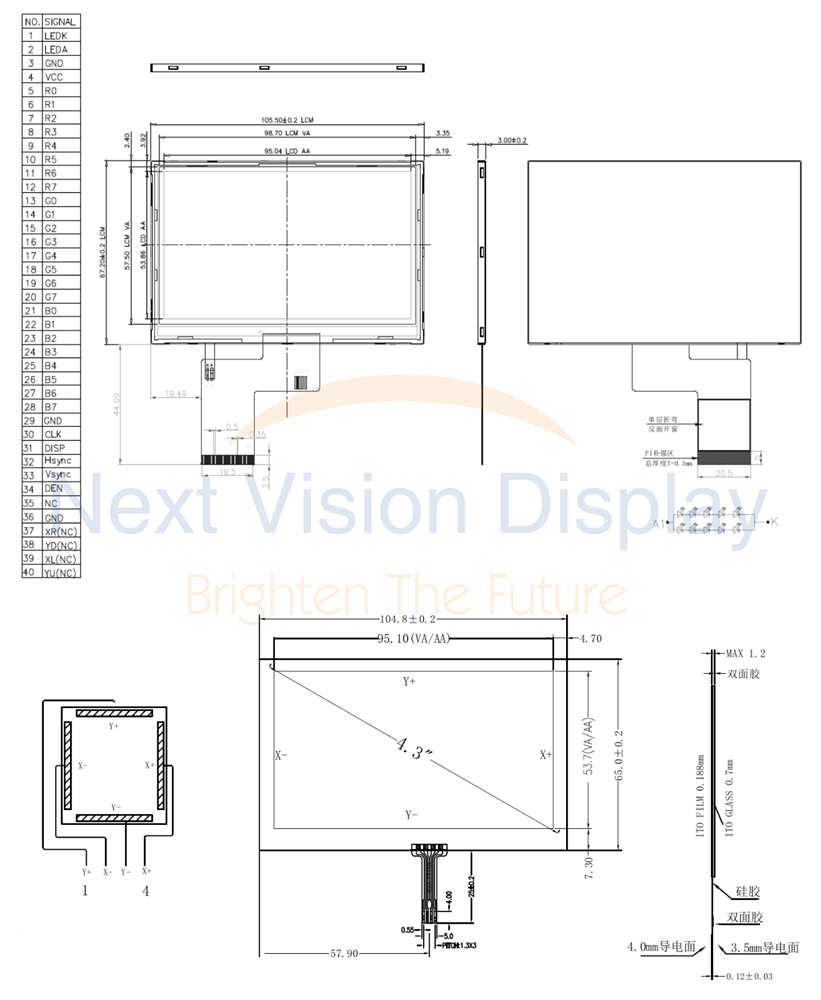

DRAWING



SPECIFICATIONS

Pin Description

Pin No.SymbolDescription
1 LEDK LED Backlight (Cathode)
2 LEDA LED Backlight (Anode)
3 GND Ground
4 VCC Power Supply
5 R0 Red Data
6 R1 Red Data
7 R2 Red Data
8 R3 Red Data
9 R4 Red Data
10 R5 Red Data
11 R6 Red Data
12 R7 Red Data
13 G0 Green Data
14 G1 Green Data
15 G2 Green Data
16 G3 Green Data
17 G4 Green Data
18 G5 Green Data
19 G6 Green Data
20 G7 Green Data
21 B0 Blue Data
22 B1 Blue Data
23 B2 Blue Data
24 B3 Blue Data
25 B4 Blue Data
26 B5 Blue Data
27 B6 Blue Data
28 B7 Blue Data
29 GND Ground
30 CLK Clock Signal
31 DISP Display On/Off
32 HSY NC Horizontal Sync Input in RGB Mode
33 VSY NC Vertical Sync Input in RGB Mode
34 DEN Data Enable
35 NC NC
36 GND Ground
37 XR(NC) Touch Plane PIN/NC
38 YD(NC) Touch Plane PIN/NC
39 XL(NC) Touch Plane PIN/NC
40 YU(NC) Touch Plane PIN/NC



General Features

ItemDisplay Panel
Display Mode Normally Black
Viewing Direction All O'Clock
Input Signals RGB
Outside Dimensions 105.5mm(W)*67.2mm(H)*3.0mm(T)
Effective Area -
Active Area 95.04mm(W)x53.856mm(H)
Number of Pixels 480xRGBx272 pixels
Pixel Pitch 0.198mm(H)x0.198mm(W)
Pixel Arrangement RGB Vertical stripes
Drive IC NV3047



Touch Panel Technical Parameters

ItemDescription
Structure

Film+Glass+FPC

Film Matte
Glass 500 R/(0.7mm)
Tail

FPC (pitch=1.0mm), 18.8mm. Total Thickness 1.2mm



Circuit Level

 DC5V 1mA
Insulation Resistance > 20M R (25V DC)
Linearity ≤±1.5%
Transparecy Rate >80%
Operation Pressure 50-100g
Life time 1,000,000 times
Working Temp. -20~+60°C
Storage Temp. -30~+70°C



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnitRemark
Power for Circuit Driving VDD   3.2   V
Power for Circuit Logic VCI   3.2   V
LC Operating Voltage Vop   3.3   V
LED Forward Voltage Vf - 21.0 - V
LED Forward Current Ir - 20 - mA
LCD Luminance BP - 300 - cd/m2
Storage Humidity HST 10 - 90 %RH At 25±5°C
Storage Temperature TST -30 - 80 °C
Operating Ambient Humidity HOP 10 - 90 %RH
Operating Ambient Temperature TOP -20 - 70 °C



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Power for Circuit Driving VDD   3.2   V
Power for Circuit Logic VCI   3.2   V
BLU Driving Logic Vbat - - - V
Logic Input Voltage Low Voltage VIL 0 － 0.2VDD V
High Voltage VIH 0.8VDD － VDD V
Logic Output Voltage Low Voltage VOL 0 － 0.1VDD V
High Voltage VOH 0.9VDD - VDD V
Power Consumption White Pw T.B.D. T.B.D. T.B.D. mW
Black Pb T.B.D. T.B.D. T.B.D. mW
Vertical Stripe Pv T.B.D. T.B.D. T.B.D. mW
SKU: NT043-R003ME
Brand: Next Vision Display
Disponibile: Si
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
25+
Prezzo
€23,90
€22,00
€18,60
€17,10

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€23,90 IVA esclusa

DRAWING



SPECIFICATIONS

Pin Description

Pin No.SymbolDescription
1 LEDK LED Backlight (Cathode)
2 LEDA LED Backlight (Anode)
3 GND Ground
4 VCC Power Supply
5 R0 Red Data
6 R1 Red Data
7 R2 Red Data
8 R3 Red Data
9 R4 Red Data
10 R5 Red Data
11 R6 Red Data
12 R7 Red Data
13 G0 Green Data
14 G1 Green Data
15 G2 Green Data
16 G3 Green Data
17 G4 Green Data
18 G5 Green Data
19 G6 Green Data
20 G7 Green Data
21 B0 Blue Data
22 B1 Blue Data
23 B2 Blue Data
24 B3 Blue Data
25 B4 Blue Data
26 B5 Blue Data
27 B6 Blue Data
28 B7 Blue Data
29 GND Ground
30 CLK Clock Signal
31 DISP Display On/Off
32 HSY NC Horizontal Sync Input in RGB Mode
33 VSY NC Vertical Sync Input in RGB Mode
34 DEN Data Enable
35 NC NC
36 GND Ground
37 XR(NC) Touch Plane PIN/NC
38 YD(NC) Touch Plane PIN/NC
39 XL(NC) Touch Plane PIN/NC
40 YU(NC) Touch Plane PIN/NC



General Features

ItemDisplay Panel
Display Mode Normally Black
Viewing Direction All O'Clock
Input Signals RGB
Outside Dimensions 105.5mm(W)*67.2mm(H)*3.0mm(T)
Effective Area -
Active Area 95.04mm(W)x53.856mm(H)
Number of Pixels 480xRGBx272 pixels
Pixel Pitch 0.198mm(H)x0.198mm(W)
Pixel Arrangement RGB Vertical stripes
Drive IC NV3047



Touch Panel Technical Parameters

ItemDescription
Structure

Film+Glass+FPC

Film Matte
Glass 500 R/(0.7mm)
Tail

FPC (pitch=1.0mm), 18.8mm. Total Thickness 1.2mm



Circuit Level

 DC5V 1mA
Insulation Resistance > 20M R (25V DC)
Linearity ≤±1.5%
Transparecy Rate >80%
Operation Pressure 50-100g
Life time 1,000,000 times
Working Temp. -20~+60°C
Storage Temp. -30~+70°C



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnitRemark
Power for Circuit Driving VDD   3.2   V
Power for Circuit Logic VCI   3.2   V
LC Operating Voltage Vop   3.3   V
LED Forward Voltage Vf - 21.0 - V
LED Forward Current Ir - 20 - mA
LCD Luminance BP - 300 - cd/m2
Storage Humidity HST 10 - 90 %RH At 25±5°C
Storage Temperature TST -30 - 80 °C
Operating Ambient Humidity HOP 10 - 90 %RH
Operating Ambient Temperature TOP -20 - 70 °C



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Power for Circuit Driving VDD   3.2   V
Power for Circuit Logic VCI   3.2   V
BLU Driving Logic Vbat - - - V
Logic Input Voltage Low Voltage VIL 0 － 0.2VDD V
High Voltage VIH 0.8VDD － VDD V
Logic Output Voltage Low Voltage VOL 0 － 0.1VDD V
High Voltage VOH 0.9VDD - VDD V
Power Consumption White Pw T.B.D. T.B.D. T.B.D. mW
Black Pb T.B.D. T.B.D. T.B.D. mW
Vertical Stripe Pv T.B.D. T.B.D. T.B.D. mW
Specifiche di prodotto
Brand Next Vision Display
Size 4.3"
Risoluzione 480x272
Area Attiva (mm) 95.04x53.86
Colore Full Color
Interfaccia Display RGB
Display IC No
Angolo Visione IPS
Frame No
Touch Panel Resistive
Temperatura O. (°C) -20~70
Connessione Display FPC for ZIF Connector
Nr. Pin 41
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Next Vision Display
Size 4.3"
Risoluzione 480x272
Area Attiva (mm) 95.04x53.86
Colore Full Color
Interfaccia Display RGB
Display IC No
Angolo Visione IPS
Frame No
Touch Panel Resistive
Temperatura O. (°C) -20~70
Connessione Display FPC for ZIF Connector
Nr. Pin 41
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
