NT035-C001DW

Immagine di NT035-C001DW

Immagine di NT035-C001DW

Immagine di NT035-C001DW

TFT 3.5" 320x480 Portrait LCD Module, Interface RGB, 250 cd/m², Wide View Angle (IPS), Capacitive touch panel I2C interface (GG, GT911 IC)

General Specifications

Color	262K
LCD Type	IPS-TFT-LCD
Viewing Angle	Wide viewing angle, 85/85/85/85(L/R/U/D)
Display Area(A.A)	48.96(W)*73.44(H)
Driver IC	ST7796-G4
Luminance	250cd/m²
LED Numbers	6 LEDS
Interface	RGB_24bit 40PIN_0.5mm

Electrical Characteristics

Analog Voltage	2.8V(Typ.)
Forward Voltage	9.3V(Typ.)
Forward Current	40mA
Power Consumption	372mW
Uniformity(with L/G)	80%
LED Life-Time	30000 Hr

Optical Characteristics

Contrast Ratio	700:1
Response Time	30ms
Transmittance	4.3%

Touch Parameters

Feature	Description
Type	CTP (Capacitive touch panel)
Structure	G+G
Outline Size (mm)	55.5(L)83.0(W)1.6(T)
View Area (mm)	49.36(L)*73.84(W)
Control Type	GT911
Surface Hardness	6H
Light Transmittance	≥85%
Operating Temperature	-20~70°C
Storage Temperature	-30~80°C

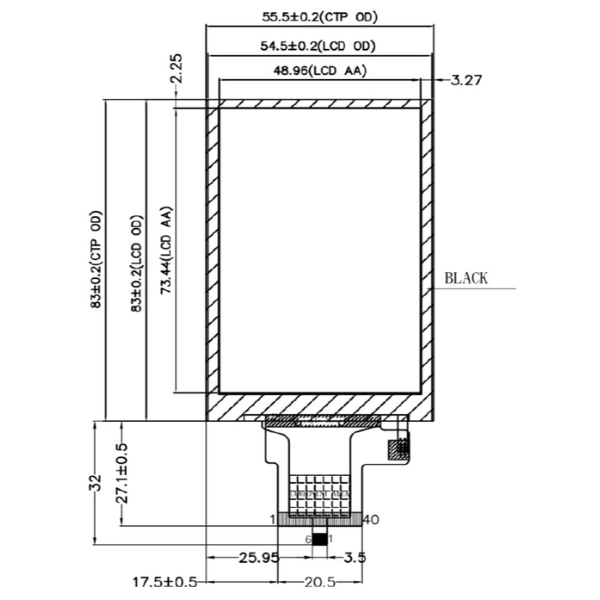

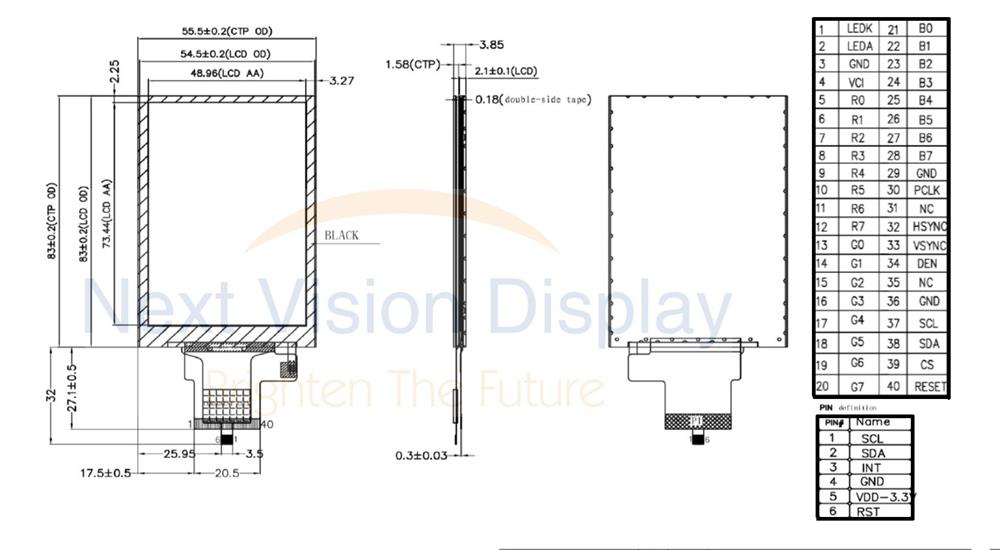

DRAWING

SKU: NT035-C001DW

Brand: Next Vision Display

Disponibile: Si

Si tratta dela prima recensione per questo prodotto

Kit Accessori

Display Connector
Touch-Panel Connector

Prezzi per quantità

Quantità

1+

5+

10+

Prezzo

€31,30

€27,40

€24,30

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€31,30 IVA esclusa

Overview
Specifiche
Download
Contattaci

General Specifications

Color	262K
LCD Type	IPS-TFT-LCD
Viewing Angle	Wide viewing angle, 85/85/85/85(L/R/U/D)
Display Area(A.A)	48.96(W)*73.44(H)
Driver IC	ST7796-G4
Luminance	250cd/m²
LED Numbers	6 LEDS
Interface	RGB_24bit 40PIN_0.5mm

Electrical Characteristics

Analog Voltage	2.8V(Typ.)
Forward Voltage	9.3V(Typ.)
Forward Current	40mA
Power Consumption	372mW
Uniformity(with L/G)	80%
LED Life-Time	30000 Hr

Optical Characteristics

Contrast Ratio	700:1
Response Time	30ms
Transmittance	4.3%

Touch Parameters

Feature	Description
Type	CTP (Capacitive touch panel)
Structure	G+G
Outline Size (mm)	55.5(L)83.0(W)1.6(T)
View Area (mm)	49.36(L)*73.84(W)
Control Type	GT911
Surface Hardness	6H
Light Transmittance	≥85%
Operating Temperature	-20~70°C
Storage Temperature	-30~80°C

DRAWING

Specifiche di prodotto

Brand	Next Vision Display
Size	3.5"
Risoluzione	320x480
Area Attiva (mm)	48.96x73.44
Colore	Full Color
Interfaccia Display	RGB
Display IC	No
Angolo Visione	IPS
Frame	No
Touch Panel	Capacitive
Temperatura O. (°C)	-20~70
Connessione Display	FPC for ZIF Connector
Nr. Pin	40
Passo Pin	0.5mm
IC Controller Touch Panel	GT911
Preferred - Not Preferred	Preferred
