NT034RC002ML

TFT 3.4" 800x800, Round LCD Panel, Interface MIPI, IC ILI9881C, Wide View Angle (IPS), 350 cd/m², Standard Temp., Capacitive touch panel I2C interface (GFF, GT911 IC)

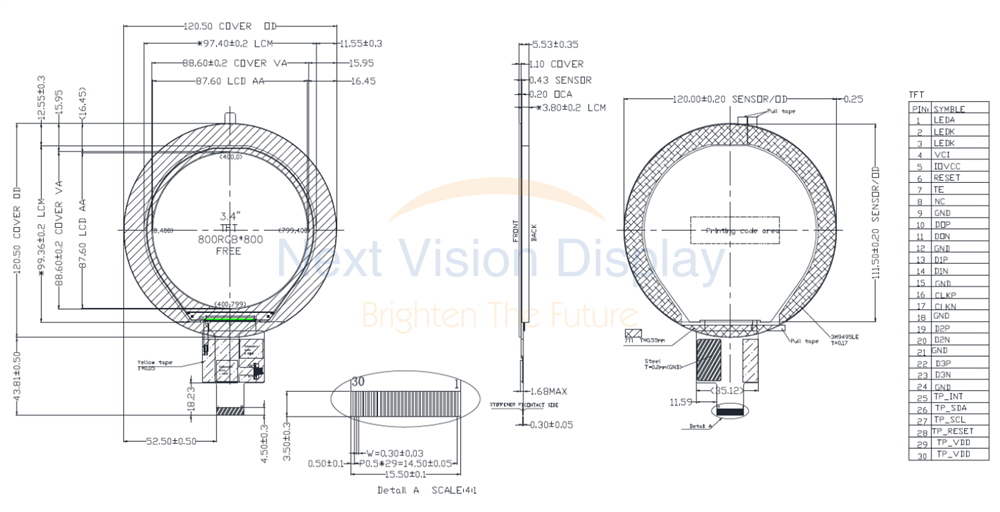

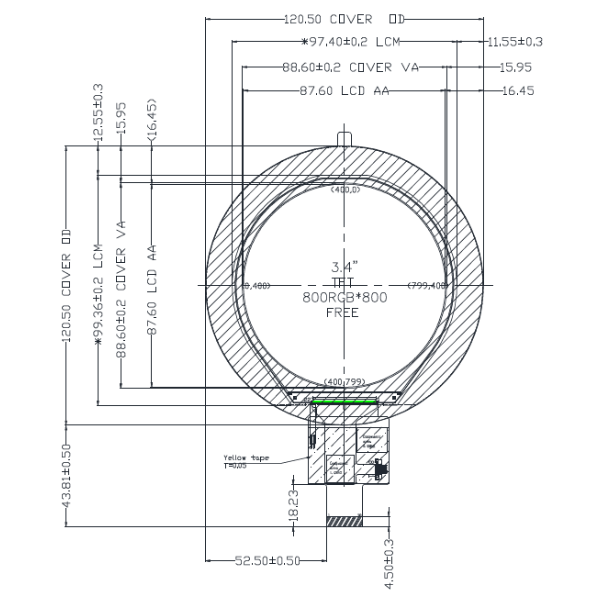

DRAWING

SPECIFICATIONS

LCD Parameter

Item	Contents	Unit
LCD Type	TFT	-
Display color	16.7M	-
Viewing Direction	ALL	O'Clock
Operating temperature	-20~+70	°C
Storage temperature	-30~+80	°C
Module size	3.4	inch
Active Area (WxH)	87.60x87.60	mm
Number of Dots	800x800	dots
TFT Controller	ILI9881C	-
Power Supply Voltage	3.3	V
Outline Dimensions	120.50x120.50x5.53	mm
Backlight	4X2-LEDs (white)	pcs
Weight	-	g
Interface	MIPI	-

Interface Description

Pin No.	Symbol	I/O	Function
1	LEDA	P	LED back light(Anode).
2-3	LEDK	P	LED back light(Cathode).
4	VCI	P	Analog Power supply.
5	IOVCC	P	Digital Power supply.
6	RESET	I	Reset pin, Active Low.
7	TE	O	Tearing effect output pin.
8	NC	-	No connect.
9	GND	P	Ground.
10	D0P	I	MIPI differential data0+ input.
11	D0N	I	MIPI differential data0- input.
12	GND	P	Ground.
13	D1P	I	MIPI differential data1+ input.
14	D1N	I	MIPI differential data1- input.
15	GND	P	Ground.
16	CLKP	I	MIPI CLOCK+differential signal input.
17	CLKN	I	MIPI CLOCK-differential signal input.
18	GND	P	Ground.
19	D2P	I	MIPI differential data2+ input.
20	D2N	I	MIPI differential data2- input.
21	GND	P	Ground.
22	D3P	I	MIPI differential data3+ input.
23	D3N	I	MIPI differential data3- input.
24	GND	P	Ground.
25	TP_INT (NC)	I	External Interrupt to the IC of CTP.
26	TP_SDA (NC)	I/O	CTP Serial in/out signal pin.
27	TP_SCL (NC)	I	CTP Serial interface clock pin.
28	TP_RESET (NC)	I	CTP Reset pin.
29	TP_VCI (NC)	P	CTP Analog or digital supply voltage.
30	TP_IOVCC (NC)	P	CTP I/O circuit or logic supply voltage.

Electrical Absolute Maximum Ratings (Vss=0V, Ta=25°C)

Item	Symbol	Min.	Max.	Unit	Note
Power Supply Voltage	VCI	-0.3	7.0	V	1, 2
	IOVCC	-0.3	3.8
	VGH	-0.3	+18
	VGL	-18	-0.3

Note:

1. If the module is above these absolute maximum ratings. It may become permanently damaged. Using the module within the following electrical characteristic conditions are also exceeded, the module will malfunction and cause poor reliability.

2. VDD >VSS must be maintained.

Electrical characteristics (Vss=0V, Ta=25°C)

Parameter		Symbol	Condition	Min	Typ	Max	Unit	Note
Power supply		VCI	Ta=25°C	2.5	2.8	6.6	-	-
Power supply		IOVCC	Ta=25°C	1.65	1.8	3.6	V	-
Input voltage	'H'	V_IH	VDD=3.3V	0.7IOVCC	-	IOVCC	V	-
Input voltage	'L'	V_IL	VDD=3.3V	-0.3	-	0.3IOVCC	V	-
Output voltage	'H'	V_OH	IOH= -1.0mA	0.8IOVCC	-	IOVCC	V	-
Output voltage	'L'	V_OL	IOL= +1.0mA	0	-	0.2IOVCC	V	-
Current Consumption		I_CC	Ta=25°C	-	-	-	mA	2
Current Consumption		I_IOVCC	Ta=25°C	-	-	-	uA	2

Note:

1:When an optimum contrast is obtained in transmissive mode.

2: Tested in 11 chessboard pattern.

SKU: NT034RC002ML

Brand: Next Vision Display

Disponibile: Si

Si tratta dela prima recensione per questo prodotto

Kit Accessori

Display Connector

Prezzi per quantità

Quantità

Prezzo

€51,90

€43,30

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€51,90 IVA esclusa
