    TFT 2" 240x320 Portrait LCD Panel, Interface RGB, 250 cd/m2, Resistive Touch Panel
    Cod.: NT020-R001DW

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €12,60
    €11,30
    €10,60

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €12,60 IVA esclusa
    i h

    General Specification

    Color 262K
    LCD Type IPS-TFT-LCD
    Viewing Angle Wide viewing angle, 85/85/85/85(L/R/U/D)
    Display Area(A.A) 30.60(W)*40.80(H)
    Driver IC ST7789V
    Luminance 250cd/m²
    LED Numbers 4 LEDS
    Driver Condition 2.8V(Type)
    Interface RGB_18bit 40PIN_0.5mm



    Electrical Characteristics

    Analog Voltage 2.8V(Typ.)
    Forward Voltage 12.8V(Typ.)
    Forward Current 20mA
    Uniformity(with L/G) 80%
    LED Life-Time 30000 Hr
    Power Consumption 256mW



    Optical Characteristics

    Contrast Ratio 800:1
    Response Time 30ms



    Touch Parameters

    Feature Description
    Type RTP (Resistive touch panel)
    Structure ITO Film + ITO Glass + FPC
    Outline Size (mm) 51.6(L)*36.0(W)*1.4(T)
    View Area (mm) 40.8(L)*30.6(W)
    Life Dot>1,000,000; Stroke>100,000
    Surface Hardness 3H
    Light Transmittance 78%±3%
    Operating Temperature -20~70°C
    Storage Temperature -30~80°C

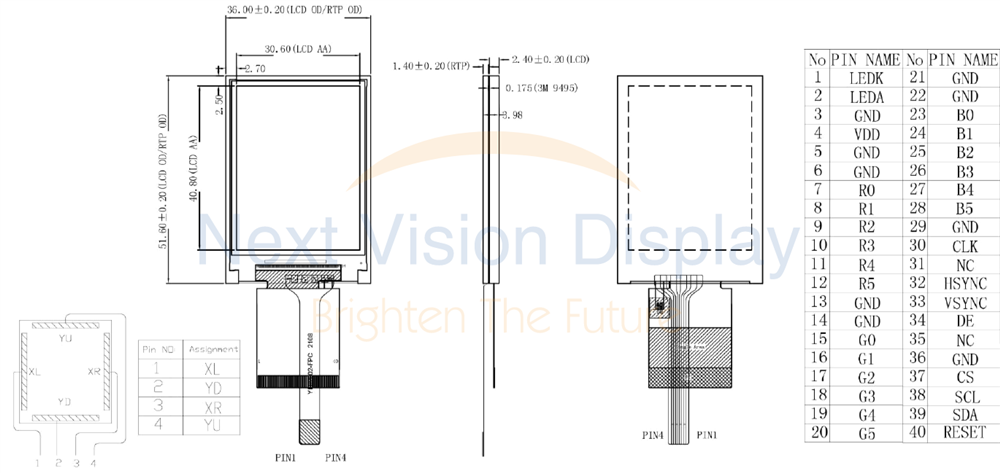

    DRAWING

    Specifiche di prodotto
    Size 2"
    Resolution 240x320
    Active Area (mm) 30.60x40.80
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle IPS
    Frame No
    Touch Panel Resistive
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
