NT015-N001DW

TFT 1.54" 240x240, Full Color, Interface MCU (SPI) IC ST7789V2, Wide View Angle (IPS), 550 cd/m2, No touch

General Specification

Color 262K
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 80/80/80/80(L/R/U/D)
Display Area(A.A) 27.72(W)*27.72(H)
Driver IC ST7789V2
Luminance 550cd/m²
LED Numbers 3 LEDS
Interface 4SPI 12PIN_0.5mm


Electrical Characteristics

Analog Voltage 2.8V(Typ.)
Forward Voltage 3.2V(Typ.)
Forward Current 60mA
Uniformity(with L/G) 80%
LED Life-Time 30000 Hr



Optical Characteristics

Contrast Ratio 900:1
Response Time 30ms
Transmittance 4.9%
Color Gamut 48%

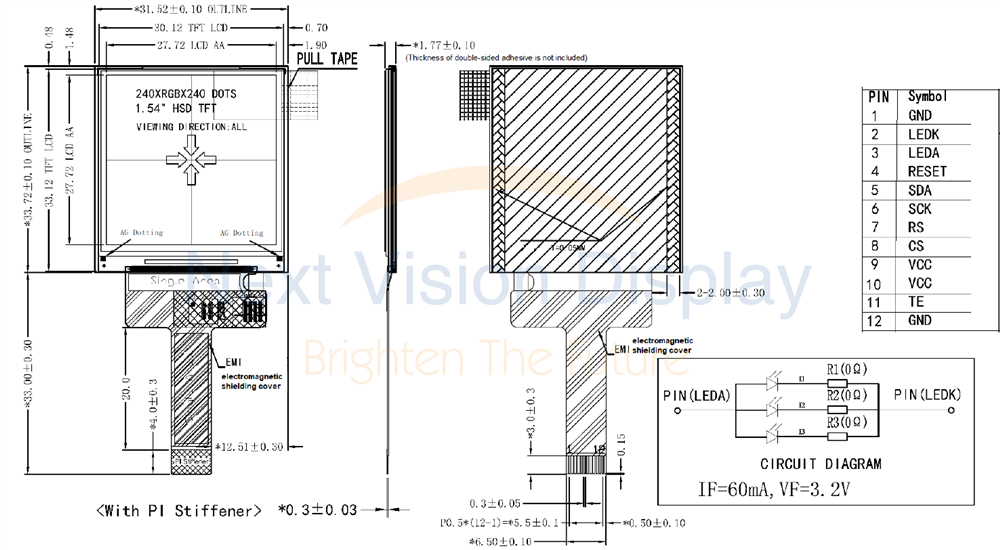

DRAWING

SKU: NT015-N001DW
Disponibile: Si
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€4,80
€4,20
€3,80

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€4,80 IVA esclusa

General Specification

Color 262K
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 80/80/80/80(L/R/U/D)
Display Area(A.A) 27.72(W)*27.72(H)
Driver IC ST7789V2
Luminance 550cd/m²
LED Numbers 3 LEDS
Interface 4SPI 12PIN_0.5mm


Electrical Characteristics

Analog Voltage 2.8V(Typ.)
Forward Voltage 3.2V(Typ.)
Forward Current 60mA
Uniformity(with L/G) 80%
LED Life-Time 30000 Hr



Optical Characteristics

Contrast Ratio 900:1
Response Time 30ms
Transmittance 4.9%
Color Gamut 48%





DRAWING

Specifiche di prodotto
Brand Next Vision Display
Size 1.54"
Risoluzione 240x240
Area Attiva (mm) 27.72x27.72
Colore Full Color
Interfaccia Display MCU (SPI)
Display IC ST7789V2
Angolo Visione IPS
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display FPC for ZIF Connector
Nr. Pin 12
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Next Vision Display
Size 1.54"
Risoluzione 240x240
Area Attiva (mm) 27.72x27.72
Colore Full Color
Interfaccia Display MCU (SPI)
Display IC ST7789V2
Angolo Visione IPS
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display FPC for ZIF Connector
Nr. Pin 12
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
