    Character LCD 3.8" 16x2, B/L yellow/green, STN yellow/green pos, Transflective, COB, 5V, Interface 6800, Font Eng/Jap, 6 O'clock
    Cod.: NH1602BN003WS

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €16,00
    €14,40
    €13,60
    €13,20

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €16,00 IVA esclusa
    i h



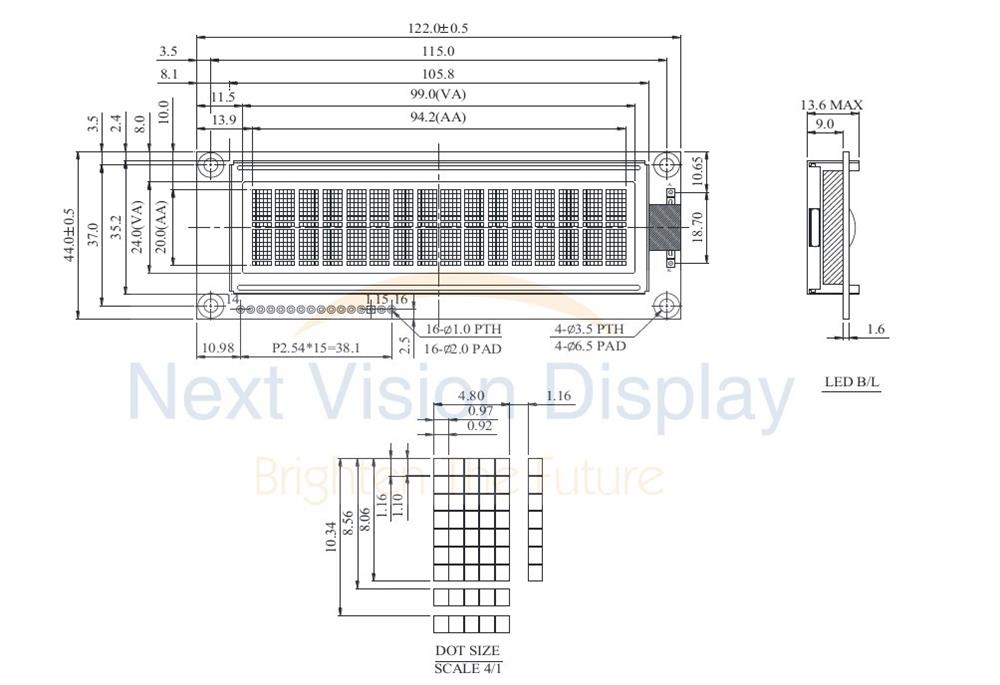

    DRAWING

    SPECIFICATIONS



    Interface

    LCM Pin Function

    Pin No.

    Symbol

    Level

    Description

    1

    VSS

    0V

    Ground

    2

    VDD

    5.0V

    Supply Voltage for logic

    3

    VO

    (Variable)

    Contrast Adjustment

    4

    RS

    H/L

    H: DATA, L: Instruction code

    5

    R/W

    H/L

    H: Read   L: Write

    6

    E

    H,H→L

    Chip enable signal

    7

    DB0

    H/L

    Data bus line

    8

    DB1

    H/L

    Data bus line

    9

    DB2

    H/L

    Data bus line

    10

    DB3

    H/L

    Data bus line

    11

    DB4

    H/L

    Data bus line

    12

    DB5

    H/L

    Data bus line

    13

    DB6

    H/L

    Data bus line

    14

    DB7

    H/L

    Data bus line

    15

    A

    -

    Power supply for B/L(+)

    16

    K

    -

    Power supply for B/L(-)



    General Specification

    Item

    Dimension

    Unit

    Number of Characters

    16 characters x 2Lines

    -

    Module dimension

    122.0 x 44.0 x 13.6(MAX)

    mm

    View area

    99.0 x 24.0

    mm

    Active area

    94.2 x 20.0

    mm

    Dot size

    0.92 x 1.1

    mm

    Dot pitch

    0.97 x 1.16

    mm

    Character size

    4.8 x 8.06

    mm

    Character pitch

    5.96 x 9.66

    mm

    LCD type

    STN Positive, Yellow Green Transflective

    (In LCD production, It will occur slightly color difference. We can only guarantee the same color in the same batch.)

    Duty

    1/16

    View direction

    6 o’clock

    Backlight Type

    LED, Yellow Green

    IC

    ST7066U

    Interface

    68 series



    Absolute Maximum Ratings

    Item

    Symbol

    Min

    Typ

    Max

    Unit

    Operating Temperature

    TOP

    -20

    -

    +70

    °C

    Storage Temperature

    TST

    -30

    -

    +80

    °C

    Input Voltage

    VI

    VSS

    -

    VDD

    V

    Supply Voltage For Logic

    VDD-VSS

    -0.3

    -

    7

    V

    Supply Voltage For LCD

    VDD-Vo

    -0.3

    -

    13

    V



    Electrical Characteristics

    Item

    Symbol

    Condition

    Min

    Typ

    Max

    Unit

    Supply Voltage For Logic

    VDD-VSS

    -

    4.5

    5.0

    5.5

    V

    Supply Voltage For LCD

    *Note

    VDD-V0

    Ta=-20°C
    Ta=25°C
    Ta=70°C

    -

    4.1

    3.2

    -

    4.2

    -

    5.2

    4.3

    -

    V
    V
    V

    Input High Volt.

    VIH

    -

    0.7 VDD

    -

    VDD

    V

    Input Low Volt.

    VIL

    -

    Vss

    -

    0.6

    V

    Output High Volt.

    VOH

    -

    3.9

    -

    VDD

    V

    Output Low Volt.

    VOL

    -

    0

    -

    0.4

    V

    Supply Current

    IDD

    VDD=5.0V

    1.2

    1.5

    1.8

    mA



    Optical Characteristics

    Item

    Symbol

    Condition

    Min

    Typ

    Max

    Unit

    View Angle

    θ

    CR≧2

    0

    -

    20

    ψ= 180°

    θ

    CR≧2

    0

    -

    40

    ψ= 0°

    θ

    CR≧2

    0

    -

    30

    ψ= 90°

    θ

    CR≧2

    0

    -

    30

    ψ= 270°

    Contrast Ratio

    CR

    -

    -

    3

    -

    -

    Response Time

    T rise

    -

    -

    150

    200

    ms

    T fall

    -

    -

    150

    200

    ms



    Specifiche di prodotto
    Size 3.8"
    Resolution 16x2
    Active Area (mm) 94.84x20.00
    Dot Size 0.92x1.10
    B/L color, LCD type B/L yellow/green, STN yellow/green pos
    Power supply 5V
    Display Interface 6800
    Display IC ST7066
    Constructive Structure COB
    View Angle 6H
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 16
    Pin Pitch 2.54mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
