    Character LCD 3.8" 16x2, B/L white, STN blue neg, COB, Interface 6800, 6H, No Touch, Standard Temp., W/ Frame
    Cod.: NH1602BN002ML

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €10,80
    €9,70
    €9,10
    €8,90

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €10,80 IVA esclusa
    i h

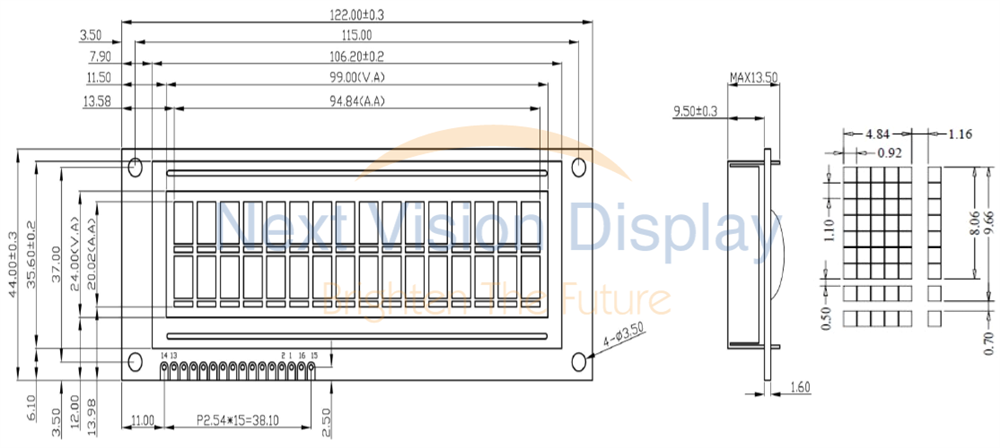

    DRAWING





    Specifiche di prodotto
    Size 3.8"
    Resolution 16x2
    Active Area (mm) 94.84x20.00
    Dot Size 0.92x1.10
    B/L color, LCD type B/L white, STN blue neg
    Power supply 5V
    Display Interface 6800
    Display IC SPLC780D
    Constructive Structure COB
    View Angle 6H
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 16
    Pin Pitch 2.54mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
