    Graphic LCD 4.05" 192x64, B/L white, FSTN white pos, Transflective, COB, 5V, Interface 6800, 6 O'clock, VNEG
    Cod.: NG19264BN001ML

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €28,00
    €25,20
    €23,70

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €28,00 IVA esclusa
    i h

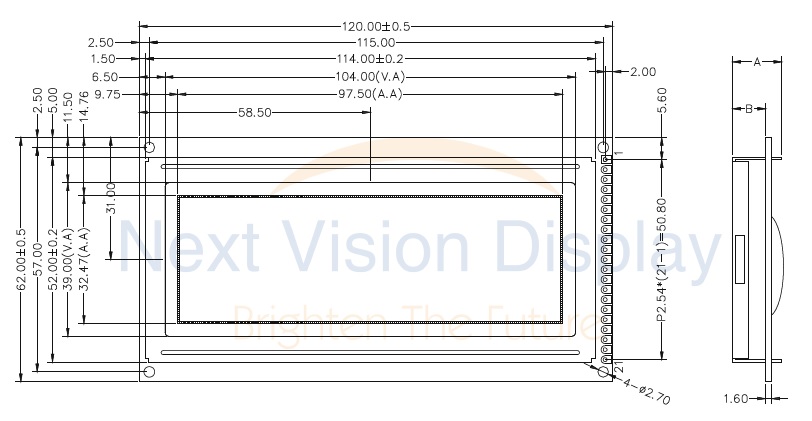

    DRAWING


    Specifiche di prodotto
    Size 4.05"
    Resolution 192x64
    Active Area (mm) 97.50x32.47
    Dot Size 0.46x0.46
    B/L color, LCD type B/L white, FSTN white pos
    Power supply 5V
    Display Interface 6800
    Display IC KS0107
    Constructive Structure COB
    View Angle 6H
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 21
    Pin Pitch 2.54mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
