DMG80480T050_09WTC

Immagine di DMG80480T050_09WTC Immagine di DMG80480T050_09WTC
TFT 5" 800x480, Intelligent T5L UART COB, High Brightness 825cd/m², Wide View Angle (IPS), Capacitive Touch Panel, Industrial Grade

Media



ASIC Information

T5L0 ASIC T5L0 ASIC Developed by DWIN. Mass production in 2020,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times



Display

Color 262K colors
LCD Type IPS, TFT LCD
Viewing Angle Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
Display Area（A.A） 108.0mm (W)×64.8mm (H)
Resolution 800×480Pixel
Backlight LED
Brightness 825nit



Voltage & Current

Power Voltage 6~36V
Operation Current VCC = +12V, Backlight on,210mA
VCC = +12V, Backlight off,100mA




Interface

LCM interface FPC40 0.5mm, RGB interface
RTP interface FPC4 1.0mm
Baudrate 3150~3225600bps
Output Voltage Output 1, Iout = 1mA;3.0~3.3 V
Output 0, Iout =-1mA;0~0.3 V
Input Voltage
（RXD）		 Input 1， Iin = 1mA；2.4~5.0V
  Input 0， Iin = -1mA；0~0.5V
User Interface 8Pin 2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
UART2: ON=TTL/CMOS; OFF=RS232
UART4: ON=TTL/CMOS; OFF=RS232(Only available after OS configuration)
Expand Flash Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes
NAND Flash
Buzzer 3V passive buzzer. Power: <1W
SD interface FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module
interface		 Wi-Fi module: connect to the cloud platform to update remotely
USB module: download files by USB flash disk
PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS
kernel and make the product return to normal

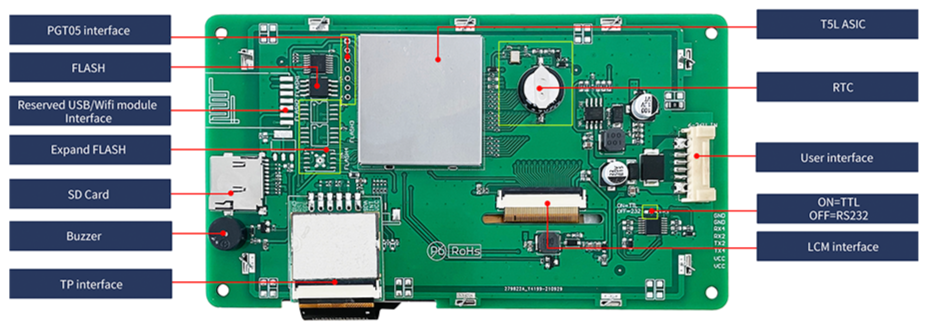

Display Connection





Accessories (Selectable in Above Menu)





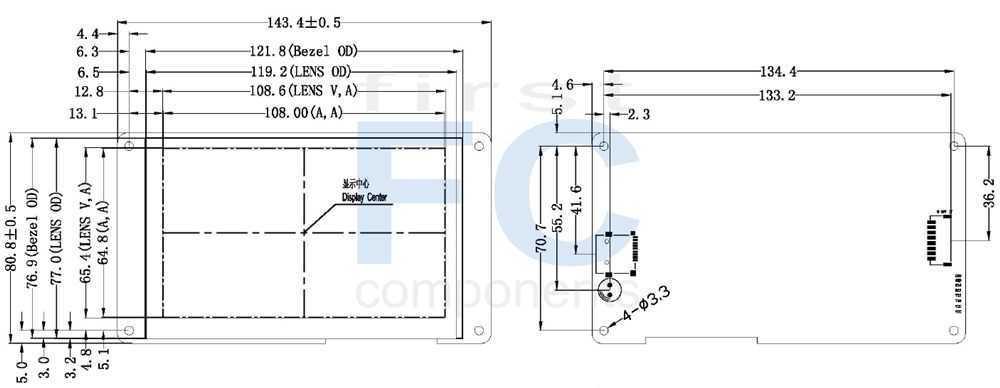

DRAWING




SKU: DMG80480T050_09WTC
Brand: DWIN
Disponibile: Si
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€69,50
€64,20
€61,80

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€69,50 IVA esclusa

Media



ASIC Information

T5L0 ASIC T5L0 ASIC Developed by DWIN. Mass production in 2020,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times



Display

Color 262K colors
LCD Type IPS, TFT LCD
Viewing Angle Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
Display Area（A.A） 108.0mm (W)×64.8mm (H)
Resolution 800×480Pixel
Backlight LED
Brightness 825nit



Voltage & Current

Power Voltage 6~36V
Operation Current VCC = +12V, Backlight on,210mA
VCC = +12V, Backlight off,100mA




Interface

LCM interface FPC40 0.5mm, RGB interface
RTP interface FPC4 1.0mm
Baudrate 3150~3225600bps
Output Voltage Output 1, Iout = 1mA;3.0~3.3 V
Output 0, Iout =-1mA;0~0.3 V
Input Voltage
（RXD）		 Input 1， Iin = 1mA；2.4~5.0V
  Input 0， Iin = -1mA；0~0.5V
User Interface 8Pin 2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
UART2: ON=TTL/CMOS; OFF=RS232
UART4: ON=TTL/CMOS; OFF=RS232(Only available after OS configuration)
Expand Flash Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes
NAND Flash
Buzzer 3V passive buzzer. Power: <1W
SD interface FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module
interface		 Wi-Fi module: connect to the cloud platform to update remotely
USB module: download files by USB flash disk
PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS
kernel and make the product return to normal



Display Connection





Accessories (Selectable in Above Menu)





DRAWING




Specifiche di prodotto
Brand DWIN
Size 5"
Risoluzione 800x480
Area Visiva (mm) 108.60x65.40
Area Attiva (mm) 108.00x64.80
Colore Full Color
Nr. Colori 262K
Sistema Operativo DGUSII OS
Alimentazione 12V
Interfaccia Display UART(TTL)/RS232
Display IC DWIN ASIC T5L0
Angolo Visione IPS
Sunlight Readable High 601~1200cd/m²
Touch Panel Capacitive
Temperatura O. (°C) -20~70
