DMG64360T030_01WTC

TFT 3" 360x640, Intelligent T5L UART COB, 280cd/m², Wide View Angle (IPS), Capacitive Touch Panel, Industrial Grade

Display


Color 18-bit 6R6G6B
LCD Type IPS, TFT LC
Viewing Angle Wide viewing angle, 85°/85°/85°/85°(L/R/U/D)
Display Area 65.3mm (W)×36.7mm (H)
Resolution 360×640
Backlight LED
Brightness 280nit



Voltage & Current


Power Voltage 4.5~5.5V, typical value of 5V
Operation Current VCC=5V, max backlight
VCC=5V, backlight off



Interface

LCM interface FPC40_0.5mm, TTL
RTP interface 4Pin_1.0mm
Baudrate 3150~3225600bps, typical value of 115200bps
Output V Output 1,Iout = 1mA,3.0~3.3V
Output 0,Iout = -1mA,0~0.3V
Input V Input 1,Iin = 1mA,2.4~5.0V
Input 0,Iin = -1mA,0~0.5V
User Interface 10Pin_1.0mm socket for power supply & serial communication.
UART2: ON=TTL/CMOS; OFF=RS232
UART4: ON=TTL/CMOS; OFF=RS232(Only available after OS
configuration)
Expand Flash 16M Bytes NOR Flash, for fonts, pictures and audio files.
Rewrite cycle: over 100,000 times
SD interface FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s

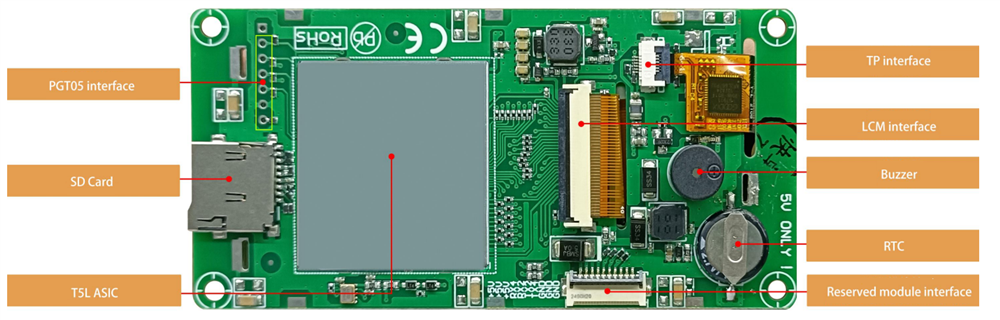

PGT05 interface When screen crashes by accident, use PGT05 to update DGUS kernel and make the product return to good.

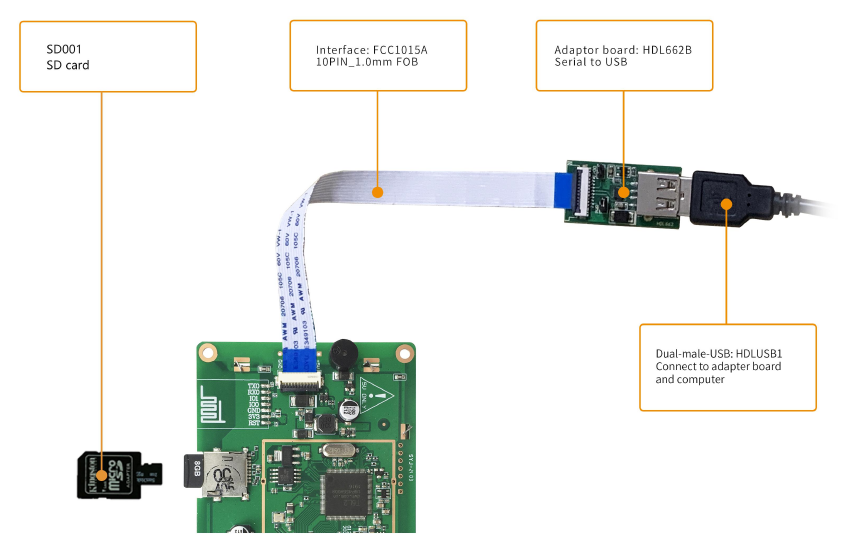

Display Connection





Accessories (Selectable in Above Menu)

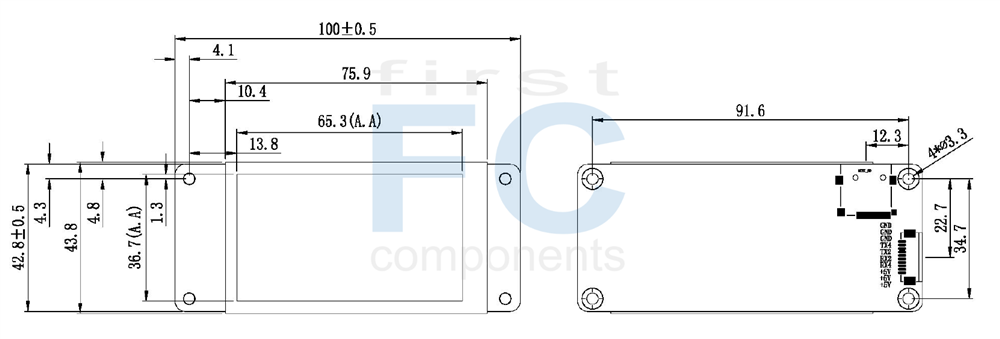

DRAWING





SKU: DMG64360T030_01WTC
Brand: DWIN
Disponibile: Si
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€48,80
€42,10
€37,80

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€48,80 IVA esclusa

Display


Color 18-bit 6R6G6B
LCD Type IPS, TFT LC
Viewing Angle Wide viewing angle, 85°/85°/85°/85°(L/R/U/D)
Display Area 65.3mm (W)×36.7mm (H)
Resolution 360×640
Backlight LED
Brightness 280nit



Voltage & Current


Power Voltage 4.5~5.5V, typical value of 5V
Operation Current VCC=5V, max backlight
VCC=5V, backlight off



Interface

LCM interface FPC40_0.5mm, TTL
RTP interface 4Pin_1.0mm
Baudrate 3150~3225600bps, typical value of 115200bps
Output V Output 1,Iout = 1mA,3.0~3.3V
Output 0,Iout = -1mA,0~0.3V
Input V Input 1,Iin = 1mA,2.4~5.0V
Input 0,Iin = -1mA,0~0.5V
User Interface 10Pin_1.0mm socket for power supply & serial communication.
UART2: ON=TTL/CMOS; OFF=RS232
UART4: ON=TTL/CMOS; OFF=RS232(Only available after OS
configuration)
Expand Flash 16M Bytes NOR Flash, for fonts, pictures and audio files.
Rewrite cycle: over 100,000 times
SD interface FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
PGT05 interface When screen crashes by accident, use PGT05 to update DGUS kernel and make the product return to good.



Display Connection





Accessories (Selectable in Above Menu)






DRAWING





Specifiche di prodotto
Brand DWIN
Size 3"
Risoluzione 360x640
Area Visiva (mm) 65.30x36.70
Area Attiva (mm) 65.30x36.70
Colore Full Color
Nr. Colori 262K
Sistema Operativo DGUSII OS
Alimentazione 5V
Interfaccia Display UART(TTL)/RS232
Display IC DWIN ASIC T5L0
Angolo Visione IPS
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Preferred - Not Preferred Preferred
