DMG24240C015_03WN

TFT 1.54" 240x240, Intelligent T5L UART COB, 300cd/m², Wide View Angle (IPS), No Touch, Commercial Grade

Media

ASIC Information

T5L0 ASIC

Developed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times

Display

Color	18-bit 6R6G6B
LCD Type	IPS
Viewing Angle	Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
Display Area（A.A）	27.5mm (W)×27.5mm (H)
Resolution	240x240
Backlight	LED
Brightness	400nit

Voltage & Current

Power Voltage	4.5~5.5V
Operation Current	VCC = +5V, Backlight on: 90mA
Operation Current	VCC = +5V, Backlight off: 60mA

Interface

LCM interface	FPC40_0.5mm, RGB interface
RTP interface	FPC4_1.0mm
CTP interface	6Pin_0.5mm, IIC interface
Baudrate	3150~3225600bps, typical value of 115200bps
Output Voltage	Output 1, Iout = -4mA;3.0~3.3 V
Output Voltage	Output 0, Iout =4mA;0~0.3 V
Input Voltage （RXD）	Input 1，2.4~5.0V
Input Voltage （RXD）	Input 0，0~0.5V
Interface	UART2：ON=TTL/CMOS; UART4：ON=TTL/CMOS; (OS configuration)
User interface	Interface Cable 10Pin_1.0mm
Flash	16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Buzzer	3V passive buzzer. Power: <1W
SD interface	FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
PGT05 interface	When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

Display Connection

Accessories (Selectable in Above Menu)

DRAWING

SKU: DMG24240C015_03WN

Brand: DWIN

Disponibile: Si

Si tratta dela prima recensione per questo prodotto

Kit Accessori

FFC Cable

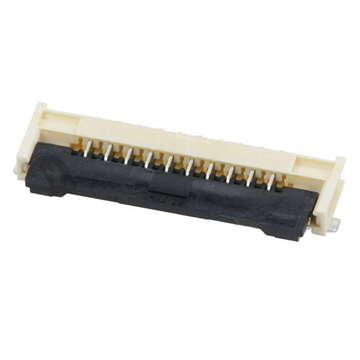

Display Connector
Added Board
Added Accessory 1
Added Accessory 2

Prezzi per quantità

Quantità

10+

Prezzo

€21,20

€18,60

€16,50

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€21,20 IVA esclusa

Overview
Specifiche
Download
Contattaci

Media

ASIC Information

T5L0 ASIC

Developed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times

Display

Color	18-bit 6R6G6B
LCD Type	IPS
Viewing Angle	Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
Display Area（A.A）	27.5mm (W)×27.5mm (H)
Resolution	240x240
Backlight	LED
Brightness	400nit

Voltage & Current

Power Voltage	4.5~5.5V
Operation Current	VCC = +5V, Backlight on: 90mA
Operation Current	VCC = +5V, Backlight off: 60mA

Interface

LCM interface	FPC40_0.5mm, RGB interface
RTP interface	FPC4_1.0mm
CTP interface	6Pin_0.5mm, IIC interface
Baudrate	3150~3225600bps, typical value of 115200bps
Output Voltage	Output 1, Iout = -4mA;3.0~3.3 V
Output Voltage	Output 0, Iout =4mA;0~0.3 V
Input Voltage （RXD）	Input 1，2.4~5.0V
Input Voltage （RXD）	Input 0，0~0.5V
Interface	UART2：ON=TTL/CMOS; UART4：ON=TTL/CMOS; (OS configuration)
User interface	Interface Cable 10Pin_1.0mm
Flash	16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Buzzer	3V passive buzzer. Power: <1W
SD interface	FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
PGT05 interface	When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

Display Connection

Accessories (Selectable in Above Menu)

DRAWING

Specifiche di prodotto

Brand	DWIN
Size	1.54"
Risoluzione	240x240
Area Visiva (mm)	28.70x28.70
Area Attiva (mm)	27.70x27.70
Colore	Full Color
Nr. Colori	262K
Sistema Operativo	DGUSII OS
Alimentazione	5V
Interfaccia Display	UART(TTL)
Display IC	DWIN ASIC T5L0
Angolo Visione	IPS
Touch Panel	No touch
Temperatura O. (°C)	-20~70
Preferred - Not Preferred	Preferred
