    CSHA101-0802A001R1AB-30

    Female Header - Straight Contact, Single Row, 8 Pins, Pitch 2.54mm, Gold Plated (Mating Contact Length: 4-6mm)
    Brand: Greenconn
    Cod.: CSHA101-0802A001R1AB-30
    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    50+
    Prezzo
    €0,70
    €0,63
    €0,59
    €0,58
    €0,57

    Per quantità maggiori di 599pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €0,70 IVA esclusa
    i h

    Specifications

    Current Rating:3.0Amp
    Insulation Resistance: 1000MΩMin
    Dielectric Withstanding Voltage: 600VAC
    Contact Resistance: 20mΩMax
    Operating Temperature: -40ºC to +105ºC



    Material

    Contact Material:Phosphor Bronze
    Insulation Material:PBT, Nylon, LCP, UL 94V-0

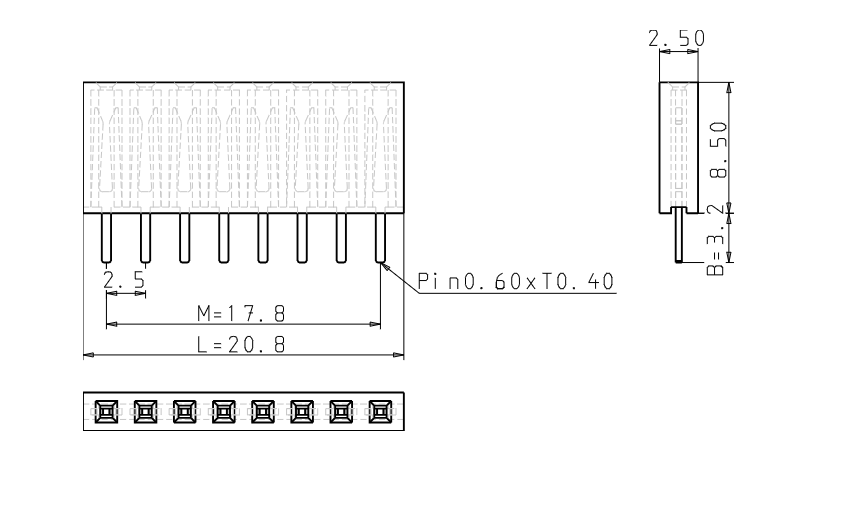

    Dimensions

    Specifiche di prodotto
    Constructive Structure Through Hole
    Pin Nr. 1*8
    Pin Pitch 2.54mm
    Contact Direction DIP
    *
    *
    *
    *
