CSFA101-1402A001R1AB-30

Female Header - Straight Contact, Single Row, 14 Pins, Pitch 2mm, Gold Plated (Mating Contact Length: 3-4mm)

Specifications

Current Rating:2.0Amp
Insulation Resistance: 1000MΩMin
Dielectric Withstanding Voltage: 500VAC
Contact Resistance: 20mΩMax
Operating Temperature: -40ºC to +105ºC



Material

Contact Material:Phosphor Bronze
Insulation Material:PBT, Nylon, LCP, UL 94V-0

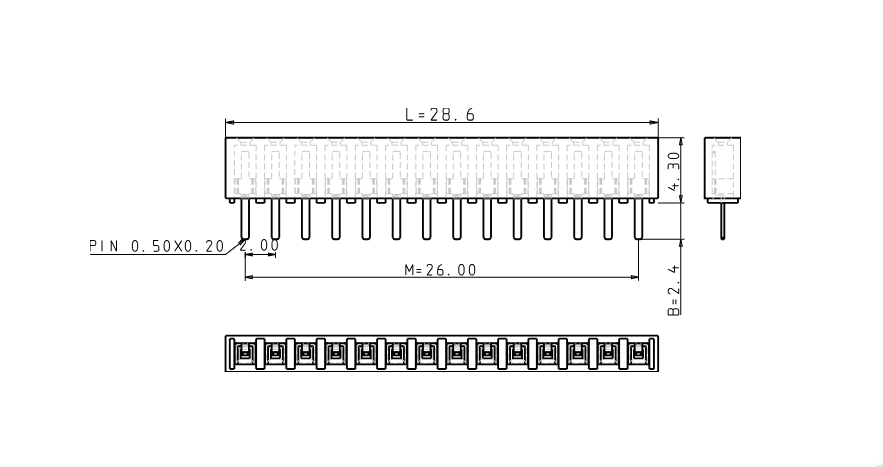

Dimensions

SKU: CSFA101-1402A001R1AB-30
Brand: Greenconn
Disponibile: No
Prezzi per quantità
Quantità
1+
5+
10+
25+
50+
100+
Prezzo
€1,10
€0,93
€0,83
€0,72
€0,62
€0,52

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€1,10 IVA esclusa

Specifications

Current Rating:2.0Amp
Insulation Resistance: 1000MΩMin
Dielectric Withstanding Voltage: 500VAC
Contact Resistance: 20mΩMax
Operating Temperature: -40ºC to +105ºC



Material

Contact Material:Phosphor Bronze
Insulation Material:PBT, Nylon, LCP, UL 94V-0



Dimensions

Specifiche di prodotto
Brand Greenconn
Struttura Costruttiva Through Hole
Nr. Pin 1*14
Passo Pin 2 mm
Direzione Contatti DIP
Download
Specifiche di prodotto
Brand Greenconn
Struttura Costruttiva Through Hole
Nr. Pin 1*14
Passo Pin 2 mm
Direzione Contatti DIP
