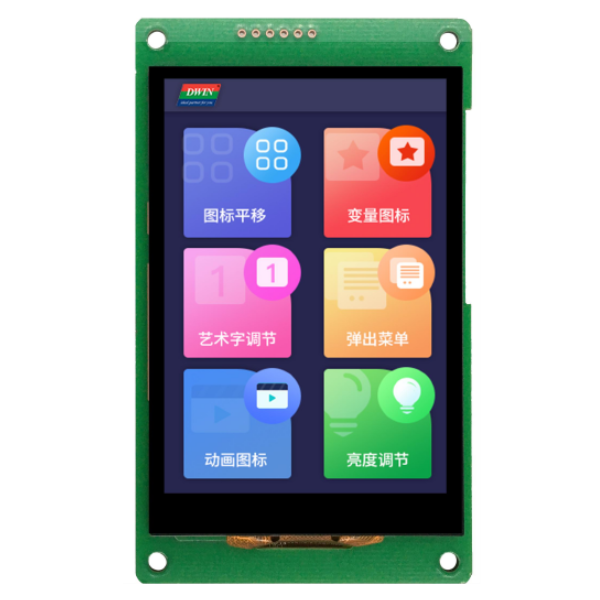

DMG48320C035_03WTC

TFT 3.5" 320x480, Intelligent T5L UART COB, 250cd/m², Wide View Angle (IPS), Capacitive Touch Panel, Commercial Grade

ASIC Information

T5L1 ASIC Developed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times



Display

LCD Type IPS, TFT LCD
Viewing Angle Wide viewing angle,85°/85°/85°/85°(L/R/U/D)
Resolution 320×480 pixels (0°/90°/180°/270°)
Color 24-bit 8R8G8B
Active Area (A.A.) 49.0mm (W)×73.4mm (H)
Backlight Mode LED
Backlight Service Life >20000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness)
Brightness 250nit
Brightness Control 0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range)
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.



Voltage & Current

Rated Power <5W
Operating Voltage 4.5~5.5V, typical value of 5V
Operating Current 180mA VCC=5V, max backlight
80mA VCC=5V, backlight off
Recommended power supply: 5V 1A DC



Interface

LCM interface FPC40_0.5mm, MIPI interface
TP interface Capacitive touch: IIC interface
Resistive touch: 4Pin_1.0mm interface
User interface 10Pin_1.0mm latching socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Flash 16 MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Buzzer 3V passive buzzer. Power: <1W
SD card interface FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module interface Wi-Fi module: connect to the cloud platform to update remotely
USB module: download files by USB flash disk

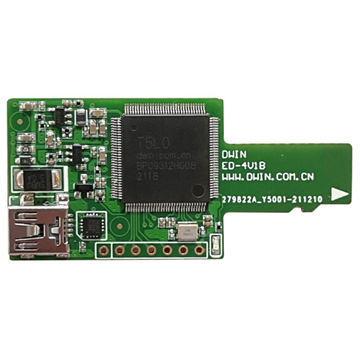

PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

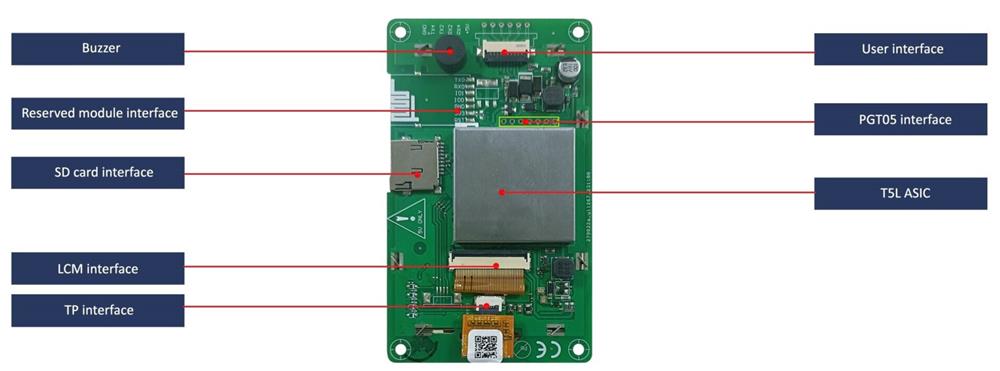

Display Connection

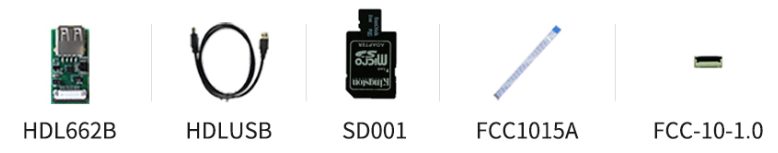

Accessories (Selectable in Above Menu)





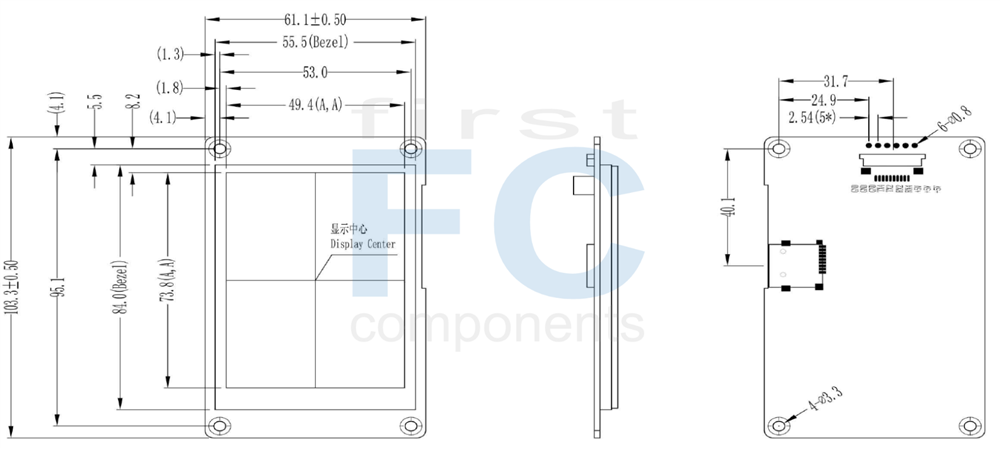

DRAWING



SKU: DMG48320C035_03WTC
Brand: DWIN
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€39.00
€33.70
€30.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€39.00 excl tax
