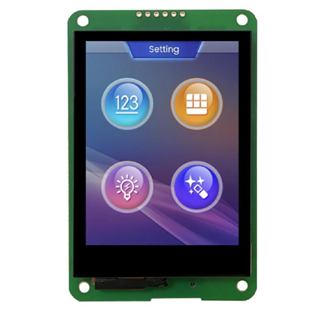

TFT 2.8" 240x320, Intelligent T5L UART COB, 250cd/m², Capacitive Touch Panel, Commercial Grade

LCD Type	TN, TFT LCD
Viewing Angle	Normal viewing angle, 70°/70°/50°/70° (L/R/U/D)
Resolution	240×320 pixels (0°/90°/180°/270°)
Color	18-bit 6R6G6B
Active Area (A.A.)	58.30mm (W)×44.20mm (H)
Backlight Mode	LED
Backlight Service Life	>20000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness)
Brightness	250nit
Brightness Control	0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range)
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.

Type	CTP (Capacitive touch panel)
Structure	G+G structure with surface cover of tempered glass
Touch Mode	Support point touch and drag
Surface Hardness	6H
Light Transmittance	Over 90%
Life	Over 1,000,000 times touch

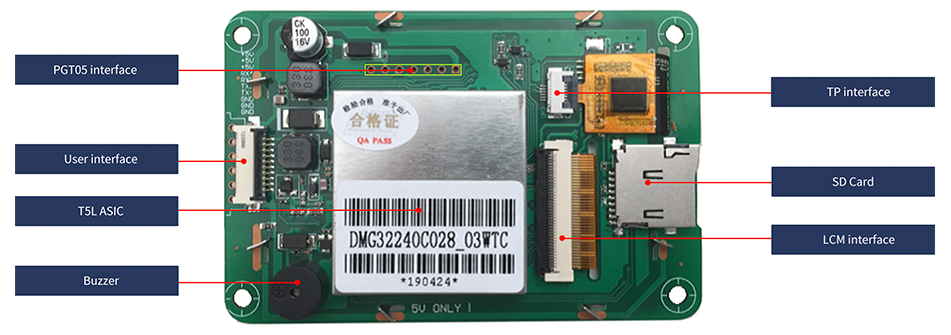

LCM interface	FPC40_0.5mm, RGB interface
TP interface	COB structure, IIC interface
User interface	10Pin_1.0mm latching socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Flash	16 MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Buzzer	3V passive buzzer. Power: <1W
SD card interface	FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
FSK camera interface	RCA-AV socket or 2Pin_5.08mm socket
PGT05 interface	When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

Type	CTP (Capacitive touch panel)
Structure	G+G structure with surface cover of tempered glass
Touch Mode	Support point touch and drag
Surface Hardness	6H
Light Transmittance	Over 90%
Life	Over 1,000,000 times touch

SKU: DMG32240C028_03WTC

Brand: DWIN

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector
Added Board
Added Accessory 1
Added Accessory 2

Price Breaks

Quantity

10+

Price

€36.60

€31.60

€28.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€36.60 excl tax

Overview
Specifications
Download
Contact Us

LCD Type	TN, TFT LCD
Viewing Angle	Normal viewing angle, 70°/70°/50°/70° (L/R/U/D)
Resolution	240×320 pixels (0°/90°/180°/270°)
Color	18-bit 6R6G6B
Active Area (A.A.)	58.30mm (W)×44.20mm (H)
Backlight Mode	LED
Backlight Service Life	>20000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness)
Brightness	250nit
Brightness Control	0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range)
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.

Type	CTP (Capacitive touch panel)
Structure	G+G structure with surface cover of tempered glass
Touch Mode	Support point touch and drag
Surface Hardness	6H
Light Transmittance	Over 90%
Life	Over 1,000,000 times touch

LCM interface	FPC40_0.5mm, RGB interface
TP interface	COB structure, IIC interface
User interface	10Pin_1.0mm latching socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Flash	16 MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Buzzer	3V passive buzzer. Power: <1W
SD card interface	FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
FSK camera interface	RCA-AV socket or 2Pin_5.08mm socket
PGT05 interface	When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

Type	CTP (Capacitive touch panel)
Structure	G+G structure with surface cover of tempered glass
Touch Mode	Support point touch and drag
Surface Hardness	6H
Light Transmittance	Over 90%
Life	Over 1,000,000 times touch

Rated Power

Operating Voltage

4.5~5.5V, typical value of 5V

Operating Current

VCC=5V, max backlight

VCC=5V, backlight off

Recommended power supply: 5V 1A DC

Products specifications

Brand	DWIN
Size	2.8"
Resolution	240x320
Viewing Area (mm)	58.30x44.20
Active Area (mm)	58.30x44.20
Color	Full Color
Nr. Of Color	262K
Operating System	DGUSII OS
Power supply	5V
Display Interface	UART(TTL)
Display IC	DWIN ASIC T5L0
View Angle	TN
Touch Panel	Capacitive
O. Temperature (°C)	-20~70
Preferred - Not Preferred	Preferred
