WL0F0007000A8GAADSK00-FC

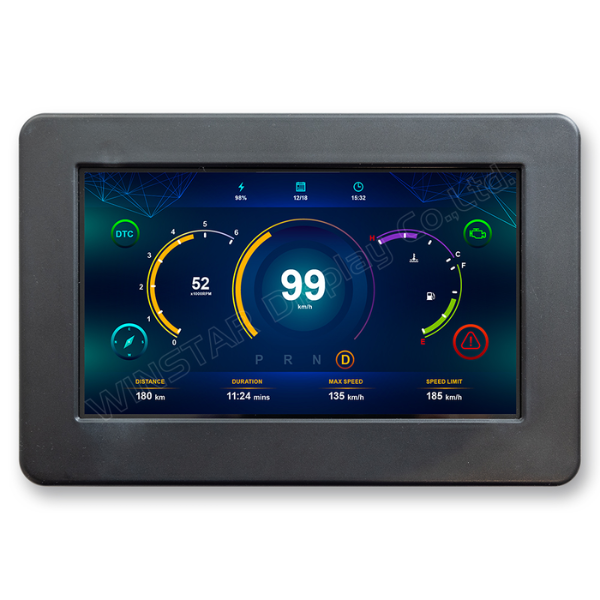

TFT 7" 1024x600, CAN Bus interface with CUSTOMIZABLE CAN ID & GPIO Support, 450cd/m², Wide View Angle (IPS), Capacitive touch panel (GG), with IP54 Plastic Housing

DESCRIPTION

WL0F0007000A8GAADSK00-FC is a 7 inch Smart Display CAN series TFT which is defined as a slave device, that is controlled by master device via CAN bus command to render display content on the display screen and return touch event data with protocol objects. WL0F0007000A8GAADSK00-FC is integrated with a standard TFT module WF70-1024600A8L#BP3-FC and 4-layers PCBA with built-in firmware. This 7 inch Smart Display CAN series TFT is an easy-to-use product which allows customers to develop projects rapidly in cost-effective way. This 7" Smart Display can use computer with USB2CAN dongle, MCU or Raspberry Pi interface (PiCAN2) as HOST platform.

Below are the features of 7 inch smart display:

+12V power supply input with 8V to 35V dynamic range power input, the power consumption is around 6 Watt.
Self testing after booting function.
CAN bus communication interface.
Supports Custom CAN ID protocol, default baud rate at 250Kbps.
Built in 16MB external flash memory to store the font and Object Dictionary Data.
Supports projected capacitive touch screen (PCAP).
Embedded buzzer controlled by Master Device.
HOST can be used on multiple platforms, such as Computer (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
GPIO PIN support with 3.3V TTL, max 5.5V tolance
The product, with its housing, meets the IP54 rating. It is protected against limited amounts of dust and other particles, and it is also safeguarded from water sprays from all directions.
Design the UI without writing a line of code by WINSTAR GUI builder! (►Link to GUI Builder Introduction)
Designed with STM32F series MCU and Support STMicroelectronics' (ST) software development tools.

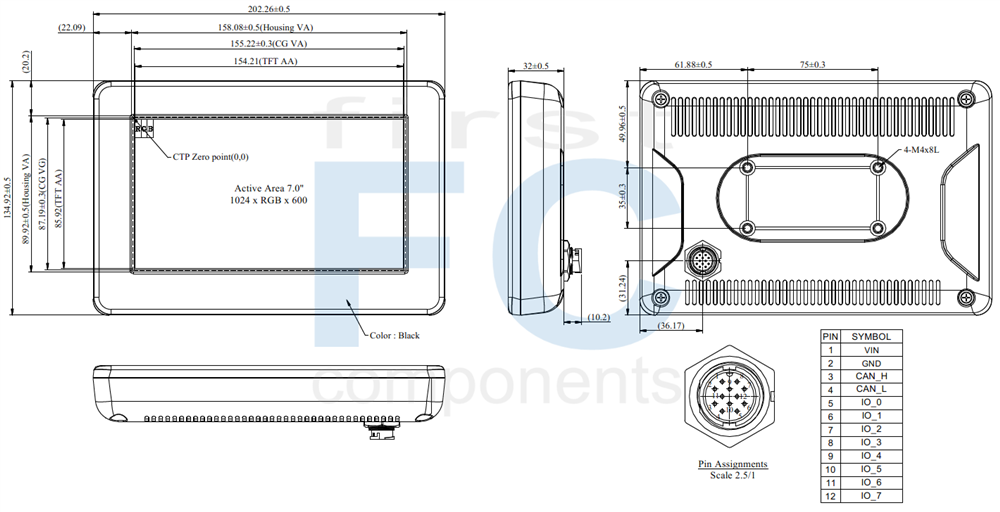

DRAWING

SPECIFICATIONS

General Specifications

General information

Item	Standard Value	Unit
Operating voltage	8~35	Vdc
Communication Interface	CAN bus	--
MCU	STM32F746	N/A
Flash Memory	16	MB
SDRAM Frequency	100	MHz
LCD display size	7	inch
Dot Matrix	1024 x RGB x 600(TFT)	dot
Module dimension	184.1(W) x 103.8(H) x 32(D)	mm
Active area	154.2144 x 85.92	mm
Dot pitch	0.1506 x 0.1432	mm
Brightness	Min: 400; Typ: 450	cd/m2
LCD type	TFT, Normally Black, Transmissive
View Direction	85/85/85/85(IPS)
Aspect Ratio	16:9
Touch Panel	Projected Capacitive Touch Screen, PCAP
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VCI	-	8	12	35	V
Supply Current	I(mA)	-	-	490	-	mA

BOM

Item	Description
LCM	WF70-1024600A8L#BP3-FC
PCBA	SV10007R00A8C00N0100

Interface Pin Function

Pin	Symbol	Function	Remark
1	VIN	Power supply V+	Input
2	GND	Power supply GND input	Input
3	CAN_H	CAN bus D+	I/O
4	CAN_L	CAN bus D-	I/O
5	IO_0	ADC,DAC,Timer,Event,I/O @3.3V	I/O
6	IO_1	ADC,Timer,Event,I/O @3.3V	I/O
7	IO_2	ADC,Timer,Event,I/O @3.3V	I/O
8	IO_3	ADC,Timer,Event,I/O @3.3V	I/O
9	IO_4	ADC,Timer,Event,I/O @3.3V	I/O
10	IO_5	ADC,Timer,Event,I/O @3.3V	I/O
11	IO_6	ADC,Timer,Event,I/O @3.3V	I/O
12	IO_7	RST,ADC,Event,I/O @3.3V	I/O

Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode. The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.

Splash Screen

The default splash image is shown below.

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.

Acquisition of Displayed Data

The Smart Display can acquire the data that it displays either using the CANopen SDO protocol, or using the CANopen PDO protocol. On Pre-operational mode, customers can set the coordinates of objects through SDO; On operational mode, customers can send data of objects through PDO.

Configuring the Display

Winstar Smart Display CAN series offers an out-of-the-box CANopen development experience that will lower customers' development costs and speed time-to-market expectations. The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas. The Smart Display comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will send over a new set of UI objects within 3~5 working days. The Smart Display is defined as a slave device, which is controlled by master device via CAN bus command to render display content on the display screen and return touch event data with protocol objects.
