WF50BTIAGDNT0#

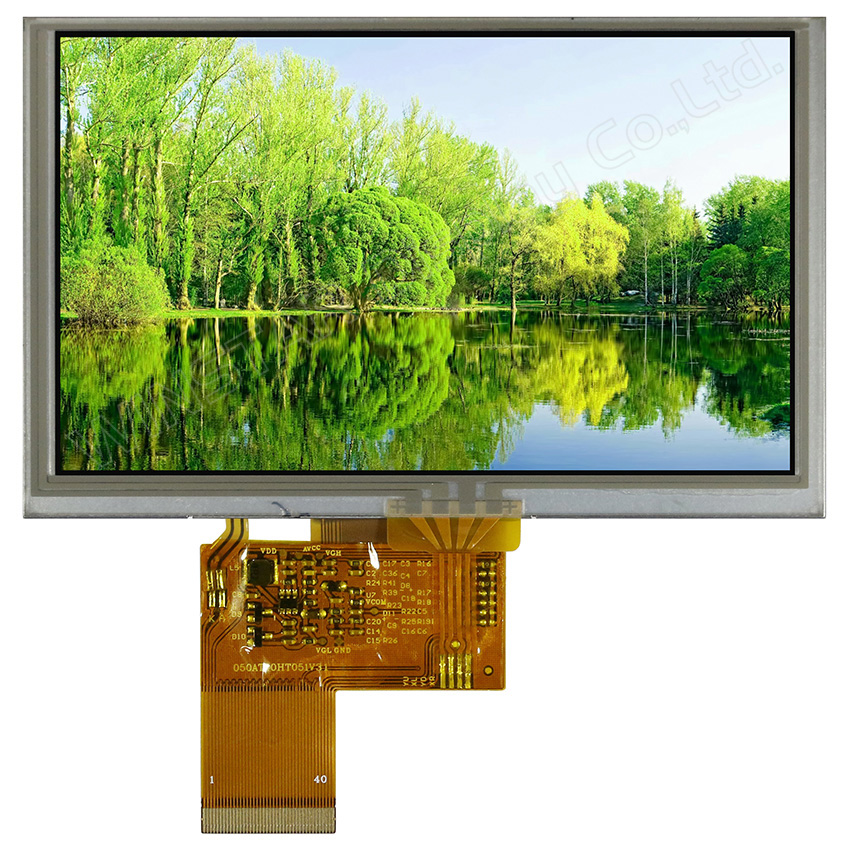

TFT 5" 800x480 LCD Panel, Interface RGB, 320cd/m², Resistive touch panel

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us for alternative parts at [email protected].

DESCRIPTION

Winstar Display 5 inch standard higher resolution TFT LCD model. The dimension is between our standard 4.3 inches and standard 5.7 inches TFT modules, but this module is with a better resolution. The resolution of our existing standard 4.3" is with 480x272 resolution and 5.7" TFT is with 320x240, as to the 5'' is with 800x480 resolution. Good option for customers while designing a new project which request a better resolution or competitive price. Outline dimension of 120.7 x 75.8 mm and AA size of 108.0 x 64.80 mm. Operating temperatures from –20℃ to +70℃; storage temperatures from -30℃ to +80℃.

DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition

FPC Connector is used for the module electronics interface.

Pin	Symbol	Function
1	VLED-	Power for LED backlight (Cathode)
2	VLED+	Power for LED backlight (Anode)
3	GND	Power Ground
4	VDD	Power voltage
5	R0	Red data (LSB)
6	R1	Red data
7	R2	Red data
8	R3	Red data
9	R4	Red data
10	R5	Red data
11	R6	Red data
12	R7	Red data(MSB)
13	G0	Green data(LSB)
14	G1	Green data
15	G2	Green data
16	G3	Green data
17	G4	Green data
18	G5	Green data
19	G6	Green data
20	G7	Green data(MSB)
21	B0	Blue data(LSB)
22	B1	Blue data
23	B2	Blue data
24	B3	Blue data
25	B4	Blue data
26	B5	Blue data
27	B6	Blue data
28	B7	Blue data(MSB)
29	GND	Power Ground
30	CLK	Sample clock
31	DISP	Display on/off
32	NC/HSync	No connection /Horizontal sync input
33	NC/VSync	No connection /Vertical sync input
34	DE	Data input enable
35	NC	No connection
36	GND	Power Ground
37	XR	Right electrode
38	YD	Down electrode
39	XL	Left electrode
40	YU	Top electrode

General Specifications

Item	Dimension	Unit
Size	5.0	inch
Dot Matrix	800 × RGB × 480	dots
Module dimension	120.7(W) × 75.8(H) × 4.3(D)	mm
Active area	108 (W) × 64.8(H)	mm
Dot pitch	0.135(W) × 0.135(H)	mm
LCD type	TFT, Normally White, Transmissive
View Direction	12 o'clock
Gray Scale Inversion Direction	6 o'clock
Aspect Ratio	16:9
Backlight Type	LED, Normally White
Touch Panel	Resistive touch panel
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Values			Unit
Item	Symbol	Min.	Typ	Max.	Unit
Power voltage	VDD	3.0	3.3	3.6	V
Current for Driver(Black)	IDD	-	110	170	mA
Input logic high voltage	VIH	0.7 VDD	-	VDD	V
Input logic low voltage	VIL	0	-	0.3 VDD	V

SKU: WF50-800480BD#001-FC
