WF35-320240PD#005-FC

Immagine di WF35-320240PD#005-FC Immagine di WF35-320240PD#005-FC
TFT 3.5" 320x240, LCD + IC Controller, Interface MCU (Parallel) IC RA8875, 300cd/m², Frame, Resistive touch panel

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION



3.5 inch Winstar TFT P Series family with Resistive Touch Screen on module. This model is built in with RA8875 controller board plus an integrated 36 pin-out connector on board.  All Winstar TFT P Series are built in with 8 bit or 16 bit parallel interface options and already pre-defined pin no. 33 ~ 36 as backlight supply; so there is no need to design extra backlight circuit.  All of Winstar TFT P Series modules are built in backlight driver IC and support Chinese character, backlight brightness adjustment and Flash Memory.

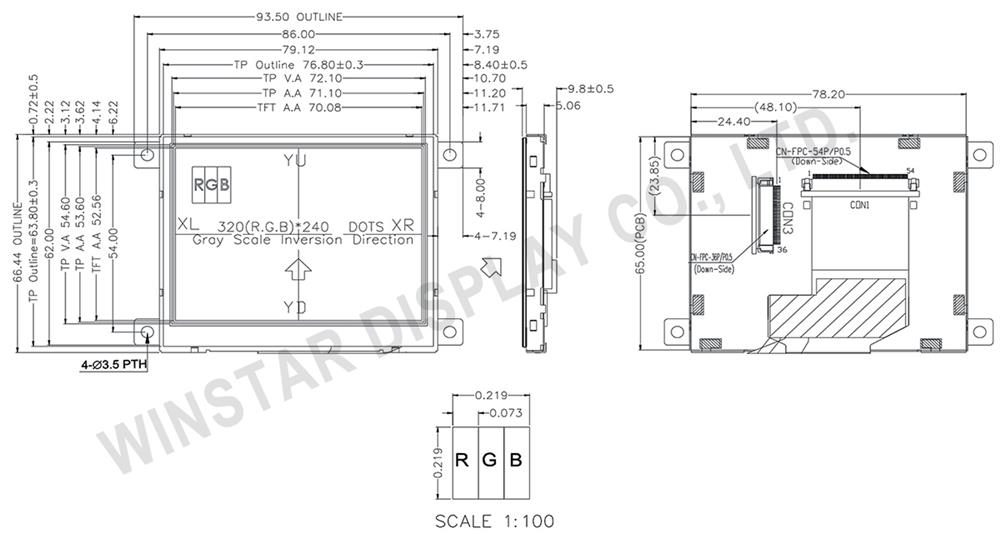

DRAWING







INTERFACE

PinSymbolFunction
1 GND System ground
2 VDD Power Supply : +3.3V
3 NC No connect
4 RS Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~22 DB0~DB15 Data bus
23 WAIT Wait Signal Output(H:active)
24 RTP_INT RTP Interrupt
25 CS Chip select
26 RST Hardware reset
27~32 NC No connect
33~34 VLED- Power for LED backlight cathode
35~36 VLED+ Power for LED backlight anode
SKU: WF35-320240PD#005-FC
Brand: Winstar
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€62,30
€56,10
€47,90

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€62,30 IVA esclusa

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION



3.5 inch Winstar TFT P Series family with Resistive Touch Screen on module. This model is built in with RA8875 controller board plus an integrated 36 pin-out connector on board.  All Winstar TFT P Series are built in with 8 bit or 16 bit parallel interface options and already pre-defined pin no. 33 ~ 36 as backlight supply; so there is no need to design extra backlight circuit.  All of Winstar TFT P Series modules are built in backlight driver IC and support Chinese character, backlight brightness adjustment and Flash Memory.


DRAWING







INTERFACE

PinSymbolFunction
1 GND System ground
2 VDD Power Supply : +3.3V
3 NC No connect
4 RS Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~22 DB0~DB15 Data bus
23 WAIT Wait Signal Output(H:active)
24 RTP_INT RTP Interrupt
25 CS Chip select
26 RST Hardware reset
27~32 NC No connect
33~34 VLED- Power for LED backlight cathode
35~36 VLED+ Power for LED backlight anode
Date Notice Link/Description
2024/08/26 EOL End production of Innolux TN Panel for WF35-320240L/M/P/Q/Y Families



For more details, please contact us @ [email protected]

Specifiche di prodotto
Brand Winstar
Size 3.5"
Risoluzione 320x240
Area Attiva (mm) 70.08x52.56
Colore Full Color
Interfaccia Display MCU (Parallel)
Display IC RA8875
Angolo Visione TN
Frame Yes
Touch Panel Resistive
Temperatura O. (°C) -20~70
Connessione Display ZIF Connector
Nr. Pin 36
Passo Pin 0.5mm
Preferred - Not Preferred Not Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 3.5"
Risoluzione 320x240
Area Attiva (mm) 70.08x52.56
Colore Full Color
Interfaccia Display MCU (Parallel)
Display IC RA8875
Angolo Visione TN
Frame Yes
Touch Panel Resistive
Temperatura O. (°C) -20~70
Connessione Display ZIF Connector
Nr. Pin 36
Passo Pin 0.5mm
Preferred - Not Preferred Not Preferred
