WEO2002L#AP5N00F00-FC

PMOLED 2.93" 20x2, Yellow color, COG, 5V, Interface 6800,8080,SPI,I2C, Glare (FPC per Zif)

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

Winstar Display standard 20x2 OLED COG Character module is built-in SSD1311 IC; it supports 6800/8080 8-bit parallel and I2C/4-wire serial interface.  We suggest customers to consider using this low power 20x2 character OLED to upgrade your existing LCD character display.

  • Faster response time "At +25 ℃ 10 μsec."
  • Unlimited viewing angle "Up to 175 degree"
  • Thin – No need of backlight, self emitting
  • High Brightness
  • High contrast ratio "Up to 2000:1"
  • Wide Operation Temperature
  • Lower power consumption - reduce CO2emissions

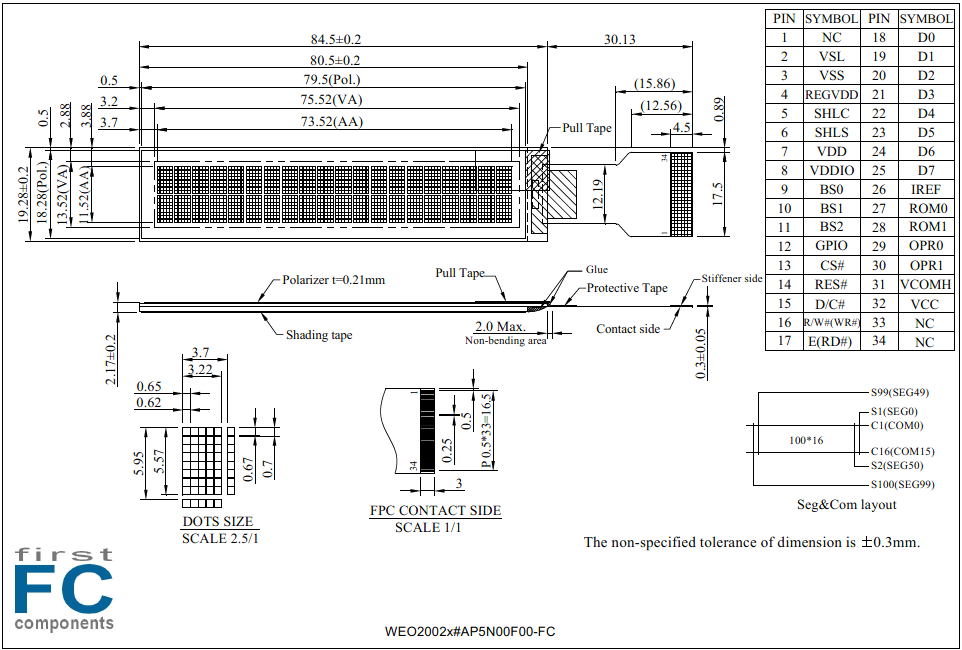

DRAWING






FPC options

DrawingFPC LengthPINpitchZIF FPC or HOTBAR FPCInterfaceFPC No.Create Date
FPC2070003111XXXXX01_WEO002002ALPP3N00001 34.9 31 0.7 HOTBAR FPC 6800, 8080, SPI, I2C FPC2070003111XXXXX01 20160817
FPC2005003421XXXXX00_WEO002002ASPP3N00F00 30.1 34 0.5 ZIF FPC 6800, 8080, SPI, I2C FPC2005003421XXXXX00 20180313



SKU: WEO2002L#AP5N00F00-FC
Brand: Winstar
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
25+
Prezzo
€14,90
€11,00
€10,60
€10,20

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€14,90 IVA esclusa

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

Winstar Display standard 20x2 OLED COG Character module is built-in SSD1311 IC; it supports 6800/8080 8-bit parallel and I2C/4-wire serial interface.  We suggest customers to consider using this low power 20x2 character OLED to upgrade your existing LCD character display.

  • Faster response time "At +25 ℃ 10 μsec."
  • Unlimited viewing angle "Up to 175 degree"
  • Thin – No need of backlight, self emitting
  • High Brightness
  • High contrast ratio "Up to 2000:1"
  • Wide Operation Temperature
  • Lower power consumption - reduce CO2emissions



DRAWING






FPC options

DrawingFPC LengthPINpitchZIF FPC or HOTBAR FPCInterfaceFPC No.Create Date
FPC2070003111XXXXX01_WEO002002ALPP3N00001 34.9 31 0.7 HOTBAR FPC 6800, 8080, SPI, I2C FPC2070003111XXXXX01 20160817
FPC2005003421XXXXX00_WEO002002ASPP3N00F00 30.1 34 0.5 ZIF FPC 6800, 8080, SPI, I2C FPC2005003421XXXXX00 20180313



Specifiche di prodotto
Brand Winstar
Size 2.93"
Risoluzione 20x2
Area Attiva (mm) 73.52x11.52
Dot Size 0.62x0.67
Polarizzatore Glare
Colore White
Alimentazione 5V
Interfaccia Display 6800/8080/SPI/I2C
Display IC SSD1311M1Z
Struttura Costruttiva COG
Frame No
Touch Panel No touch
Temperatura O. (°C) -40~80
Connessione Display FPC for ZIF Connector
Nr. Pin 34
Passo Pin 0.5mm
Preferred - Not Preferred Not Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 2.93"
Risoluzione 20x2
Area Attiva (mm) 73.52x11.52
Dot Size 0.62x0.67
Polarizzatore Glare
Colore White
Alimentazione 5V
Interfaccia Display 6800/8080/SPI/I2C
Display IC SSD1311M1Z
Struttura Costruttiva COG
Frame No
Touch Panel No touch
Temperatura O. (°C) -40~80
Connessione Display FPC for ZIF Connector
Nr. Pin 34
Passo Pin 0.5mm
Preferred - Not Preferred Not Preferred
