WG16032D5-YYH-VGB#

Graphic LCD 3.9" 160x32, B/L yellow/green,STN yellow/green pos, Transflective, COB, 5V, Interface 6800, 6 O'clock, VNEG

DESCRIPTION

WG16032D5 is a monochrome 160x32 graphic LCD module featuring a COB (Chip on Board) structure with an integrated PCB. It offers a 3.85-inch diagonal active display area and shares the same outline dimensions and pin configuration as the WH1602L character LCD. The outline size is 122.0 x 44.0 mm, viewing area is 99.0 x 24.0 mm, and the maximum thickness is 13.60 mm.

This model is built with the ST7920 controller IC and supports a 6800 8-bit parallel interface, with optional serial interfaces. WG16032D5 operates on a standard +5V power supply. It also includes a built-in internal voltage booster, allowing stable operation in 3.3V systems.

It includes built-in font libraries for Traditional Chinese and Simplified Chinese, making it suitable for multilingual display applications. Operating temperature range is -20℃ to +70℃, and storage temperature range is -30℃ to +80℃.

For +3.3V power supply option, please choose WG16032D3.

DRAWING

SPECIFICATIONS

Mechanical Data

Item	Dimension	Unit
Number of dots	160 x 32	－
Module dimension	122.0 x 44.0 x 13.6(Max)	mm
View area	99.0 x 24.0	mm
Active area	95.95 x 19.15	mm
Dot size	0.55 x 0.55	mm
Dot pitch	0.60 x 0.60	mm
LCD type	STN Positive, Yellow Green Transflective (In LCD production, it will occur slightly color difference. We can onlyguarantee the same color in the same batch.)
Duty	1/32
View direction	6 o'clock
Backlight Type	LED, Yellow Green
IC	ST7920
Interface	68series

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	T_OP	-20	－	+70	℃
Storage Temperature	T_ST	-30	－	+80	℃
Input Voltage	V_IN	-0.3	－	V_DD+0.3	V
Supply Voltage For Logic	V_DD-V_SS	-0.3	－	5.5	V
LCD Driver Voltage	V_LCD	-0.3	－	7.0	V

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	V_DD-V_SS	－	4.5	5.0	5.5	V
Supply Voltage For LCD *Note	V₀-V_SS	Ta=-20℃ Ta=25℃ Ta=+70℃	－ 4.6 －	－ 4.75 －	－ 4.9 －	V V V
Input High Volt.	V_IH	－	0.7V_DD	－	V_DD	V
Input Low Volt.	V_IL	－	-0.3	－	0.6	V
Output High Volt.	V_OH	－	0.8V_DD	－	V_DD	V
Output Low Volt.	V_OL	－	－	－	0.4	V
Supply Current	I_DD	V_DD=5.0V	4.48	5.15	5.73	mA

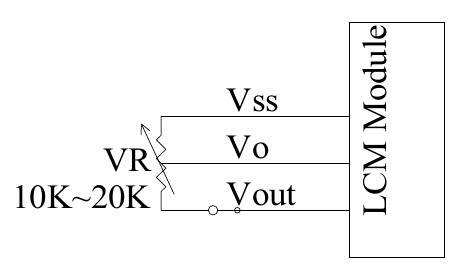

* Note: Please design the VOP adjustment circuit on customer's main board.

Interface Pin Function

Pin No.	Symbol	Level	Description
1	VSS	0V	Ground
2	VDD	5.0V	Supply voltage for logic
3	V_O	－	Supply voltage for LCD
4	RS	H/L	Register select signal
5	R/W	H/L	H: read data L: write data
6	E	H/L	Enable signal
7	DB0	H/L	Data bus line
8	DB1	H/L	Data bus line
9	DB2	H/L	Data bus line
10	DB3	H/L	Data bus line
11	DB4	H/L	Data bus line
12	DB5	H/L	Data bus line
13	DB6	H/L	Data bus line
14	DB7	H/L	Data bus line
15	Vout	－	Positive Voltage Output
16	NC	－	No connection

SKU: WG16032D5-YYH-VGB#

Brand: Winstar

Disponibile: Si

Si tratta dela prima recensione per questo prodotto

Kit Accessori

Display Connector

Prezzi per quantità

Quantità

10+

25+

Prezzo

€21,30

€17,00

€16,40

€15,90

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€21,30 IVA esclusa
