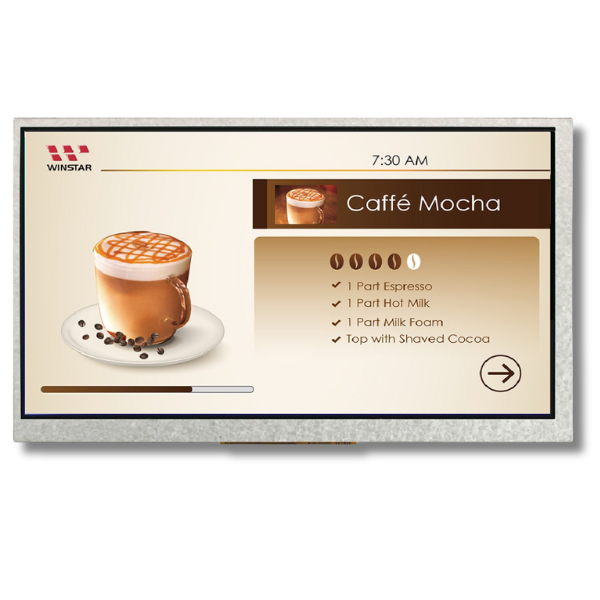

WF70-800480D3H#0S0-FC

TFT 7" 800x480, HDMI Interface, IC TFP401, High Brightness 900cd/m², No touch (No Raspberry Connectors)

DESCRIPTION

TFT 7.0”is a TN transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT_LCD module, It is usually designed for industrial application and this module follows RoHs.

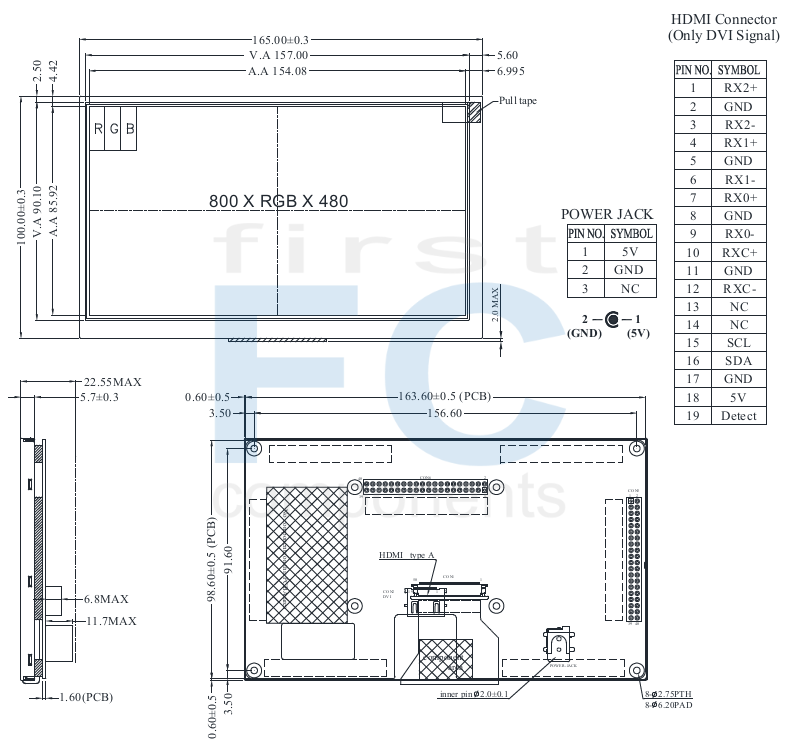

DRAWING

SPECIFICATIONS

General Specifications

Item	Dimension	Unit
Size	7.0	inch
Dot Matrix	800 × RGB × 480(TFT)	dots
Module dimension	165.0(W) × 100(H) x 22.55(D)	mm
Active area	154.08 × 85.92	mm
Dot pitch	0.1926 × 0.179	mm
LCD type	TFT, Normally White, Transmissive
View Direction	12 o'clock
Gray Scale Inversion Direction	6 o'clock
Aspect Ratio	16:9
Controller IC	TFP401 or equivalent
Backlight Type	LED, Normally White
TFT Interface	HDMI (only for DVI)
With/Without TP	Without TP
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Min	Typ	Max	Unit
Supply Voltage For LCM	VDD	4.9	5	5.1	V
Supply Current For LCM	IDD	－	850	1300	mA
LED life time	－	50,000	-	－	Hr

Interface

HDMI Connector (Only DVI Signal)

Pin No.	Symbol	I/O	Function
1	Rx2+	I	Channel-2 positive receiver input; low-voltage signal differential- input pair.
2	GND	P	Ground
3	Rx2-	I	Channel-2 negative receiver input; low-voltage signal differential- input pair.
4	Rx1+	I	Channel-1 positive receiver input; low-voltage signal differential- input pair.
5	GND	P	Ground
6	Rx1-	I	Channel-1 negative receiver input; low-voltage signal differential- input pair.
7	Rx0+	I	Channel-0 positive receiver input; low-voltage signal differential- input pair.
8	GND	P	Ground
9	Rx0-	I	Channel-0 negative receiver input; low-voltage signal differential- input pair.
10	RxC+	I	Clock positive receiver input; low-voltage signal differential- input pair.
11	GND	P	Ground
12	RxC-	I	Clock negative receiver input; low-voltage signal differential- input pair.
13-14	NC	-	No connection
15	SCL	I/O	DDC(Data Display Channel) Clock
16	SDA	I/O	DDC(Data Display Channel) Data
17	GND	P	Ground
18	5V	P	Power Supply
19	Detect	I/O	Hot plug detect

I: input, O: output, P: Power

POWER JACK

Pin No.	Symbol	I/O	Function
1	5V	P	Power Supply (5V)
2	GND	P	Ground
3	NC		No connection

SKU: WF70-800480D3H#0S0-FC
