TST0005R0B1241XXXX01

Resistive Touch panel 5", O.D. 119.70x74.80mm, 4w, Film-Glass structure, Soldering FPC (suitable for WST WF43G/V/U families)

General Specification

Item Description
Outline dimension 119.7x74.8mm
View area 111.7x65.91mm
Active area 109x65.51mm
Total thickness 1.5±0.15 (With Double side adhesive)mm
Length of FPC 22.3±0.5mm
Thickness of FPC terminal 0.10±0.05mm


DRAWING

SKU: TST0005R0B1241XXXX01
Brand: Winstar
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Prezzi per quantità
Quantità
1+
5+
10+
25+
Prezzo
€8,60
€6,30
€5,60
€5,40

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€8,60 IVA esclusa

General Specification

Item Description
Outline dimension 119.7x74.8mm
View area 111.7x65.91mm
Active area 109x65.51mm
Total thickness 1.5±0.15 (With Double side adhesive)mm
Length of FPC 22.3±0.5mm
Thickness of FPC terminal 0.10±0.05mm


DRAWING

Specifiche di prodotto
Brand Winstar
Size 5"
Area Attiva (mm) 109.00x65.51
Struttura Costruttiva GF, 4W
Connessione Display FPC for Soldering
Nr. Pin 4
Passo Pin 1.3mm
IC Controller Touch Panel -
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 5"
Area Attiva (mm) 109.00x65.51
Struttura Costruttiva GF, 4W
Connessione Display FPC for Soldering
Nr. Pin 4
Passo Pin 1.3mm
IC Controller Touch Panel -
Preferred - Not Preferred Preferred
Prodotti correlati
Immagine di WF50-800480FD#0P1-FC

WF50-800480FD#0P1-FC

TFT 5" 800x480 LCD Panel, Interface RGB, 350cd/m², Wide view angle (IPS), Resistive touch panel
Da €23,30 IVA esclusa
Immagine di WF50-800480FD#0PW0-FC

WF50-800480FD#0PW0-FC

TFT 5" 800x480 LCD Panel, Interface RGB, 500cd/m², Wide view angle (IPS), Super extended Temperature, No touch
Da €18,70 IVA esclusa
Immagine di WF50-800480FD#0SP1-FC

WF50-800480FD#0SP1-FC

TFT 5" 800x480 LCD Panel, Interface RGB (DE mode), High Brightness 750cd/m², Wide view angle (IPS), Resistive touch panel
Da €24,70 IVA esclusa

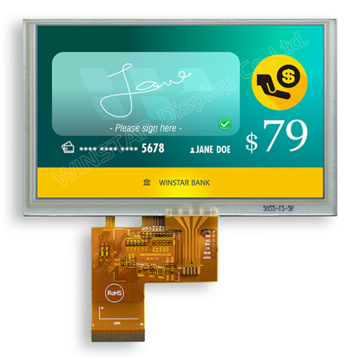

Immagine di WF50-800480FD#0SP1B-FC
